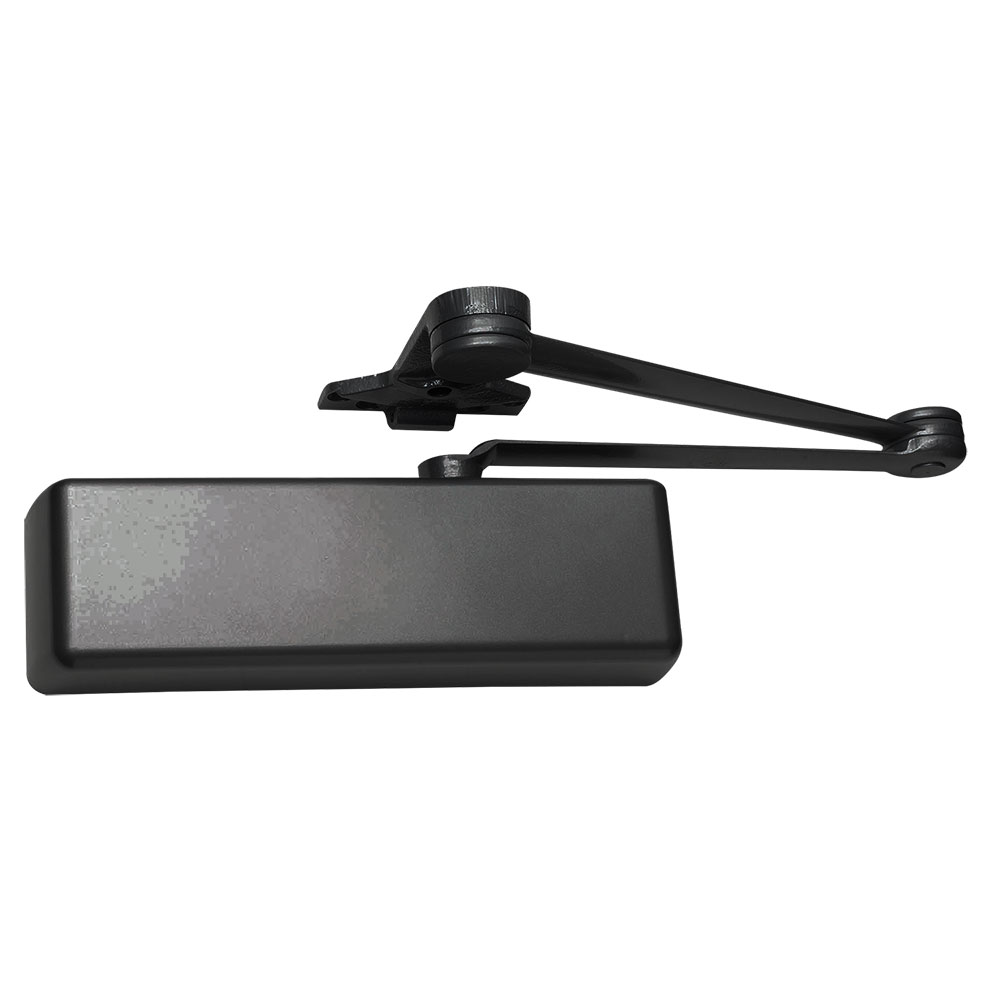

LCN 4111-SCUSH LH 693 Heavy-Duty Surface Closer GLBLK

LCN 4111-SCUSH LH 693 Heavy Duty Surface Closer GLBLK is a Grade 1 surface door closer engineered for institutional and high-traffic environments. With its spring Cush-N-Stop arm and left-handed configuration, this closer offers exceptional performance and reliability. Designed for parallel arm mounting, it accommodates a 110-degree swing and is adjustable for door sizes ranging from 1 to 5. Constructed from durable cast iron, the 4111 Series features an extra-duty forged steel standard arm that ensures longevity under rigorous use. Its full plastic cover in a sleek black finish not only adds to its aesthetic appeal but also enhances its resilience against the elements. The closer is equipped with all-weather fluid, making it suitable for various climates. Installation is quick and straightforward, thanks to the included 4110-201 fifth screw spacer and self-reaming screws. Additionally, the closer meets ADA requirements and is UL and cUL listed for self-closing doors without holdopen. With a limited warranty of 30 years, the LCN 4111-SCUSH ensures peace of mind for commercial applications. Choose this heavy-duty surface closer for a dependable solution that stands up to the demands of your busiest doors.

HeavyDuty Surface Closer GLBLK

Grade 1 Surface Door Closer, Spring Cush-N-Stop Arm, Push Side Parallel Arm Mounting, 110 Deg. Swing, Size 1 to 5, Full Plastic Cover, Black Finish, Left-Handed

The 4110 is LCN's best performing parallel arm mounted heavy duty surface door closer designed for institutional and other high traffic applications.

The 4110 Series is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

The 4110 Series is a cast iron closer that features an extra duty forged steel standard arm. The fast and accurate installation is also a feature that always impresses as well as the all weather fluid.

• Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
• Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts parallel arm, specify right or left swinging door
• 4111 cylinder meets ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• The 4110 Series is UL and cUL listed for self-closing doors without holdopen
• Tested and certified under ANSI Standard A156.4, grade one
