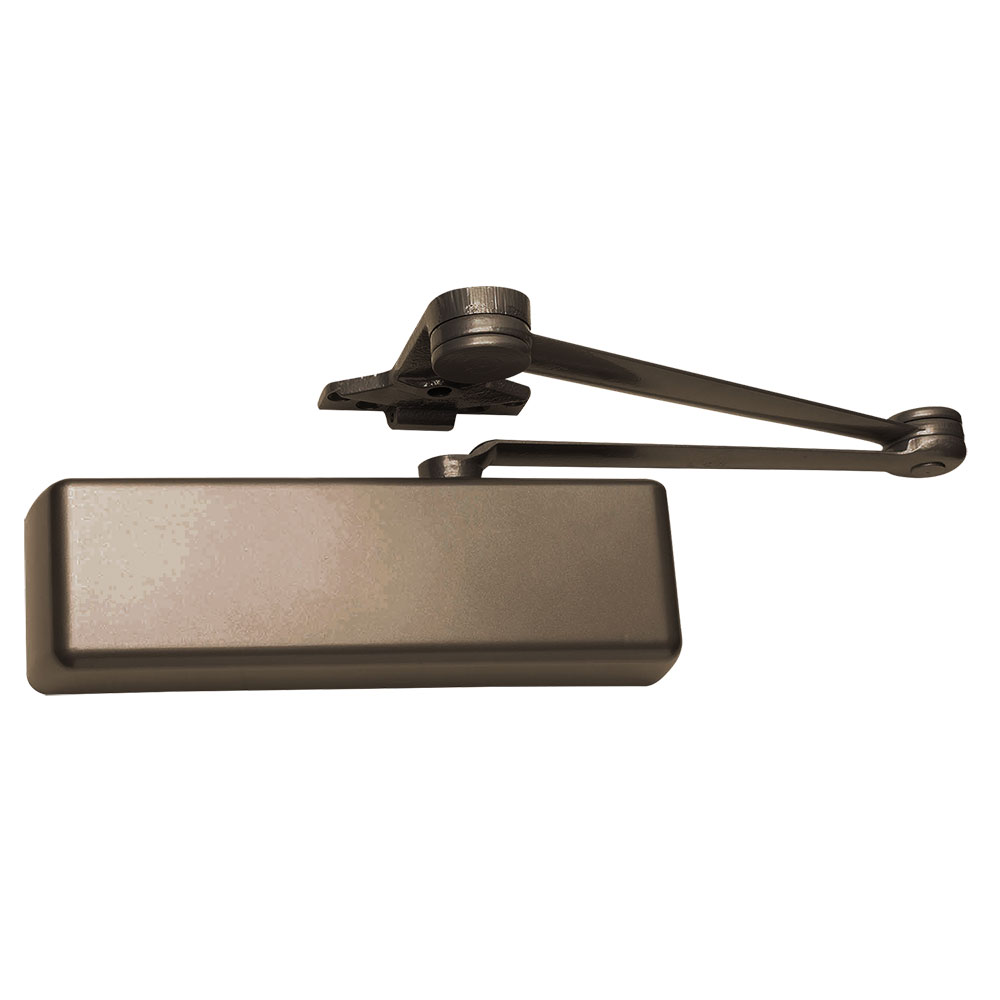

LCN 4111-SCUSH RH 695 MC Heavy-Duty Surface Closer DKBRZ

LCN 4111-SCUSH RH 695 MC HeavyDuty Surface Closer DKBRZ combines durability and performance, making it an ideal choice for institutional and high-traffic applications. This Grade 1 surface door closer features a spring cush-n-stop arm with push side parallel arm mounting, accommodating door swings of up to 110 degrees. Designed for versatility, it is adjustable from sizes 1 to 5, ensuring optimal functionality for both interior and exterior doors. Constructed with a cast iron body and an extra duty forged steel standard arm, this closer offers exceptional reliability and ease of installation. The full metal cover in a dark bronze finish not only enhances durability but also provides an aesthetically pleasing appearance. Additionally, the closer is equipped with cold weather fluid to ensure consistent performance in varying climates. The 4111 cylinder meets ADA requirements and is UL and cUL listed for self-closing doors without hold-open features, complying with ANSI Standard A156.4. With a 30-year limited warranty, this product is built to last, making it a smart investment for commercial applications. Available with optional custom finishes, the LCN 4111-SCUSH offers the flexibility to suit any project’s design needs while maintaining superior functionality.

HeavyDuty Surface Closer DKBRZ

Grade 1 Surface Door Closer, Spring Cush-N-Stop Arm, Push Side Parallel Arm Mounting, 110 Deg. Swing, Size 1 to 5, Full Metal Cover, Dark Bronze Finish, Right-Handed

The 4110 is LCN's best performing parallel arm mounted heavy duty surface door closer designed for institutional and other high traffic applications.

The 4110 Series is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

The 4110 Series is a cast iron closer that features an extra duty forged steel standard arm. The fast and accurate installation is also a feature that always impresses as well as the all weather fluid.

• Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
• Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts parallel arm, specify right or left swinging door
• 4111 cylinder meets ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• The 4110 Series is UL and cUL listed for self-closing doors without holdopen
• Tested and certified under ANSI Standard A156.4, grade one

Resources

• 4110 Series Surface Mounted Closers Cut Sheet
• LCN 4000 Series Catalog
• LCN 4010, 4020 & 4110 Door Closer w/ Fusible Link Arm Installation Guide
• LCN 4110 Drop Plates Installation Guide
• LCN 4110 Peel-N-Stick CUSH Installation Guide
• LCN 4110 Peel-N-Stick Installation Guide
• LCN 4110 Series Cut Sheet
• LCN Closers & Auto Operators Installation Guide
• LCN Drop Plates Installation Guide for 4110, 4110 CUSH, 4210, 4210 CUSH, 4110T, 4210T
• Von Duprin Finishes Chart
