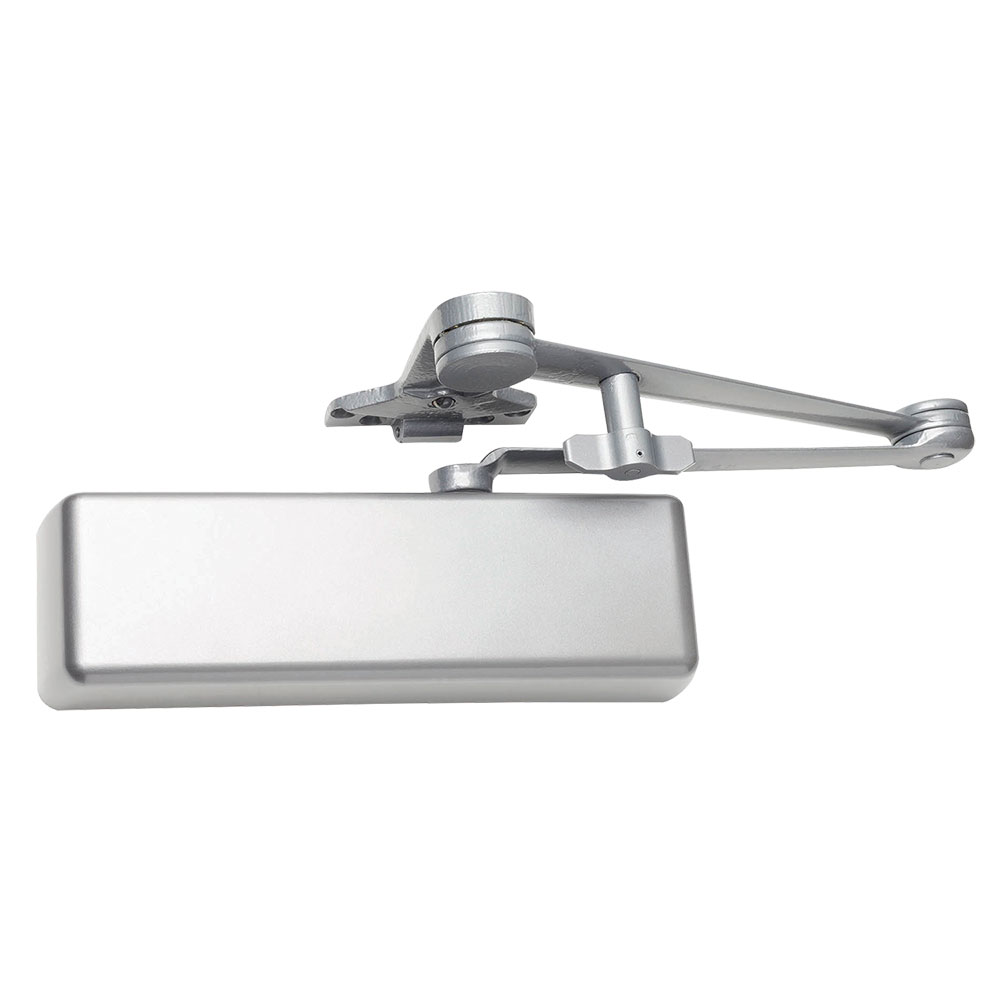

LCN 4111-SHCUSH LH 689 MC Heavy Duty Surface Door Closer AL

LCN 4111-SHCUSH LH 689 MC Heavy Duty Surface Closer AL is engineered for high-traffic environments, offering unparalleled performance in institutional settings. This Grade 1 surface door closer features a spring hold open cush-n-stop arm, designed for push side parallel arm mounting and a generous 110-degree swing, accommodating door sizes from 1 to 5. The full metal cover boasts an aluminum painted finish, ensuring durability and style. The 4110 series is known for its robust construction, featuring a cast iron body paired with an extra-duty forged steel arm for exceptional reliability. Installation is straightforward, thanks to included self-reaming and tapping screws and the 4110-201 fifth screw spacer. This closer is adjustable for various door sizes, making it versatile for both interior and exterior applications while meeting ADA requirements. Additionally, the LCN 4111 is UL and cUL listed for self-closing doors without hold-open functionality and complies with ANSI Standard A156.4, grade one certification. With options for a custom powder coat finish and corrosion-resistant SRI primer, this closer is built to withstand the elements. Offering a 30-year limited warranty, the LCN 4111-SHCUSH is a reliable choice for commercial door control.

Heavy Duty Surface Closer AL

Grade 1 Surface Door Closer, Spring Hold Open Cush-N-Stop Arm, Push Side Parallel Arm Mounting, 110 Deg. Swing, Size 1 to 5, Full Metal Cover, Aluminum Painted Finish, Left-Handed

The 4110 is LCN's best performing parallel arm mounted heavy duty surface door closer designed for institutional and other high traffic applications.

The 4110 Series is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

The 4110 Series is a cast iron closer that features an extra duty forged steel standard arm. The fast and accurate installation is also a feature that always impresses as well as the all weather fluid.

• Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
• Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts parallel arm, specify right or left swinging door
• 4111 cylinder meets ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• The 4110 Series is UL and cUL listed for self-closing doors without holdopen
• Tested and certified under ANSI Standard A156.4, grade one

Resources

• 4110 Series Surface Mounted Closers Cut Sheet
• LCN 4000 Series Catalog
• LCN 4010, 4020 & 4110 Door Closer w/ Fusible Link Arm Installation Guide
• LCN 4110 Drop Plates Installation Guide
• LCN 4110 Peel-N-Stick CUSH Installation Guide
• LCN 4110 Peel-N-Stick Installation Guide
• LCN 4110 Series Cut Sheet
• LCN Closers & Auto Operators Installation Guide
• LCN Drop Plates Installation Guide for 4110, 4110 CUSH, 4210, 4210 CUSH, 4110T, 4210T
• Von Duprin Finishes Chart
