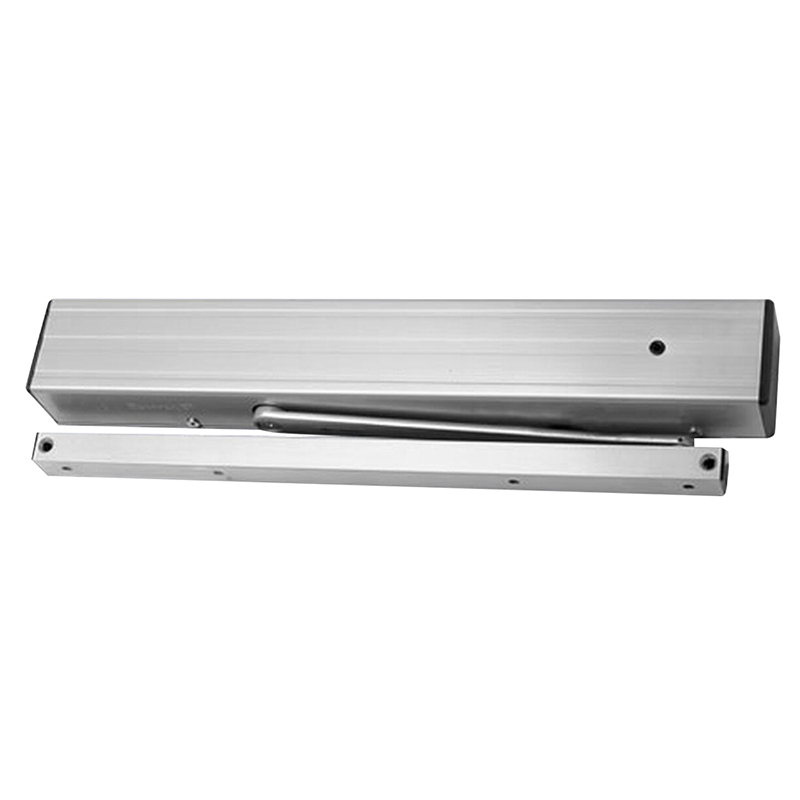

LCN 4412HSA-REG 24V LH 689 Sentronic AL Holder/Closer

LCN 4412HSA-REG 24V LH 689 Sentronic Holder/Closer AL combines advanced technology with robust construction, making it an ideal choice for high-traffic environments. This regular arm door closer is engineered with a built-in scanner that activates the hold-open feature, allowing pedestrians to pass through effortlessly. When the door is opened to 80 degrees or more, it remains electrically held open, significantly reducing wear on the hardware. Designed specifically for left-handed swinging doors, the 4410HSA features a selectable hold-open period of either 15 or 30 seconds, ensuring flexibility for various applications. It utilizes LCN’s heavy-duty 4000 Series cast iron closer, providing durability and reliability. In the event of a power interruption, the closer functions as a full rack and pinion unit, ensuring seamless operation. This model supports concealed or surface wiring and comes standard with a 24V cylinder, with a 120V option available via a compatible transformer. The full metal cover in a matte silver finish not only adds to the aesthetic but also enhances longevity. With a commercial-grade quality and a limited 2-year warranty, the LCN 4412HSA is an excellent investment for any facility requiring dependable door control solutions.

Sentronic Holder/Closer AL

Regular Arm Door Closer with 18 Mounting Plate, 24V, Left Hand, Aluminum

The 4410HSA Sentronic is an electrically controlled closer/holder designed to provide easy passage for groups of pedestrians through high traffic doors. Pedestrians moving through the doorway trigger the built in scanner. When the door is opened to 80 Deg. or more, the door is electrically held open to minimize wear on the door hardware. After the last pedestrian in a group passes through the doorway, the system timer releases the hold open, closing the door. The double lever trach arm closer is designed for push side mounting.

The LCN Sentronic HSA (Holder Scanner Activated) is a door closer with a scanner activated hold open feature.

The 4410HSA Series is designed to hold the door open as there is traffic passing through the opening. Pedestrians, moving through the doorway, trigger the built-in scanner. When the door is opened to 80° or more, the door is electrically held open to minimize wear and tear on applied door hardware.

• Selectable setting for hold-open period at either 15 or 30 seconds
• Utilizes LCN’s 4000 Series heavy duty Cast Iron door closer
• Functions as a full rack and pinion door closer when current is interrupted or the continuous hold-open is not engaged
• Concealed or surface wiring
• Shipped with standard 24V cylinder; 120V option requires 3210 transformer
• Handed for right or left swinging doors
• Built in switch to adjust hold-open feature from scanner controlled to continuous

Resources

• 4410HSA Series Fire/Life Safety Closers/Holders Cut Sheet
• HSA Series Product Guide
• LCN 4412 HSA Installation Instructions
• LCN Closers & Auto Operators Installation Guide
• LCN Electrified Door Control Product Guide
• LCN Low Energy Automatic Operators Brochure
• Von Duprin Finishes Chart
