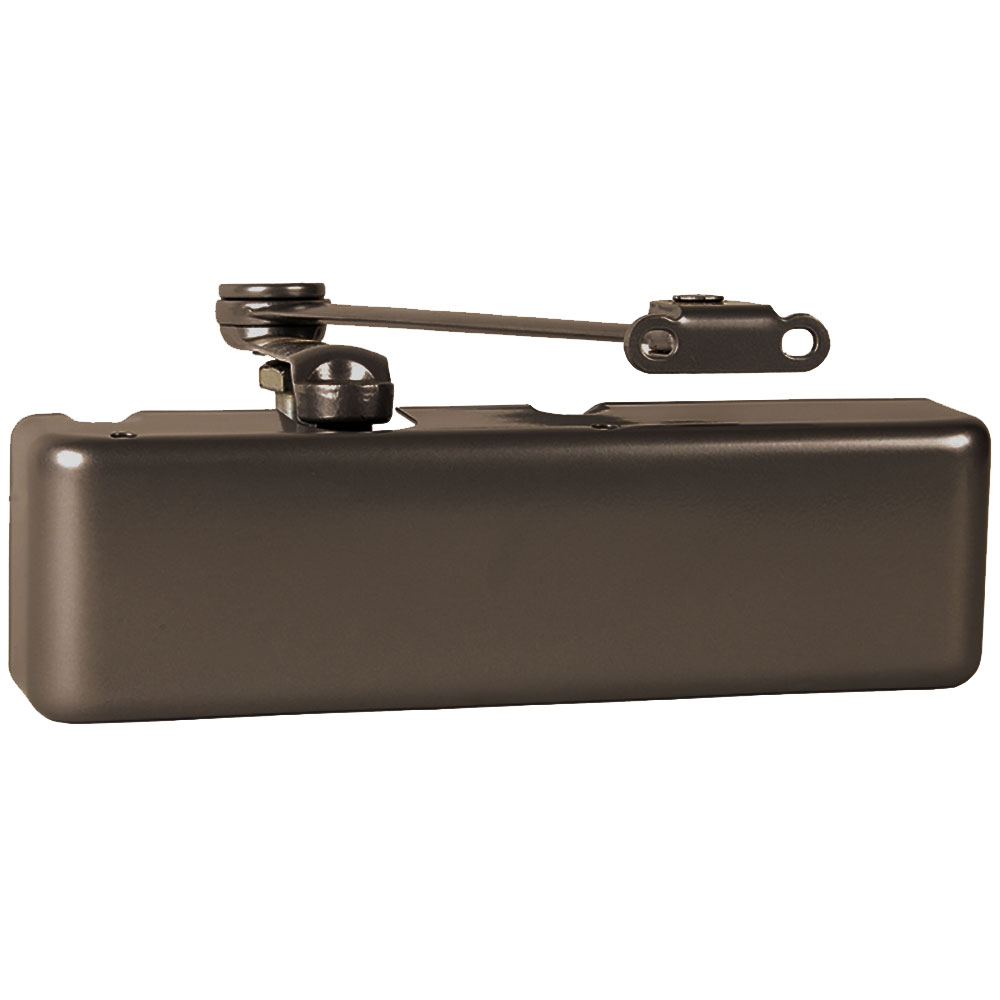

LCN 4511-EDA LH 695 High Security DKBRZ Door Closer

LCN 4511-EDA LH 695 High Security Closer DKBRZ is an exceptional choice for high-security environments. This heavy-duty extra duty arm door closer features a left-hand configuration and a sleek dark bronze finish, designed to withstand tampering and vandalism. Crafted with forged steel double lever arms and heavy gauge metal security covers, it is ideal for correctional institutions, high-traffic areas, and settings prone to vandalism. Engineered to meet rigorous performance standards, the 4511 model has passed over 10 million cycles in independent testing, ensuring reliability and durability. It is UL listed for self-closing doors and meets ADA requirements, making it a practical solution for commercial applications. The closer mounts on the hinge side and is adjustable for different door sizes, accommodating interiors up to 5’0" and exteriors up to 4’0". With a full metal cover and optional custom powder coat finishes, it offers flexibility in appearance while maintaining robust security features. The 4510 Series High Security Closers are tested and certified under ANSI Standard A156.4, grade one, and come with a limited two-year warranty. For installations in corrosive conditions, an optional SRI primer is available, ensuring longevity and performance in various environments.

High Security Closer DKBRZ

Extra Duty Arm Door Closer, Left Hand, Dark Bronze

The 4510 Smoothee is a heavy duty high security door closer with special componentes to minimize tampering and vandalism. Forged steel double lever arms and heavy gauge metal security covers are designed for correctional, vandal prone, institutional and other high traffic applications.

The 4510 Series is built for high security settings and has special components to minimize tampering and vandalism.

The 4510 Series is made of forged steeel double lever arms and heavy gauge metal security covers that are designed for high traffic applications. The closer has passed 10,000,000 cycles in independent testing.

• Standard 4510 series closer shipped with extra duty arm (non hold-open), metal security cover, and TORX Machine Screw pack
• Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”
• Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts hinge side, specify right or left swinging door
• 4511 cylinder meets ADA requirements
• Standard or optional custom powder coat finish
• Optional SRI primer for installations in corrosive conditions
• UL listed for self-closing doors
• Tested and certified under ANSI Standard A156.4, grade one

Resources

• 4510 Series High Security Closers Cut Sheet
• LCN 4000 Series Catalog
• LCN 4010, 4010T, 4510, 4510T Drop Plate Installation Instructions
• LCN 4510 Series Installation Guide
• LCN Closers & Auto Operators Installation Guide
• LCN Closers & Automatic Operators Parts Manual
• LCN High Security Door Closer Series Product Guide
• LCN High Security Series Catalog
• Von Duprin Finishes Chart
