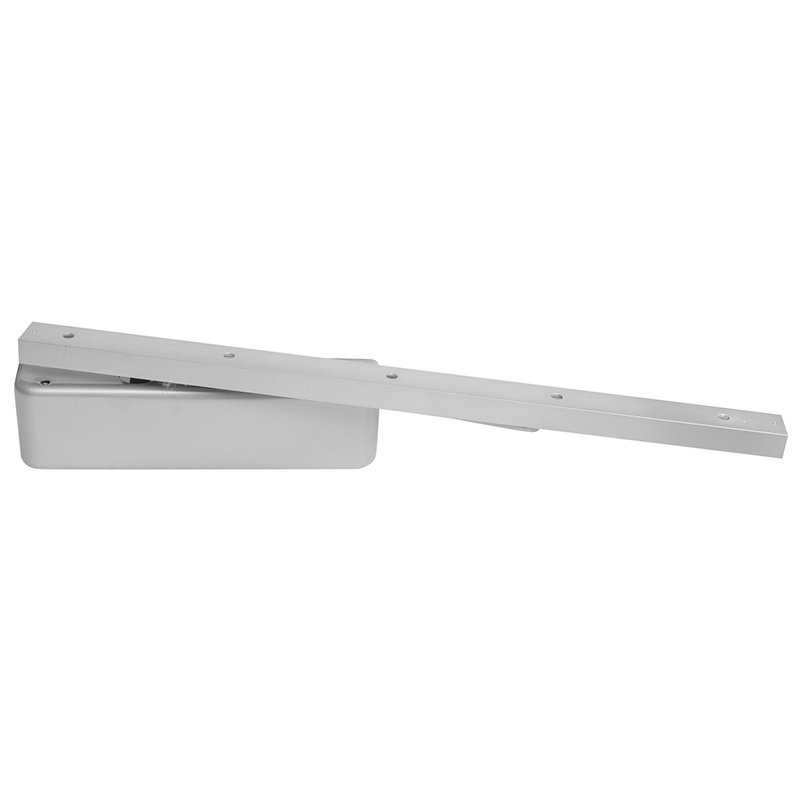

LCN 4513T-STD LH 689 High Security Track Closer AL

LCN 4513T-STD LH 689 High Security Track Closer AL is a robust solution designed for high-traffic environments where security is paramount. This left-handed, aluminum door closer features a standard arm track configuration, specifically built to withstand tampering and vandalism. Its forged steel double lever arms and heavy gauge metal security covers make it ideal for correctional facilities, institutional buildings, and areas prone to vandalism. Tested and certified under ANSI Standard A156.4, this Grade 1 closer ensures reliability and consistent performance. The 4510T series is UL listed for self-closing doors, providing peace of mind for users in demanding settings. With a swing degree of 180, this closer accommodates various door sizes, supporting installations on interior doors up to 4’0". The full metal cover offers durability against wear and tear, while the standard or optional custom powder coat finishes allow for aesthetic versatility. This model does not include hold-open features, making it a secure choice for environments requiring strict access control. Additionally, the LCN 4513T-STD LH comes with a limited 2-year warranty, ensuring long-term reliability and customer satisfaction. Perfectly suited for commercial environments, it’s a smart investment in safety and security.

High Security Track Closer AL

Standard Arm Track Door Closer, Left Hand, Aluminum

The 4510T Smoothee is a heavy duty high security track door closer with special componentes to minimize tampering and vandalism. Forged steel double lever arms and heavy gauge metal security covers are designed for correctional, vandal prone, institutional and other high traffic applications.

The LCN 4510T Series is a heavy duty closer with a high security track.

The 4510T Series has a forged steel single lever arm and heay gauge metal security cover designed for correctional, vandal prone, institutional and other high traffic interior applications.

• Standard 4510T series closer shipped with standard arm, security track. (non hold-open), track roller, metal security cover, and TORX Machine Screw pack. See 4510T Series page 21 for options.
• Sized cylinders for interior doors to 4’0”.
• Closer mounts hinge side, specify right or left swinging door.
• 4511T cylinder meets ADA requirements. See 4510T Series page 22.
• Standard or optional custom powder coat finish.
• Optional SRI primer for installations in corrosive conditions.
• The 4510T Series is UL listed for self-closing doors.
• Tested and certified under ANSI Standard A156.4, grade one.

Resources

• 4510T Series High Security Closers Cut Sheet
• LCN 4010, 4010T, 4510, 4510T Drop Plate Installation Instructions
• LCN 4510T Series Installation Instructions
• LCN Closers & Auto Operators Installation Guide
• LCN High Security Series Catalog
• Von Duprin Finishes Chart
