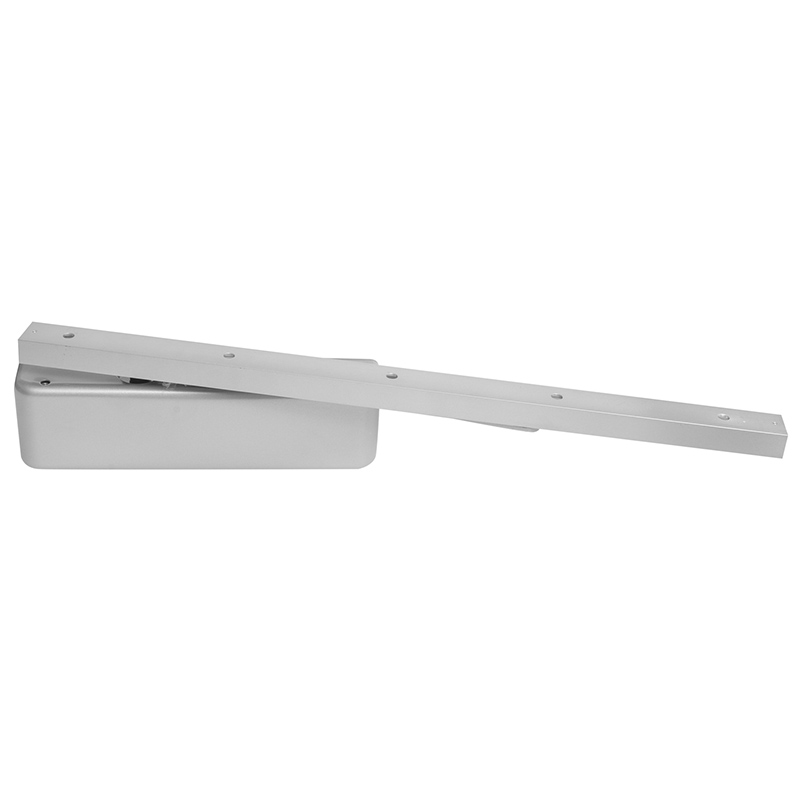

LCN 4513T-STD RH 689 High Security Track Closer AL

LCN 4513T-STD RH 689 High Security Track Closer AL is a robust solution designed for high-traffic environments where security and durability are paramount. This heavy-duty standard arm track door closer features a right-hand configuration and is constructed from high-quality aluminum, ensuring longevity and resilience against tampering and vandalism. The 4510T Smoothee series boasts forged steel double lever arms and a heavy gauge metal security cover, making it ideal for correctional facilities, institutional buildings, and other vandal-prone locations. Tested and certified under ANSI Standard A156.4, grade one, this closer meets stringent quality and safety standards. This model is equipped with a standard arm, security track (non-hold-open), track roller, and a TORX machine screw pack, making installation straightforward. It accommodates interior doors up to 4’0" and features a full metal cover for enhanced protection. Additionally, it is UL listed for self-closing doors and is available in a matte silver finish (689/US28), with options for custom powder coatings. With a limited two-year warranty and cold weather fluid compatibility, the LCN 4513T-STD is engineered for reliable performance in a variety of commercial applications, ensuring your doors close securely every time.

High Security Track Closer AL

Standard Arm Track Door Closer, Right Hand, Aluminum

The 4510T Smoothee is a heavy duty high security track door closer with special componentes to minimize tampering and vandalism. Forged steel double lever arms and heavy gauge metal security covers are designed for correctional, vandal prone, institutional and other high traffic applications.

The LCN 4510T Series is a heavy duty closer with a high security track.

The 4510T Series has a forged steel single lever arm and heay gauge metal security cover designed for correctional, vandal prone, institutional and other high traffic interior applications.

• Standard 4510T series closer shipped with standard arm, security track. (non hold-open), track roller, metal security cover, and TORX Machine Screw pack. See 4510T Series page 21 for options.
• Sized cylinders for interior doors to 4’0”.
• Closer mounts hinge side, specify right or left swinging door.
• 4511T cylinder meets ADA requirements. See 4510T Series page 22.
• Standard or optional custom powder coat finish.
• Optional SRI primer for installations in corrosive conditions.
• The 4510T Series is UL listed for self-closing doors.
• Tested and certified under ANSI Standard A156.4, grade one.
