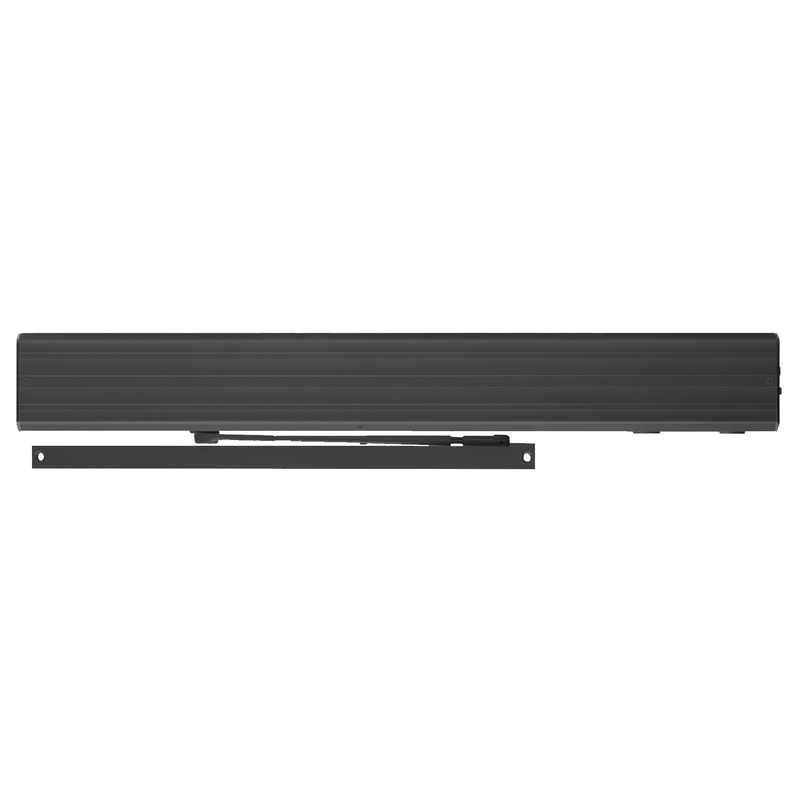

LCN 4631-STD 693 CS LowEnergy Auto Equalizer - GLBLK

LCN 4631-STD 693 CS LowEnergy Auto Equalizer GLBLK is a Grade 1 low energy surface-mounted electromechanical door operator designed to enhance accessibility while meeting rigorous performance standards. Ideal for manual openings that occasionally need automatic operation, this device features a slide track arm that is pull side mounted, accommodating doors between 36" and 48" wide. Equipped with a digital control box, the 4630 Series operator allows for both powered and manual swing functions, with a 90-degree powered and a 170-degree manual swing capability. It provides easy access for individuals with disabilities, the elderly, or those requiring additional support. The concealed switch option keeps aesthetics intact while offering on/off and continuous hold open functionalities. This unit meets ADA requirements in power mode and is non-handed, making it versatile for various installations. The robust construction includes a metal cover and a black painted finish, ensuring durability and a professional appearance. With adjustable back check features and a cold weather fluid option, the LCN 4631 is suitable for commercial environments. Backed by a two-year limited warranty, it promises reliability and performance for years to come.

LowEnergy Auto Equalizer GLBLK

Grade 1 Low Energy Surface Mounted Electromechanical Benchmark Door Operator, Slide Track Arm Standard, Pull Side Mounted, 36" - 48" Door, Concealed Switch, 90 Deg. Powered, 170 Deg. Manual Swing, Machine and Wood Screws, Black Painted Finish, Non-Handed

The 4630 Auto Equalizer is LCN's smart and reliable electrically powered low energy power operator. It provides easy access for people with disabilities or the elderly. Designed for manual openings that require occasional automatic opening.

The 4630 Series is a smart and reliable electrically low-energy power operator.

The 4630 Series has a digital control box and is designed for manual opening applications that occasionally require automatic opening.  This series provides easy access for people with disabilities, the elderly, or the frail.

• Standard, top jamb (pull side) mounted 4630 series closer shipped with single lever (standard) arm, metal cover, standard track, and wood and machine screw pack. Actuators available separately, see pages 199-215 of the Catalog
• Meets ADA requirements (power mode).
• Non-sized cylinders for interior doors to 4’0” and exterior doors to 3’0”.
• Non-handed for either right or left swinging door.
• 4630 has easily accessible switches to provide on/off and continuous hold open functions. 4630CS provides concealed on/off power switch. Control module provides all timing and sequential door functions, electric strike controls and adjustments for opening speed and force.
• Standard or optional custom powder coated finish, end caps are black.
• Optional plated finish on cover, arm, and fasteners.
