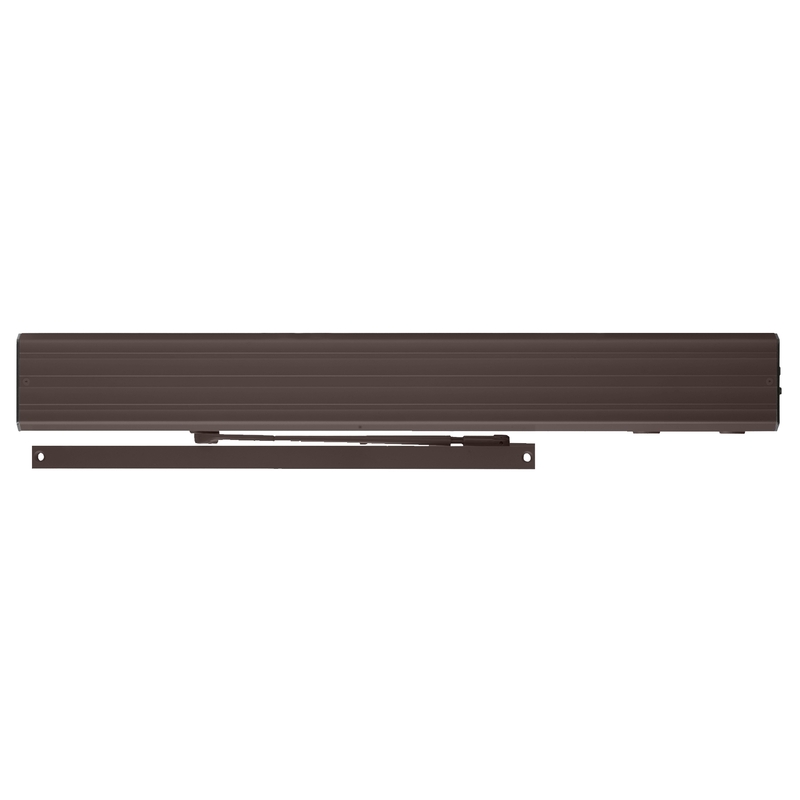

LCN 4631-STD 695 LowEnergy Auto Equalizer DKBRZ

LCN 4631-STD 695 LowEnergy Auto Equalizer DKBRZ is a Grade 1 low-energy surface-mounted electromechanical door operator designed for both functionality and accessibility. Ideal for doors measuring 36" to 48", it features a slide track arm that facilitates a 90-degree powered swing, with manual operation extending to 170 degrees. This operator is perfect for commercial settings, providing easy access for individuals with disabilities, the elderly, or those with mobility challenges. The 4631-STD offers a robust dark bronze finish, ensuring durability while meeting ADA compliance standards in power mode. The non-handed design allows for versatile installation on either right or left-swinging doors. With features like adjustable back check and easily accessible on/off and continuous hold-open switches, this unit is tailored to enhance user convenience. This operator includes a digital control box that manages timing and sequential door functions, while also accommodating electric strike controls. The product is shipped with a comprehensive installation package, including metal cover, standard track, and a screw pack. Designed for commercial use, the LCN 4631-STD is backed by a 2-year limited warranty, providing reliability and peace of mind for building professionals and homeowners alike.

LowEnergy Auto Equalizer DKBRZ

Grade 1 Low Energy Surface Mounted Electromechanical Benchmark Door Operator, Slide Track Arm Standard, Pull Side Mounted, 36" - 48" Door, 90 Deg. Powered, 170 Deg. Manual Swing, Machine and Wood Screws, Dark Bronze Painted Finish, Non-Handed

The 4630 Auto Equalizer is LCN's smart and reliable electrically powered low energy power operator. It provides easy access for people with disabilities or the elderly. Designed for manual openings that require occasional automatic opening.

The 4630 Series is a smart and reliable electrically low-energy power operator.

The 4630 Series has a digital control box and is designed for manual opening applications that occasionally require automatic opening.  This series provides easy access for people with disabilities, the elderly, or the frail.

• Standard, top jamb (pull side) mounted 4630 series closer shipped with single lever (standard) arm, metal cover, standard track, and wood and machine screw pack. Actuators available separately, see pages 199-215 of the Catalog
• Meets ADA requirements (power mode).
• Non-sized cylinders for interior doors to 4’0” and exterior doors to 3’0”.
• Non-handed for either right or left swinging door.
• 4630 has easily accessible switches to provide on/off and continuous hold open functions. 4630CS provides concealed on/off power switch. Control module provides all timing and sequential door functions, electric strike controls and adjustments for opening speed and force.
• Standard or optional custom powder coated finish, end caps are black.
• Optional plated finish on cover, arm, and fasteners.

Resources

• 4630 Series Electrohydraulic Operators Cut Sheet
• Choosing the Right LCN Auto Operator
• LCN 4600 Series Installation Guide
• LCN 4600 with 8310-856 Wiring Diagram
• LCN 4600CS Series Installation Guide
• LCN 4840 Series Product Guide - Automatic Operators
• LCN Auto Operators Catalog
• LCN Closers & Auto Operators Installation Guide
• LCN Closers & Automatic Operators Parts Manual
• LCN Low Energy Automatic Operators Brochure
• LCN RXLXEL with 4600 Wiring Diagram
• Von Duprin Finishes Chart
