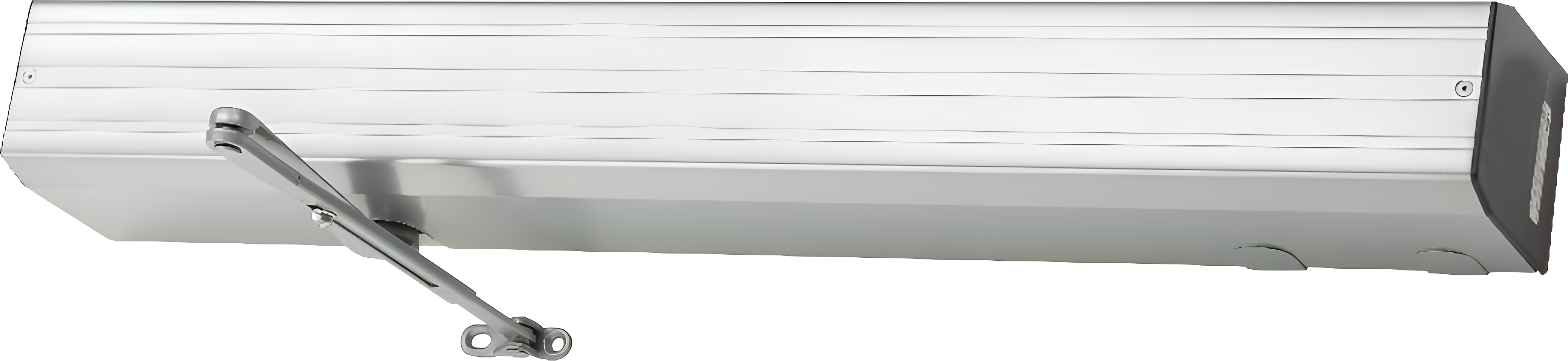

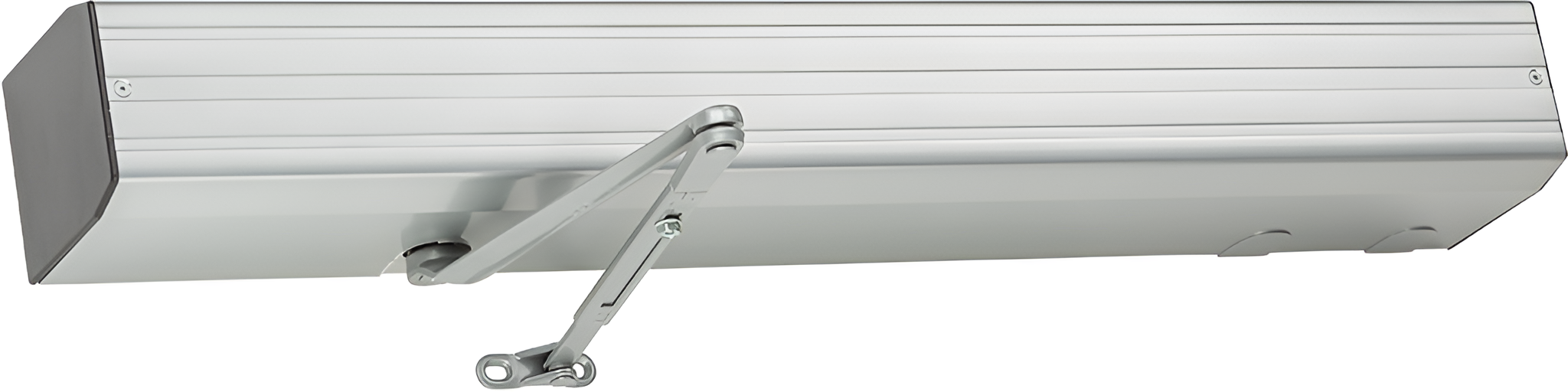

LCN 4642AL Auto Equalizer
Images may not represent actual product and finish

LCN 4642AL Auto Equalizer

Your Price: $8,158.26
Retail Price:$9,373.0000
Your Savings:$1,214.74(13%)
The LCN 4642-AL is a low voltage power operator with on-board supply, designed for easy access and ADA compliance.
Part Number : LCN_4642AL
Availability: 49 In Stock
Visa, Mastercard, American Express, Discover, PayPal, Amazon Pay

Net 30 terms available

LCN 4642AL Auto Equalizer

This unit is designed for standard openings that occasionally required automatic opening. It utilizes an internal closer that operates as a standard closer but adds and electric motor when automatic opening is needed.
  • Standard, top jamb (push side) mounted 4640 series closer shipped with regular arm, metal cover, and wood and machine screw pack. Actuators available separately.
  • Meets ADA, requirements (power mode).
  • Non-sized cylinders for interior doors to 4'6" and exterior doors to 3'6".
  • Non-handed for either right or left swinging door.
  • 4640 has easily accessible switches to provide on/off and continuous hold open functions. 4640CS provides concealed on/off power switch. Control module provides all timing and sequential door functions, electric strike controls and adjustments for opening speed and force.
  • Standard or optional custom powder coated finish, end caps are black.
  • Optional plated finish on cover, arm, and fasteners.
  • Digital Control Suite
  • Utilizes a 4040 Heavy Duty Door Closer
  • On Board Diagnostics and Power Supply
  • Factory Default Memory
  • Includes "No Destruct" Drive System
  • Certifications: Grade 1 - ANSI A117.1, A156.19, UL 10C, UL 325/228, ADA, 100 Hour Salt Spray, Meets BAA
  • Fluid: All weather fluid
  • Non-handed
  • Adjustable spring size 2-5
  • Cover: Metal Cover (MC)
  • Mounting: Top jamb (pull side)
  • Fasteners: Wood and Machine Screws (WMS)
  • Body Construction:
  • Cast iron body
  • Full Complement Bearing
  • 1 1⁄2" diameter piston
  • 3⁄4" diameter double heat treated pinion journal

Attributes

Alternate Codes: 111548, 4642, 4642 ALUM, 4642AL, 4642ALUM, 4642CS AL, 4642REG ALUM, LCN4642 ALUM, LCN4642-AL, LCN4642-REG 689, LCN4642-REG-689, LCN4642ALUM, LCN4642REG ALUM, LCN4642REG-AL

Arm Function: Non-Hold Open

Arm Type: Regular

Category: Door Closers, Door Operators, Power Operators

Certifications: A117.1, A156.19, ADA, ANSI, Buy American Act, UL Listed

Closer Type: Electrohydraulic, Power Operator, Surface

Cover: Metal

Cylinder Type: Standard

Door Application: Power Operators

Fasteners: Machine Screws, Wood Screws

Finish: Aluminum

Finish Code: 689

Finish Color: Aluminum Powder Coated, EN, Sprayed Aluminum

Grade: Grade 1

Manufacturer: LCN Closers

Material: Cast Iron

Mounting: Top jamb (Push Side)

Series: 4640

Spring Size: 5

Subtype: Automatic Operators

Type: DOOR CLOSERS
