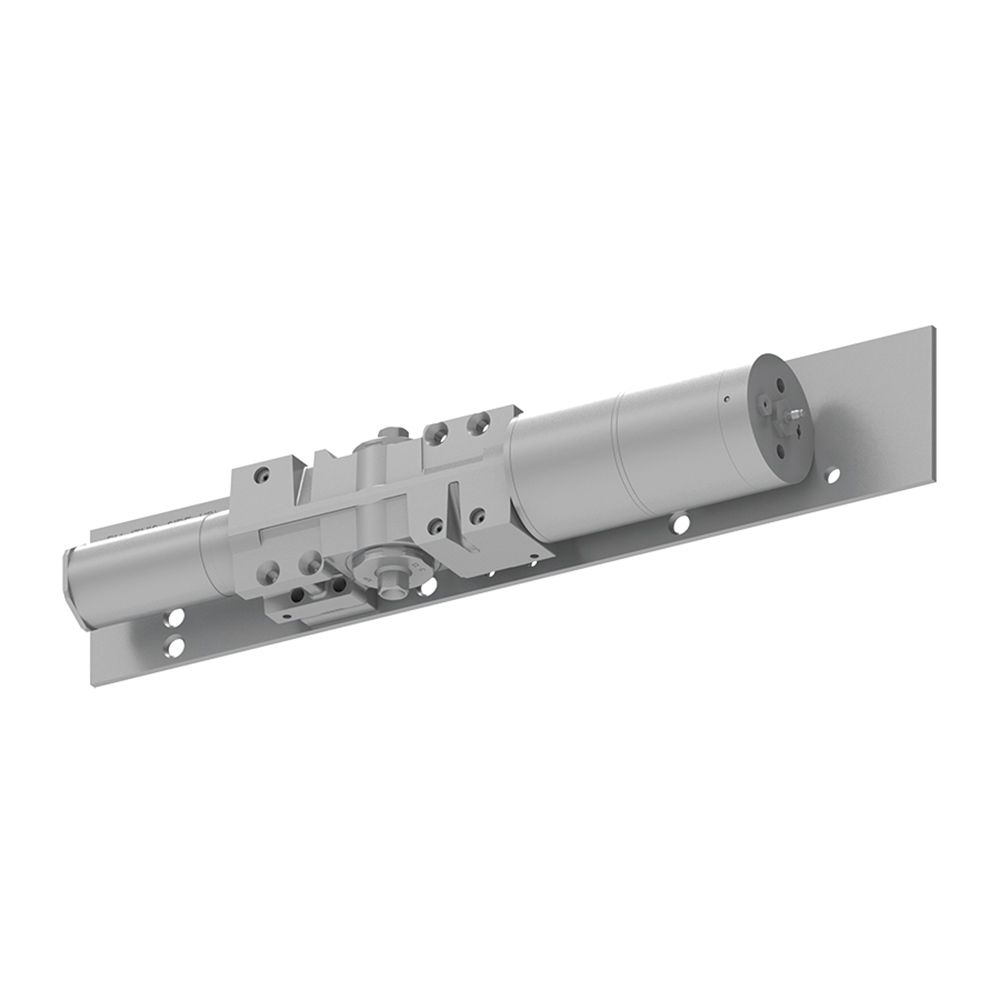

LCN 4822-3071 689 STD Cylinder Assembly - Aluminum

LCN 4822-3071 689 STD Cylinder Assembly AL offers a reliable solution for effective door management in commercial settings. This standard cylinder assembly is crafted from durable aluminum and is part of the innovative 4820 Series, known for its pneumatically powered multi-door capabilities. Designed to facilitate easy access for individuals with disabilities, the elderly, or those with limited mobility, the 4820 Auto Equalizer provides the ideal combination of manual and automatic operation. It excels in multi-door applications, lowering costs per door leaf as the number of doors increases. The standard closer is shipped with a regular arm, metal cover, and a comprehensive wood and machine screw pack. This assembly meets ADA requirements in power mode and accommodates interior doors up to 4’6" and exterior doors up to 3’6". Its non-handed design ensures versatility, while the option for standard or custom powder-coated finishes allows for aesthetic customization. The unit features a matte silver finish (689/US28) with black end caps and requires additional system components for installation. With a limited 2-year warranty, the LCN 4822-3071 is a solid choice for any commercial environment, combining functionality, accessibility, and style.

STD Cylinder Assembly AL

Standard Cylinder Assembly, Aluminum

The 4820 Series is LCN’s pneumatically powered MULTI-DOOR solution.

The 4820 Auto Equalizer by LCN is a low energy automatic operator provides easy access for people with disabilities, the elderly, or the frail. Designed primarily for manual opening applications that occasionally require automatic opening.

• Ideal for multi-door applications since cost per door leaf decrease significantly as the number of door leaves increases.
• Standard, plate mounted 4820 series closer shipped with regular arm, metal cover, and wood and machine screw pack.
• Meets ADA requirements (power mode).
• Non-sized cylinders for interior doors to 4’6” and exterior doors to 3’6”.
• Non-handed.
• Requires additional system components.
• Standard or optional custom powder coated finish, end caps are black. Optional plated finish on cover, arm, and fasteners.
