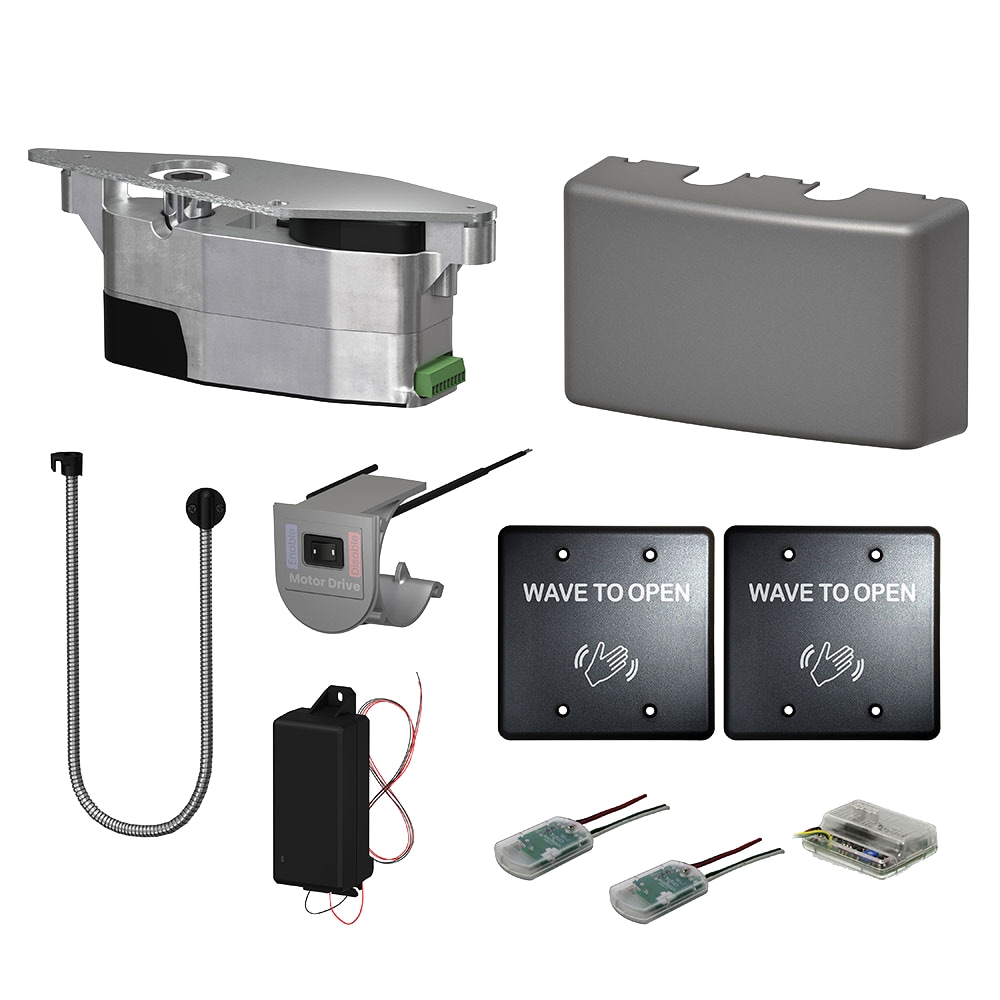

LCN 6440-3813W 689 Auto Opener Module Kit AL is a compact low energy automatic operator designed to enhance accessibility and touchless access for interior openings. This conversion kit includes a gearmotor assembly, mounting plate, screws, a plastic cover, power supply, door loop, and 30' copper wire, making it a comprehensive solution for upgrading your facility. The kit features the 8310-3813W line-powered touchless RF actuator kit, which contains two actuators, two transmitters, and one receiver, allowing for seamless operation. With a user-friendly interface for electronic adjustments and simple calibration setup, the LCN 6440 is designed for ease of use. It offers a configurable power input that accommodates wall plug-in or external power supply options, ensuring versatility in various applications. Certified to UL 10C, UL 325, and ANSI Standard A156.19, this operator meets strict safety and accessibility standards, including compliance with ANSI Standard A117.1. The LCN 6440 supports door weights of up to 254 lbs. for push and 198 lbs. for pull, making it suitable for commercial environments. With a two-year limited warranty, this auto opener module kit is an excellent choice for both new constructions and retrofitting existing openings, promoting a healthy, accessible environment for all users.

Auto Opener Module Kit AL

COMPACT Low Energy Auto Operator Module Kit (Conversion Kit Only), Gearmotor Assembly, Mounting Plate and Screws, Plastic Cover, Power Supply, Door Loop, 30' Copper Wire, Includes 8310-3813W Line Powered Touchless RF Actuator Kit (2 Actuators, 2 Transmitters, 1 Receiver), Aluminum Painted Finish

The LCN 6400 COMPACT Series low energy automatic operator can help your facility meet basic needs related to accessibility and touchless access on interior openings. Whether you are upgrading a single opening, renovating a portion of your building or constructing a new facility, the COMPACT series enables you to promote a healthy and accessible environment. The unique modular design makes the COMPACT Series simple and cost-effective. The core elements of the solutions are a motor gearbox assembly, a 4040XP mechanical closer and wireless or hardwired actuators. For existing openings, your can repurpose the 4040XP closer. For new openings, you can configure a complete solution to meet your needs.

The unique modular design makes the COMPACT Series simple and cost-effective for upgrading new or existing openings.

The LCN 6400 COMPACT Series low energy automatic operator can help your facility meet basic needs related to accessibility and touchless access on interior openings. Whether you are upgrading a single opening, renovating a portion of your building or constructing a new facility, the COMPACT series enables you to promote a healthy and accessible environment.

The unique modular design makes the COMPACT Series simple and cost-effective. The core elements of the solutions are a motor gearbox assembly, a 4040XP mechanical closer and wireless or hardwired actuators. For existing openings, your can repurpose the 4040XP closer. For new openings, you can configure a complete solution to meet your needs.

• 24V input for safe door-mount applications
• Configurable power input to allow for simple wall plug-in or external power supply
• Compact user interface for electronic feature adjustments
• Simple calibration set-up with visible and audible feedback
• Adjustments via mechanical closer to meet closing force preferences
• Power boost to overcome interior stack pressure and allow for lower spring settings
• Compatible with 3 different 4040XP mounting configurations
• Fire input to deactivate actuation upon signal
• Dedicated input for actuation signal (hardwired or wireless receiver)
• Certified to UL 10C, UL 325 and UL 228
• Certified to ANSI Standard A156.19
• Compliant with ANSI Standard A117.1
