LCN 6440AL COMPACT Automatic Operator Module Kit is designed for seamless integration with high-traffic environments, such as schools, hospitals, and government facilities. This innovative kit includes a gearmotor assembly, cover, wall adapter, door loop, and 30 feet of copper wire, all finished in a sleek aluminum that complements any décor. The modular design of the COMPACT operator simplifies installation, allowing for quick setup with just four screws and a mounting plate connected to a standard 4040XP closer. This electrified module not only enhances accessibility but also drives the existing mechanical closer, making it a first-of-its-kind solution that enables the reuse of current hardware. The intuitive design minimizes complexity during both installation and maintenance, providing peace of mind to building professionals and facility managers. Built from durable cast iron, the system is UL 10C rated and comes with a limited 2-year warranty, ensuring reliability and safety. With an estimated operational life of 15 to 20 years, LCN products stand up to the rigorous demands of everyday use. Choose the LCN 6440AL for an effective, trustworthy solution to all your automatic door operator needs.

COMPACT Automatic Operator Module Kit with Gearmotor Assembly, Cover, Wall Adapter, Door Loop, and 30' of Copper Wire Aluminum Finish (4040XP Closer Required)

LCN products can be found in many high-traffic facilities such as schools, hospitals, government buildings, and correctional facilities. With innovative door closure solutions, LCN products are trusted to work seamlessly during critical moments. With our high standards of performance, customers have peace of mind knowing their facilities are protected. We have 35 different series of closers and door hardware to choose from and 15 to 20 years of operating life on our products. LCN has unmatched expertise to meet all safety and security challenges.

• First of its kind, modular solution, enables reuse of existing hardware
• The unique and modular design makes the COMPACT operator easy to install
• Electrified module drives open mechanical closer
• Modular, intuitive design, minimizes complexity of installation and maintenance
• Motor gearbox assembly connects to a standard 4040XP with a mounting plate and just 4 screws
• 24V input for safe door-mount Applications.
• Configurable power input to allow for simple wall plug-in or external power supply.
• Compact user interface for electronic feature adjustments.
• Simple calibration set-up with visible and audible feedback.
• Adjustments via mechanical closer to meet closing force preferences.
• Power boost to overcome interior stack pressure and allow for lower spring settings.
• Compatible with 3 different 4040XP mounting configurations.
• Fire input to deactivate actuation upon signal.
• Dedicated input for actuation signal (hardwired or wireless receiver).
• Certified to UL 10C, UL 325 and UL 228.
• Certified to ANSI Standard A156.19.
• Compliant with ANSI Standard A117.1.

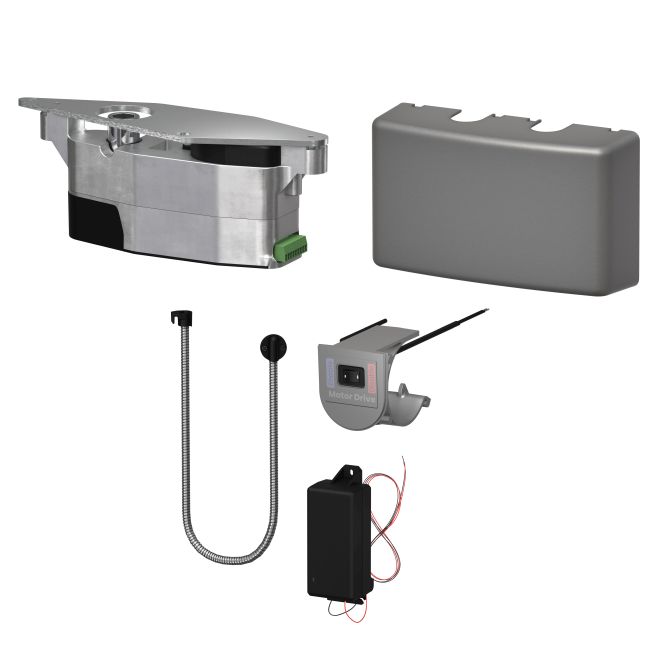

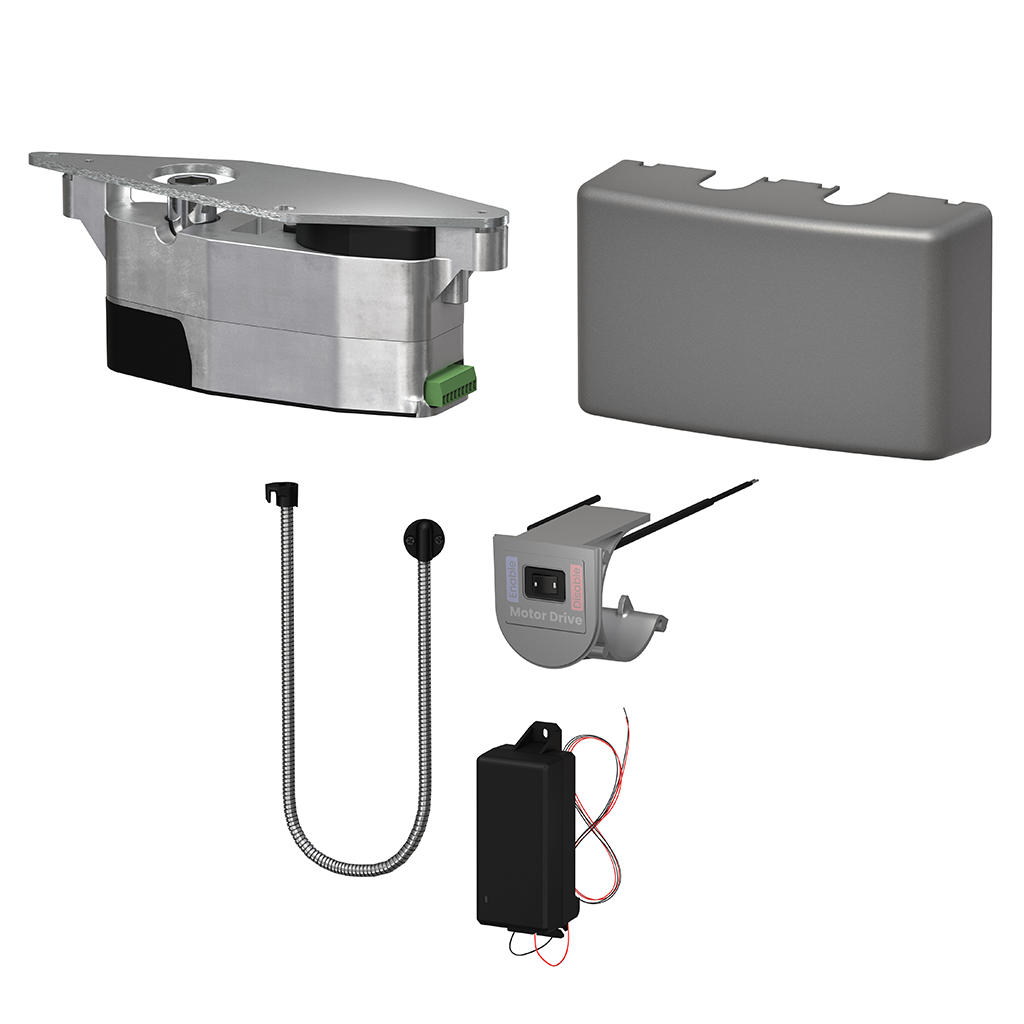

Features

• 30ft copper wire (not pictured)
• Cover and switch insert
• Door loop
• Gearmotor assembly, mounting plate and screws
• Wall adapter
