LCN 6440XP AL Door Operator
Images may not represent actual product and finish

LCN 6440XP AL Door Operator

Your Price: $1,768.70
Retail Price:$2,303.0000
Your Savings:$534.30(23%)

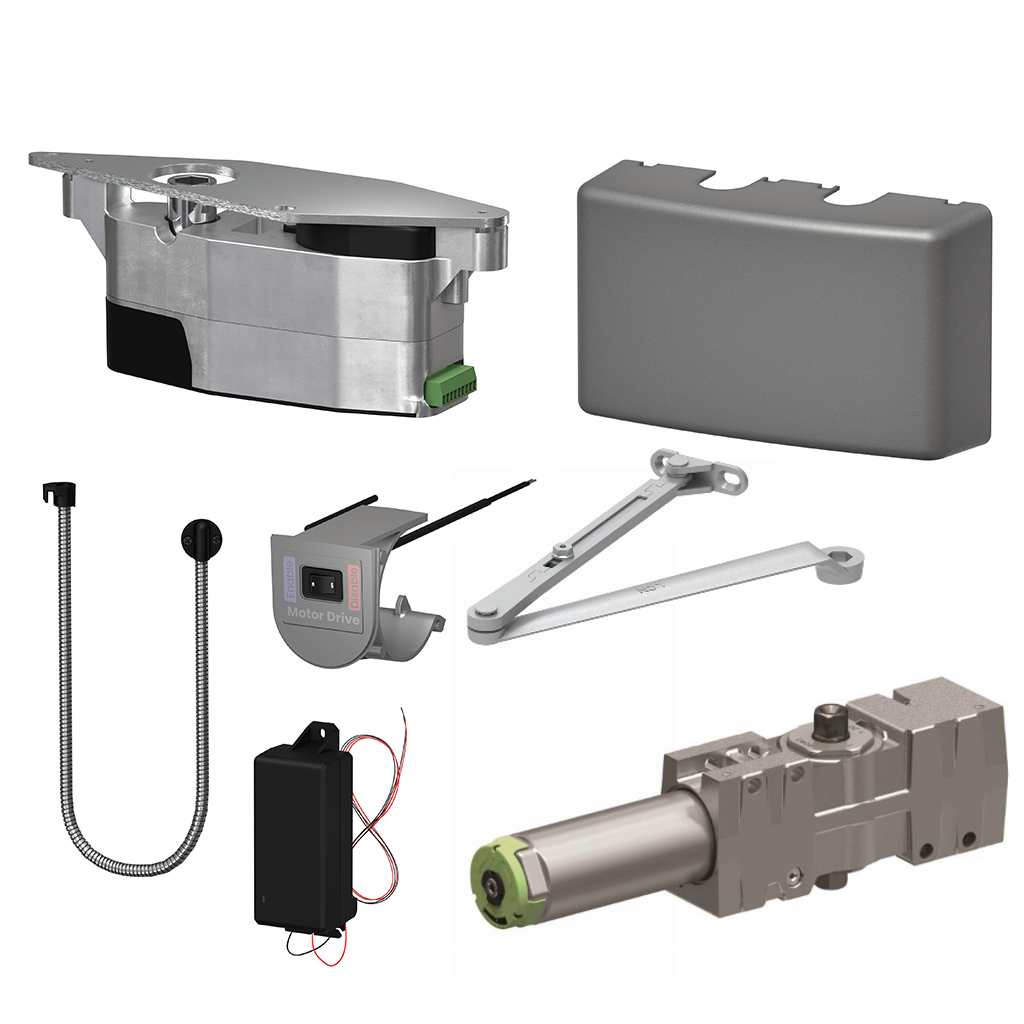

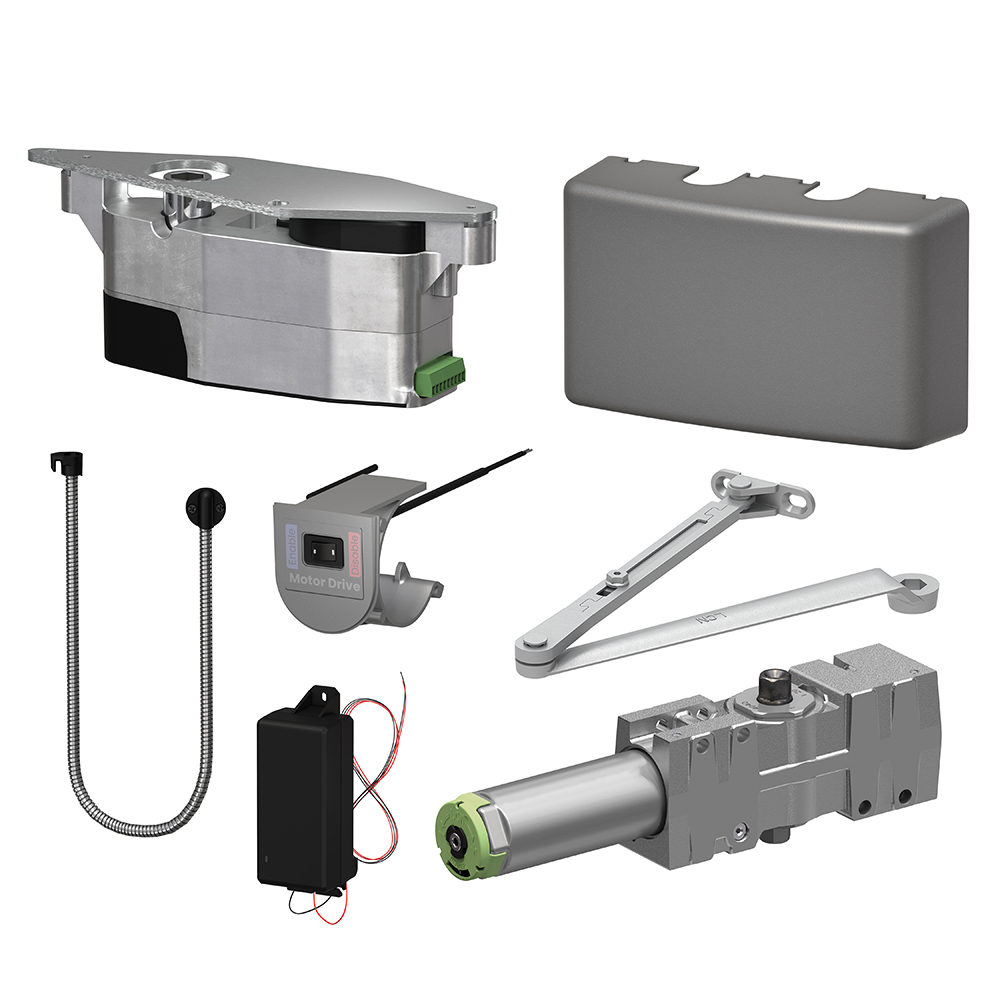

COMPACT Low Energy Auto Operator, Gearmotor Assembly, Mounting Plate, and Screws, Plastic Cover, Power Supply, Door loop, 30' Copper wire, Mounts to Incl 4040XP-RwPa, Aluminum Painted Finish
Part Number : LCN_6440XPAL
Availability: 66 In Stock
LCN 6440XP AL Door Operator

The LCN 6400 COMPACT Series low energy automatic operator can help your facility meet basic needs related to accessibility and touchless access on interior openings. Whether you are upgrading a single opening, renovating a portion of your building or constructing a new facility, the COMPACT series enables you to promote a healthy and accessible environment. The unique modular design makes the COMPACT Series simple and cost-effective. The core elements of the solutions are a motor gearbox assembly, a 4040XP mechanical closer and wireless or hardwired actuators. For existing openings, your can repurpose the 4040XP closer. For new openings, you can configure a complete solution to meet your needs.
  • 24V input for safe door-mount Applications.
  • Configurable power input to allow for simple wall plug-in or external power supply.
  • Compact user interface for electronic feature adjustments.
  • Simple calibration set-up with visible and audible feedback.
  • Adjustments via mechanical closer to meet closing force preferences.
  • Power boost to overcome interior stack pressure and allow for lower spring settings.
  • Compatible with 3 different 4040XP mounting configurations.
  • Fire input to deactivate actuation upon signal.
  • Dedicated input for actuation signal (hardwired or wireless receiver).
  • Certified to UL 10C, UL 325 and UL 228.
  • Certified to ANSI Standard A156.19.
  • Compliant with ANSI Standard A117.1.

Features

  • 4040XP Standard cylinder
  • 6440 Module kit components
  • RwPA arm

Attributes

Alternate Codes: 6440XP-689, 6440XP689, LCN6440XP-689

Arm Function: Non-Hold Open

Arm Type: Regular Arm w/Parallel Arm Bracket

Baa Qualified: Yes

Category: Door Closers, Door Operators, Power Operators

Certifications: A156.19, ADA, ANSI, BHMA, UL 10C, UL 325, UL Listed

Closer Type: Electrohydraulic, Power Operator, Surface

Country of Origin: Usa

Cover: Plastic

Dimension: 30'

Door Application: Power Operators

Fasteners: Machine Screws, Wood Screws

Finish: Aluminum

Finish Code: 689

Finish Color: Aluminum Powder Coated, EN, Sprayed Aluminum

Finish Description: Aluminum Painted

Grade: Grade 1

Hazardous Material: NO

Hold Open: No

Limited Warranty: 2 Years

Manufacturer: LCN Closers

Manufacturer Warranty: Limited 2 Year Warranty

Material: Cast Iron

Mounting: Hinge (Pull Side), Mounts Directly onto 4040XP, Parallel Arm (Push Side), Top jamb (Push Side)

No Of Inners: 1

Order_ Qty: 1

Restrictions: None

Series: 6440XP

Spring Size: 2-4

Subcategory: Automatic Operators

Subtype: Door Operator

Type: Door Closers and Operators

Ul Listing Type: UL 10C Rated
