LCN 9153-REG2 628 Benchmark Regular Arm ANCLR

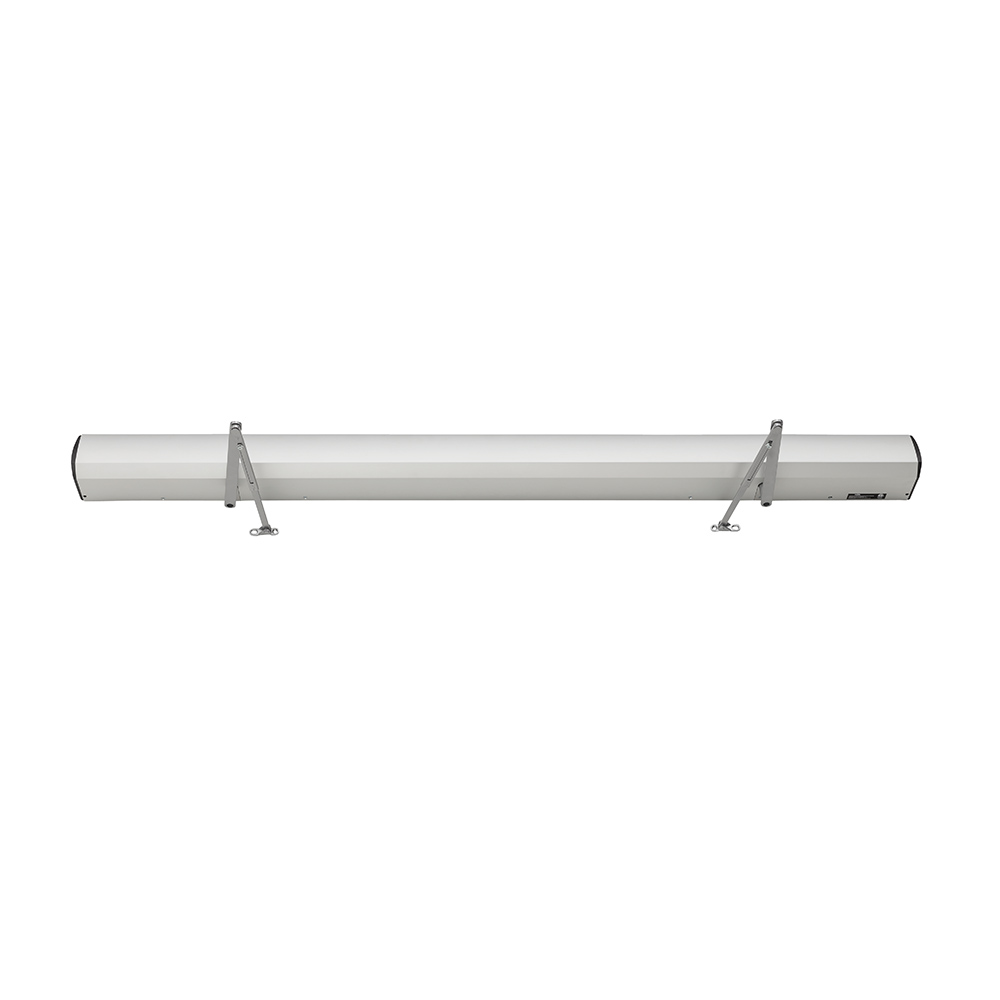

LCN 9153-REG2 628 Benchmark, Regular Arm ANCLR is a Grade 1 low energy surface mounted electromechanical door operator designed for double doors, accommodating sizes from 52" to 96". This versatile unit is push side mounted and features a satin aluminum clear anodized finish, ensuring both durability and aesthetic appeal. The Benchmark series is engineered for easy access, making it an ideal choice for facilities catering to individuals with disabilities or the elderly. What sets the 9153 apart is its Push 'n Go technology, which allows for non-switch activation, streamlining the door operation. This makes it exceptionally user-friendly while still being compliant with ADA standards. The system includes a standard on/off switch and adjustable back check, enhancing its functionality and safety. Installation is straightforward, with all necessary components such as motor gearboxes, control boxes, and mounting plates included. The non-handed design accommodates both right and left swinging doors, and the electric hold-open feature provides flexibility in usage. With LED indicators for power status and clearly labeled potentiometers, this operator combines practicality with ease of use. Designed for commercial applications, the LCN 9153-REG2 is a reliable and effective solution for modern accessibility needs.

Benchmark, Regular Arm ANCLR

Grade 1 Low Energy Surface Mounted Electromechanical Benchmark Double Door Operator, Regular, Push Side Mounted, 52" - 96" Door, 90 Deg. Swing, Machine and Wood Screws, Satin Aluminum Clear Anodized Finish, Non-Handed

The 9140 Benchmark by LCN is an electrically powered low energy operator. It provides easy access for people with disabilities or the elderly. Designed for automatic openings that require manual opening occasionally.

The 9150 Series is an electrically powered low-energy operator.

The 9150 Series provides easy access for people with disabilties, the elderly, or the frail. The Push 'n Go technology permits non-switch activation. The Benchmark is a cost-effective solution for retrofitting an activated or manual door.

• 9150 series operator is shipped with motor gearboxes, control boxes, mounting plate, regular arms, metal cover, wood and machine screw packs. Actuators available separately, see pages 199-215.
• Pair of interior doors, surface mounted.
• ADA compliant.
• On/Off switch included as standard.
• Non-handed for either right or left swinging door.
• 72” cover is standard.
• All potentiometers clearly labeled with their functions.
• LED lights indicate power to control box and motor gearbox.

Resources

• 9150 Series Electromechanical Benchmark Operators Cut Sheet
• Choosing the Right LCN Auto Operator
• LCN 4840 Series Product Guide - Automatic Operators
• LCN Auto Operators Catalog
• LCN Closers & Auto Operators Installation Guide
• LCN Electrified Door Control Product Guide
• LCN Electromechanical Auto Operator Series Product Guide
• LCN Electromechanical Automatic Operators Data Sheet
• Von Duprin Finishes Chart
