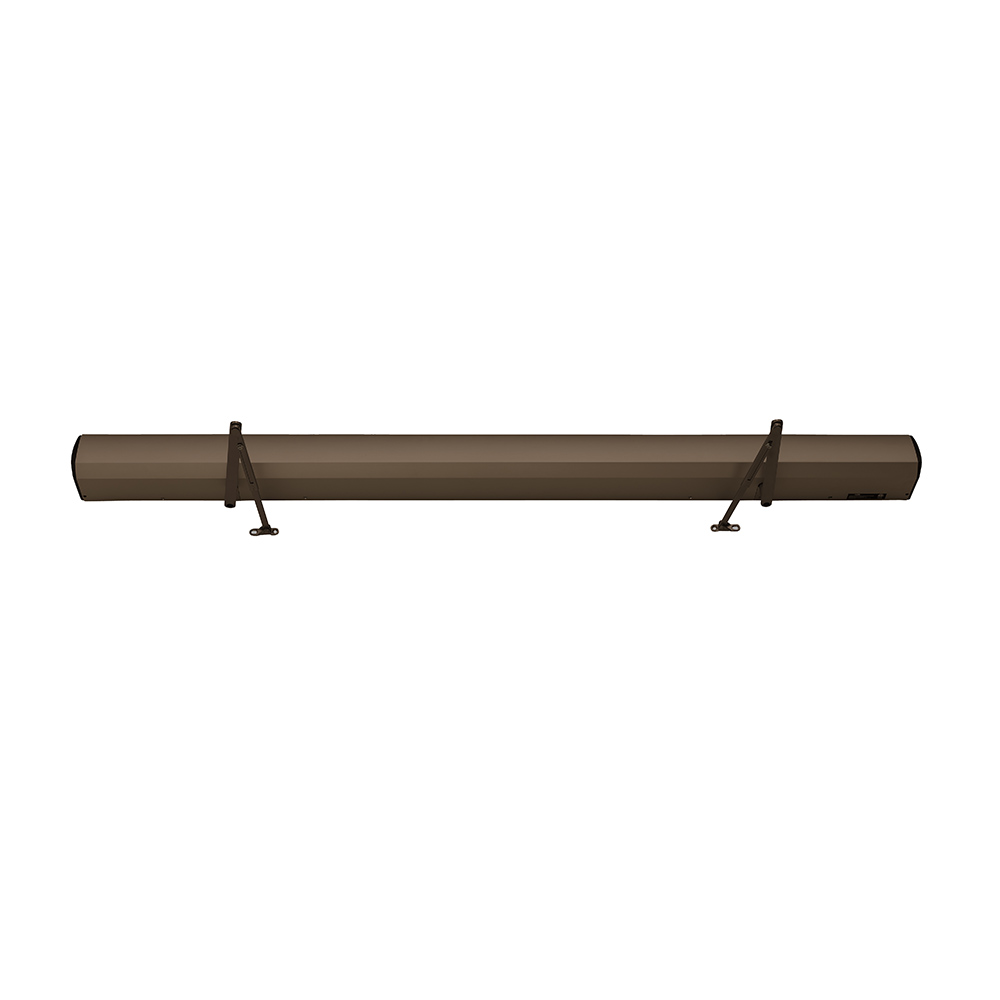

LCN 9153-REG2 710 Benchmark Regular Arm ANDKB

LCN 9153-REG2 710 Benchmark is a Grade 1 low energy surface-mounted electromechanical door operator designed for double doors, accommodating widths from 52" to 96". This operator is perfect for both commercial settings and residential applications, ensuring easy accessibility for individuals with disabilities, the elderly, or those with limited mobility. The regular arm is push side mounted, allowing for a smooth 90-degree swing. Equipped with Push 'n Go technology, the 9153-REG2 enables non-switch activation, making it a user-friendly solution for automatic openings that may still require manual operation on occasion. The durable dark bronze anodized aluminum finish not only enhances its aesthetic appeal but also ensures longevity. Each unit includes essential components like motor gearboxes, control boxes, and mounting hardware, simplifying installation. ADA compliance is a standard feature, along with an on/off switch, adjustable back check, and LED indicators for power monitoring. This model is non-handed, offering flexibility for right or left swinging doors, while the included electric hold open feature further enhances convenience. With a robust construction designed to support doors weighing up to 200 lbs, the LCN 9153-REG2 ensures reliable performance and accessibility in any environment.

Benchmark, Regular Arm ANDKB

Grade 1 Low Energy Surface Mounted Electromechanical Benchmark Double Door Operator, Regular, Push Side Mounted, 52" - 96" Door, 90 Deg. Swing, Machine and Wood Screws, Dark Bronze Anodized Aluminum Finish, Non-Handed

The 9140 Benchmark by LCN is an electrically powered low energy operator. It provides easy access for people with disabilities or the elderly. Designed for automatic openings that require manual opening occasionally.

The 9150 Series is an electrically powered low-energy operator.

The 9150 Series provides easy access for people with disabilties, the elderly, or the frail. The Push 'n Go technology permits non-switch activation. The Benchmark is a cost-effective solution for retrofitting an activated or manual door.

• 9150 series operator is shipped with motor gearboxes, control boxes, mounting plate, regular arms, metal cover, wood and machine screw packs. Actuators available separately, see pages 199-215.
• Pair of interior doors, surface mounted.
• ADA compliant.
• On/Off switch included as standard.
• Non-handed for either right or left swinging door.
• 72” cover is standard.
• All potentiometers clearly labeled with their functions.
• LED lights indicate power to control box and motor gearbox.
