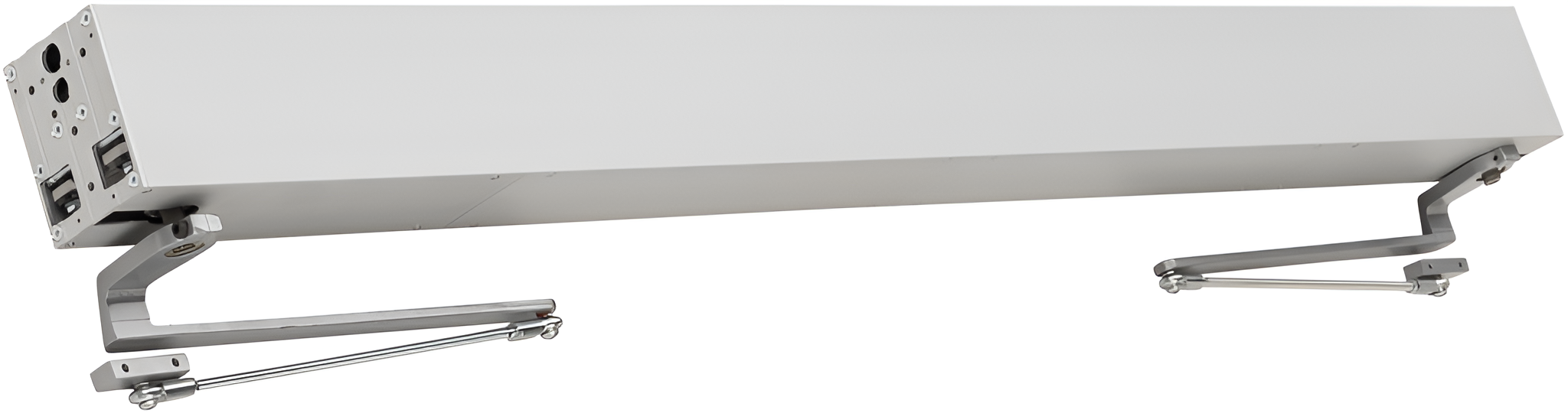

LCN 9553-HLB-REGARM2-72-HDR2-ANCLR Senior Swing Push Side ADA Automatic Door Operator, 72in Header, 115V

LCN Closers 9553-HLB-REGARM2-72-HDR2-ANCLR Senior Swing Push Side Simultaneous Pair ADA Automatic Door Operator is engineered for high-traffic and high-abuse environments. Designed for both manual and automatic operation, this electromechanical unit ensures accessibility in compliance with the Americans with Disabilities Act (ADA) and ANSI/BHMA 156.19 standards. With a robust 72-inch header length and included angle brackets, it features a top jamb push side mounting for easy installation. The 9553 model includes a power boost feature, providing extra closing force in windy conditions. Its Push ‘N Go technology allows the door to open automatically when manually engaged, holding it open for a customizable delay of 1 to 30 seconds, ensuring seamless pedestrian flow. Constructed from clear anodized aluminum, this Grade 1 door operator is built to last, backed by a 2-year limited warranty. Key specifications include a minimum combined door width of 52" to 98" for push and 60" to 98" for pull, accommodating simultaneous pairs with a leaf width ranging from 30" to 48". The machine screws included ensure secure installation, making the LCN 9553 an ideal choice for both commercial and residential applications requiring reliable, efficient access solutions.

Senior Swing Push Side Simultaneous Pair ADA Automatic Door Operator with Angle Brackets, 72in Header Length, Regular Arms, Top Jamb Push Side Mounting, 115V, Machine Screw Pack, Grade 1, 628/ANCLR Aluminum Clear Anodized

The low-energy electromechanical senior swing series operators are LCN’s heaviest-duty version for high-abuse and high-traffic areas. The senior swing series is backed by a 2-year limited warranty, is UL listed, meets ANSI/BHMA 156.19, the American Disabilities Act (ADA) and ANSI A117.1 requirements for accessibility. Both the 9500 and 2800 series ship with a standard header and optional customizable header lengths are offered. The power boost provides additional closing force in severe wind. Push ‘N Go non-switch activation takes over when a pedestrian manually opens the door to 5°, then holds the door fully open for 1-30 seconds, depending on the time delay. The 9550 senior swing by LCN is an ADA door operator that is a two-in-one swing door operator. Senior swing operator when activated, opens doors automatically for wheelchair access, yet allows for manual operation for regular pedestrian traffic.

Features:

• Motor gearbox driving mechanism for operator
• Digital keypad
• Electromechanical unit with microprocessor control
• Adjustable hold time of 1 to 30 seconds
• 2-year warranty
• Power boost allows for increase closing force near latch
• Push ‘N Go permits non-switch activation
• Wood and machine screws
• Application-specific handed

Specifications:

• Certifications: Grade 1 - ANSI A156.19, UL325/228, UL1998, ADA, 100 hour salt spray, meets BAA - buy American Act
• Handing: Handed
• Door width:
• Minimum combined door width 52"- 98" (push)
• Minimum combined door width 60"- 98" (pull; double egress)
• Simultaneous pair - width per leaf 30" minimum - 48" maximum
• Fasteners: Machine screws (MS)
• Mounting: Simultaneous pair, surface mount, pull side, push side, double egress

Optional Arms:

• 9550-3077PLCM: Standard Arm Assembly with Track Roller (STDTRKARM2)
• Handed
• Includes 3077 regular arm assembly, 3038 track, and 3034 track roller
• 9550-3077L: Long Arm (LONG)
• Handed
• Includes 77 main arm assembly and 79LR linkage assembly
• 9550-3077: Regular Arm (REGARM)
• Handed
• Includes 77 main arm assembly and 79 linkage assembly
• 9550-3077T: Standard Arm (STDTRKARM)
• Handed
• Track roller not included
• 9550-77: Main Arm
• Handed
• Attaches to motor gearbox
• 9550-79: Linkage Assembly
• 15"
• Threaded rod attaches to door
• Extends from main arm
• 9550-79LR: Linkage Assembly
• 32"
• Threaded long rod attaches to door
• Extends from main arm
• Used for reveal 10" to 20"

Finishes:

• 628 - Aluminum, anodized
• 710 - Dark brown, anodized
