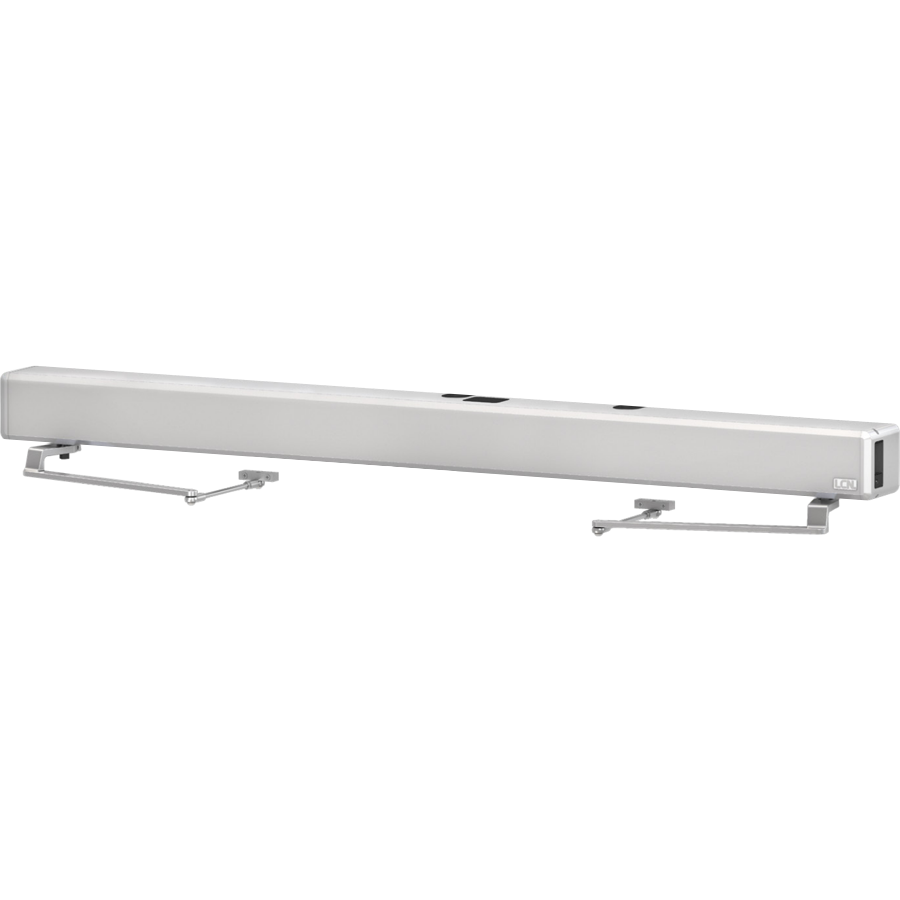

LCN 9553IQ-REGARM2-COV2-60-ANCLR Senior Swing Push Side ADA Automatic Door Operator, 60in, Clear Anodized

LCN Closers 9553IQ-REGARM2-COV2-60-ANCLR Senior Swing Push Side Simultaneous Pair ADA Automatic Door Operator combines strength and functionality for high-traffic environments. Designed specifically for accessibility, this electromechanical door operator meets stringent ANSI/BHMA 156.19 and ADA requirements, ensuring safe and reliable operation for all users. With a self-adjusting controller and a robust motor gearbox driving mechanism, the operator is perfect for doors measuring up to 60 inches wide. It features a power boost to enhance closing force in windy conditions, while the innovative Push ‘N Go technology allows pedestrians to manually open the door, automatically holding it ajar for 1 to 30 seconds based on the adjustable time delay. Constructed from durable aluminum with a clear anodized finish, the LCN 9553 is built to withstand heavy use and is UL listed for added peace of mind. The product includes a machine screw pack for easy installation and is supported by a 2-year limited warranty. Ideal for both push and pull applications, the LCN Closers 9553 offers versatility and reliability, making it an essential choice for commercial buildings and public facilities. Upgrade your access solutions today with this powerful and efficient automatic door operator.

Senior Swing Push Side Simultaneous Pair ADA Automatic Door Operator, Self-Adjusting Controller, 60in Door, Regular Arms, Top Jamb Push Side Mounting, 115V, Machine Screw Pack, Grade 1, 628/ANCLR Aluminum Clear Anodized

The low-energy electromechanical senior swing series operators are LCN’s heaviest-duty version for high-abuse and high-traffic areas. The senior swing series is backed by a 2-year limited warranty, is UL listed, meets ANSI/BHMA 156.19, the American Disabilities Act (ADA) and ANSI A117.1 requirements for accessibility. Both the 9500 and 2800 series ship with a standard header and optional customizable header lengths are offered. The power boost provides additional closing force in severe wind. Push ‘N Go non-switch activation takes over when a pedestrian manually opens the door to 5°, then holds the door fully open for 1-30 seconds, depending on the time delay. The 9550 senior swing by LCN is an ADA door operator that is a two-in-one swing door operator. Senior swing operator when activated, opens doors automatically for wheelchair access, yet allows for manual operation for regular pedestrian traffic.

Features:

• Motor gearbox driving mechanism for operator
• Digital keypad
• Electromechanical unit with microprocessor control
• Adjustable hold time of 1 to 30 seconds
• 2-year warranty
• Power boost allows for increase closing force near latch
• Push ‘N Go permits non-switch activation
• Wood and machine screws
• Application-specific handed

Specifications:

• Certifications: Grade 1 - ANSI A156.19, UL325/228, UL1998, ADA, 100 hour salt spray, meets BAA - buy American Act
• Handing: Handed
• Door width:
• Minimum combined door width 52"- 98" (push)
• Minimum combined door width 60"- 98" (pull; double egress)
• Simultaneous pair - width per leaf 30" minimum - 48" maximum
• Fasteners: Machine screws (MS)
• Mounting: Simultaneous pair, surface mount, pull side, push side, double egress

Optional Arms:

• 9550-3077PLCM: Standard Arm Assembly with Track Roller (STDTRKARM2)
• Handed
• Includes 3077 regular arm assembly, 3038 track, and 3034 track roller
• 9550-3077L: Long Arm (LONG)
• Handed
• Includes 77 main arm assembly and 79LR linkage assembly
• 9550-3077: Regular Arm (REGARM)
• Handed
• Includes 77 main arm assembly and 79 linkage assembly
• 9550-3077T: Standard Arm (STDTRKARM)
• Handed
• Track roller not included
• 9550-77: Main Arm
• Handed
• Attaches to motor gearbox
• 9550-79: Linkage Assembly
• 15"
• Threaded rod attaches to door
• Extends from main arm
• 9550-79LR: Linkage Assembly
• 32"
• Threaded long rod attaches to door
• Extends from main arm
• Used for reveal 10" to 20"

Finishes:

• 628 - Aluminum, anodized
• 710 - Dark brown, anodized
