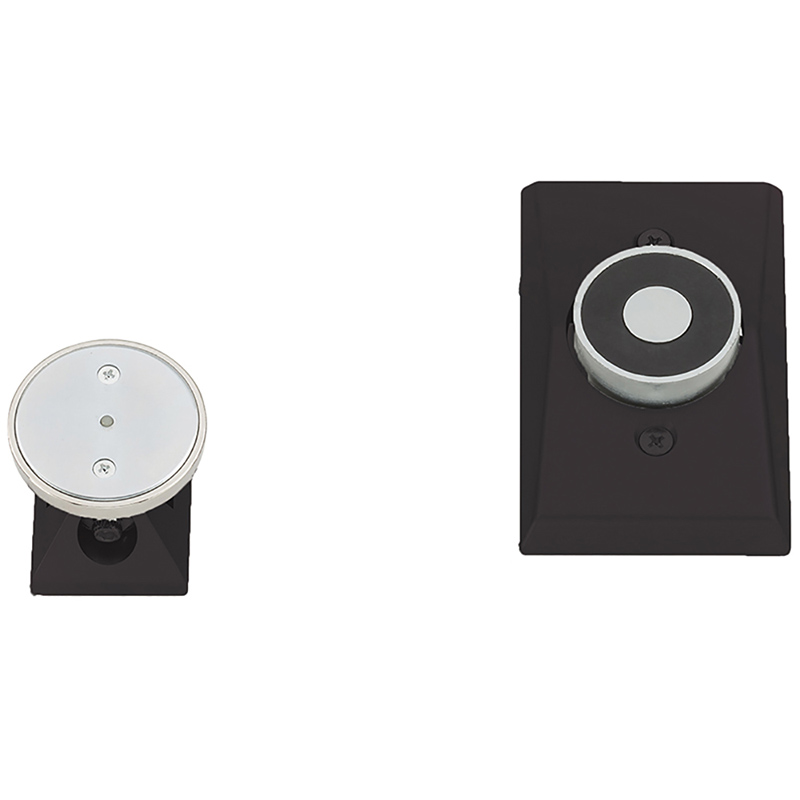

LCN SEM7850 695 Electromagnetic Door Holder DKBRZ

LCN SEM7850 695 Electromag Door Holder DKBRZ offers reliable performance with its heavy-duty electromagnetic design, perfect for ensuring secure door holding in commercial settings. This recessed wall-mounted unit features a standard profile armature and operates with a tri-voltage system, accommodating 12V, 24V, or 120V, making it versatile for various applications. With a holding force of 35 lbs, the SEM7850 is designed to be fail-safe, maintaining door positions until power is interrupted. This model is compatible with manual door closers, providing an effective solution for maintaining open or closed door states. The dark bronze painted finish not only enhances its aesthetic appeal but also ensures durability in demanding environments. Certified under ANSI Standard A156.15, the SEM7850 is UL listed for smoke barrier and labeled fire doors, emphasizing its safety features. It is suitable for pocket door installations, making it an adaptable choice for diverse architectural designs. Each unit comes complete with die-cast housing, cover, armature, and WMS screw pack, ensuring a straightforward installation process. Choose the LCN SEM7850 for a dependable electromagnetic door holder that combines safety, functionality, and style, elevating the security of any commercial space.

Electromag Door Holder DKBRZ

Magnetic Door Holder, Recessed Wall Mount, Standard Profile Armature, 12V 24V 120V Tri Voltage, Dark Bronze Painted Finish

The Sentronic SEM7800 Series are heavy duty, electrically controlled door holding magnets. Magnets are fail safe and hold until the current is interrupted. A manual door closer is used to control and close the doors. A choice of floor, recessed wall or surface wall mounted magnets are available.

All SEM series magnets are UL listed for smoke barrier or labeled fire doors.

Tested and certified under ANSI Standard A156.15. heavy duty, electrically controlled door holding magnets. Magnets are fail safe and hold until the current is interrupted. A manual door closer is used to control and close the door.

SEM 7820 Magnet Features

• Tri-voltage design with 35lbs. of holding force
• Floor-mounted
• Now available armature extensions from LCN
• SEM 7820 magnets are shipped with die cast housing, cover, armature(s) and WMS screw pack
• UL listed for smoke barrier or labeled fire doors
• SEM 7820 available in Aluminum and Dark Bronze finishes

SEM 7830 Magnet Features

• Tri-voltage design with 35lbs. of holding force
• Surface wall-mounted
• Now available armature extensions from LCN
• SEM 7830 magnets are shipped with die cast housing, cover, armature and WMS screw pack
• Suitable for use in pocket door installations
• UL listed for smoke barrier or labeled fire doors
• SEM 7830 available in Aluminum and Dark Bronze finishes

SEM 7840 Magnet Features

• Tri-voltage design with 35lbs. of holding force
• Low profile recessed wall-mounted
• Now available armature extensions from LCN
• SEM 7840 magnets are shipped with die cast housing, cover, armature and WMS screw pack
• Suitable for use in pocket door installations
• UL listed for smoke barrier or labeled fire doors
• SEM 7840 available in Aluminum and Dark Bronze finishes

SEM 7850 Magnet Features

• Tri-voltage design with 35lbs. of holding force
• Standard profile recessed wall-mounted
• Now available armature extensions from LCN
• SEM 7850 magnets are shipped with die cast housing, cover, armature and WMS screw pack
• Suitable for use in pocket door installations
• UL listed for smoke barrier or labeled fire doors
• SEM 7850 available in Aluminum and Dark Bronze finishes

Resources

• LCN Closers & Auto Operators Installation Guide
• LCN SEM7810 Extension Installation Guide
• LCN SEM7820 Extension Installation Guide
• LCN SEM7830 Extension Installation Guide
• LCN SEM7840/7850 Installation Guide
• LCN SEM7870 Installation Guide
• SEM Series Fire/Life Safety Closers/Holders Cut Sheet
