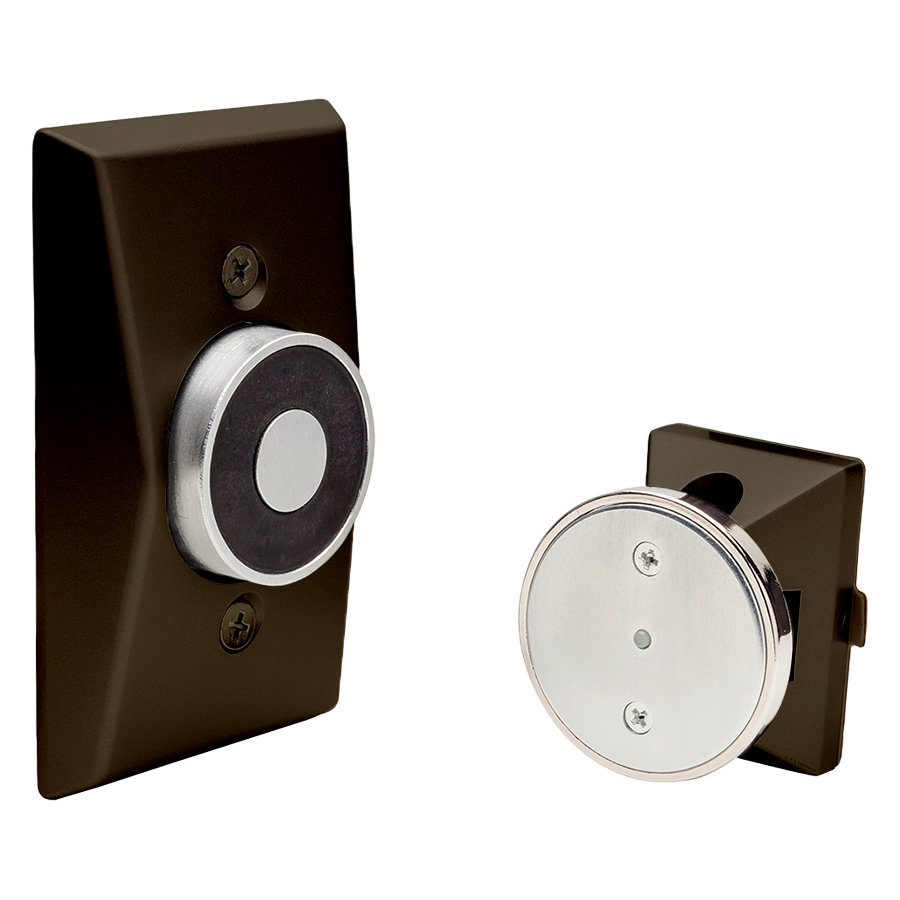

LCN SEM7850-DKBZ Sentronic Electro-Magnetic Single Door Holder, Tri-Voltage, 35lbs, Dark Bronze

Sentronic Electro-Magnetic Single Door Holder, Standard Profile Recessed Wall Mount, 3-5/8in Projection, Tri-Voltage 12V/24V/120V, 35lbs Holding Force, Die Cast Housing, ADA, UL, Wood and Machine Screws, Grade 1, 695/DKBZ Dark Bronze Powder Coat

The Sentronic 7800 series magnet releases when the fire alarm panel enters an alarm condition and the electrical current is interrupted, allowing the door to perform manually until power returns. The tri-voltage design provides 35 pounds of holding force. The magnet is fail-safe and will hold the door until the current is interrupted. The SEM 7800 series is protected by a 2-year warranty, meets ANSI/BHMA 156.15 and is UL listed for metal smoke barrier or labeled fire doors. All magnets in the series feature die-cast housings and are available in aluminum and dark bronze finishes. The SEM 7820 is floor-mounted, the SEM 7830 is surface wall-mounted, the SEM 7840 is low-profile recessed wall-mounted and the SEM 7850 is standard-profile recessed wall-mounted. All magnets but the SEM 7820 are suitable for pocket door installation.

Features:

• Die cast housing
• Choice of floor-mounted, recessed wall-mounted and surface-mounted wall magnets
• Heavy-duty design
• Tri-voltage design provides 35 pounds of holding force
• Magnets are fail-safe until the electrical current is interrupted
• Performs manually under alarm conditions until power returns
• Wood and machine screw pack fasteners
• Armature extensions available
• SEM 7830, 7840 and 7850 can be used in pocket door installations

Specifications:

• Certifications: Grade 1 - ANSI A156.15, UL 10C for metal smoke barrier or labeled door, life safety code, NFPA 101, 100 hour salt spray, meets BAA - buy American Act
• Voltage: Tri-voltage design with 35 lbs. of holding force
• Housing: Die cast
• Fasteners: Wood and machine screws (WMS)
• Mounting: Floor mounted
• Total projection: 6-3⁄4" (171 mm)

Finishes:

• 689 - Aluminum paint
• 695 - Dark bronze paint
