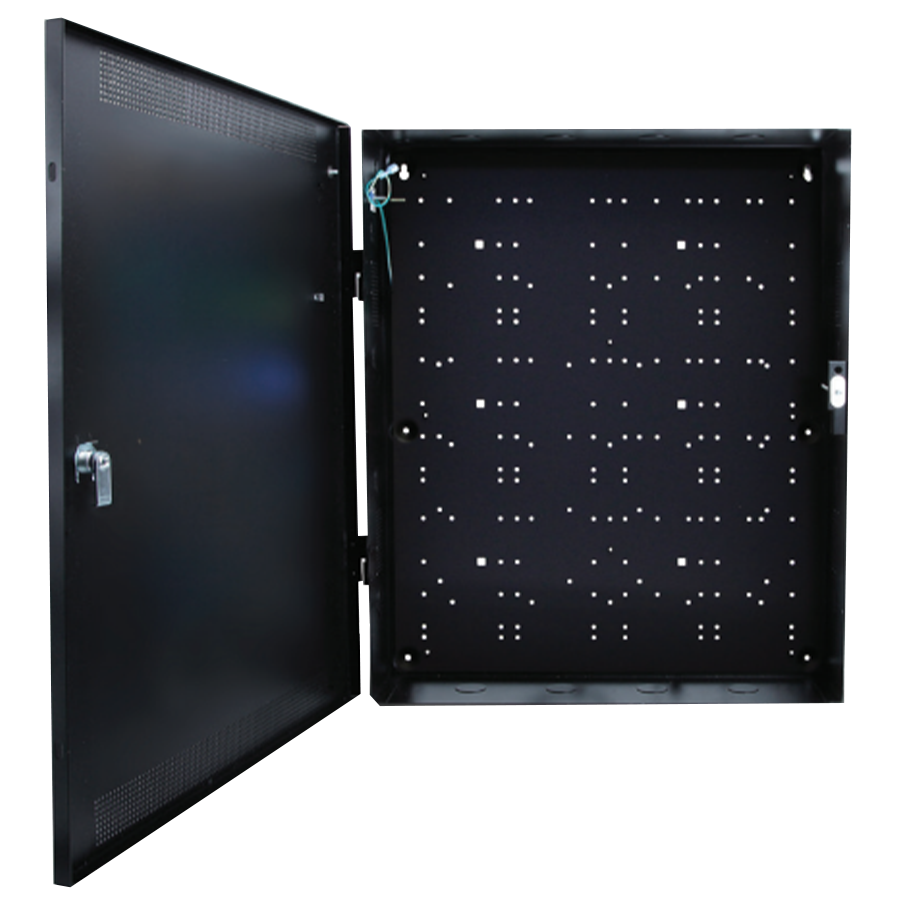

Lifesafety Power E4 Enclosure 20W x 24H x 4.5D

Lifesafety Power Inc E4 Enclosure 20W x 24H x 4.5D delivers a robust and flexible power management solution for security systems. Designed to accommodate single, dual, and multi-voltage power configurations, this enclosure provides essential functionality for various applications, whether you need simple power requirements or the capability for future expansion with LSP accessory boards. The E4 features a painted, steel, locking enclosure complete with a tamper switch and integral battery space, ensuring both durability and security. It provides a pair of user-selectable outputs for 12 or 24 VDC, with one output offering continuous power and the second programmable as fail-safe or fail-secure, triggered by fire alarm disconnects. This modular system allows for easy integration of additional components such as power distribution and relay-based lock control to suit specific project needs. Advanced features include comprehensive fault detection and reporting capabilities, microprocessor smart charging for battery sets ranging from 4 to 80 amp hours, and the option to connect to a LAN/WAN network via a Netlink module for remote diagnostics. With a lifetime warranty and RoHS compliance, the Lifesafety Power E4 Enclosure is built to meet the demands of modern security environments while ensuring reliability and ease of use.

Enclosure 20W x 24H x 4.5D

Single, dual, and multi-voltage power systems in enclosures for simple requirements or for expansion with LSP accessory boards. Multiple enclosure sizes available. Each FPO power supply provides one pair of outputs, user selectable for 12 or 24 VDC, the unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space. One output of a pair provides continuous output power for system use, the second is programmable for either fail-safe or fail-secure operation, activated when the fire alarm disconnect is initiated. Models with a B100 provide dual voltage output with a single AC connection. Flexpower accessory boards can be added to a Flexpower system in any combination based on job requirements and system retains its complete agency listing.

Features:

• Fully modular power management system
• Multiple outputs for system power, direct lock control and accessory power distribution modules
• Fire alarm interface for egress lock control (FAI)
• Configurable fail-safe / fail-secure modes of operation
• Comprehensive fault detection and reporting including optional earth ground and battery presence
• AC and system fault output relays can be delayed via PowerCom
• Microprocessor smart charging restores battery sets from 4 to 80 amp hours
• Adding a Netlink module connects power supply to a LAN/WAN network for remote power supply programming and diagnostics. Monitors and reports system status, battery state, generates email or SNMP notification of system trouble or time to service alert
• Lifetime warranty
• RoHS Compliant

System Features:

• The Flexpower expandable power systems offer single, dual, or multi-voltage power systems housed in various enclosure sizes for simple power requirements or to be expanded with LSP accessory modules in the field.
• Listed modular accessories that can be added to any system include: power distribution, relay based lock control, egress lock control, secondary voltage and network connection.
• Each FPO power supply provides one pair of outputs, user selectable for 12 or 24 VDC, the unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space. One output of a pair provides continuous output power for system use, the second is programmable for either fail-safe or fail-secure operation, activated when the fire alarm disconnect is initiated. Models with a B100 provide dual voltage output with a single AC connection.
• Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and current power supply status.
