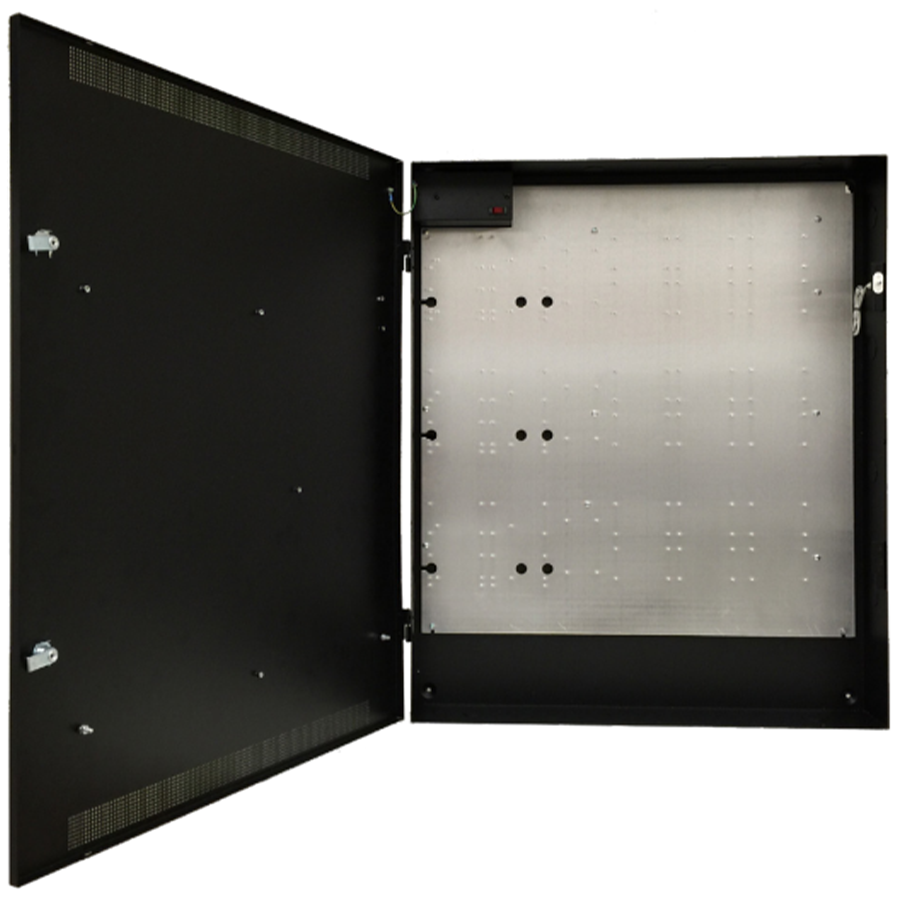

Lifesafety Power Inc E8L E8 Enclosure 36H x 30W x 6.5D is a robust and versatile solution designed for low voltage power applications. Constructed from durable 16-gauge steel with a sleek LSP black textured finish, this locking enclosure not only provides security but also integrates seamlessly into various setups. With dimensions of 36 inches high, 30 inches wide, and a depth of 6.5 inches, it accommodates up to 750 watts of power and up to nine, eight-output network managed distribution boards. The E8L is engineered for maximum flexibility, featuring a removable backplate that simplifies installation by allowing hardware mounting in the shop before wiring at the job site. It includes a protected AC input terminal that meets arc protection requirements, an AC on/off circuit breaker switch, and pre-engineered access mounting patterns for easy setup. Additionally, it offers multiple knockouts on all four sides for versatile wiring options. Equipped with a tamper switch and a locking mechanism with two keys, the enclosure ensures your equipment remains secure. The design also allows for the accommodation of 12Ah battery sizes, making it an excellent choice for access control and alarm power supplies. Whether you're a building professional or a knowledgeable homeowner, the E8L E8 Enclosure is a reliable choice for your security needs.
E8 Enclosure 36H x 30W x 6.5D
E Series standard enclosures are painted, steel, locking enclosures with integral battery space for low voltage power applications. E series mounts Flexpower AC, DC power supplies and distribution modules in multiple configurations for maximum flexibility. Prewired for standard grounding, a tamper switch is provided with the cabinet. Expansion enclosures provide additional horizontal or vertical space for use as a wiring gutter, additional battery space, or mounting of additional access control modules. Battery enclosures provide additional space for backup battery sets. Prebuilt enclosures are available in two different sizes with multiple shelf configurations for flexibility in battery options. Unified power access enclosures are specifically engineered to mount Flexpower system modules along side access panels in one integrated access power management system. LCLASS multi-purpose enclosures offer maximum flexibility, functionality and savings to access system designers. LCLASS enclosures are engineered to provide multiple voltage outputs while monitoring a maximum of 72 individual outputs for presence and integrity in one compact system. The E8L will house up to 750 watts of power and nine, eight output network managed distribution boards. To prevent damage to system electronics, the backplate separates from the enclosure for access hardware mounting in the shop while wiring is pulled to the enclosure at the job site. Once configured, the backplate can be remounted for final ties and checkout.
Features:
Alternate Codes: E8L
Category: Access Control, Alarm Power Supplies, Alarms & Intercom, Burglar Alarms, CCTV Products, Power Supplies, Wire & Power Supplies
