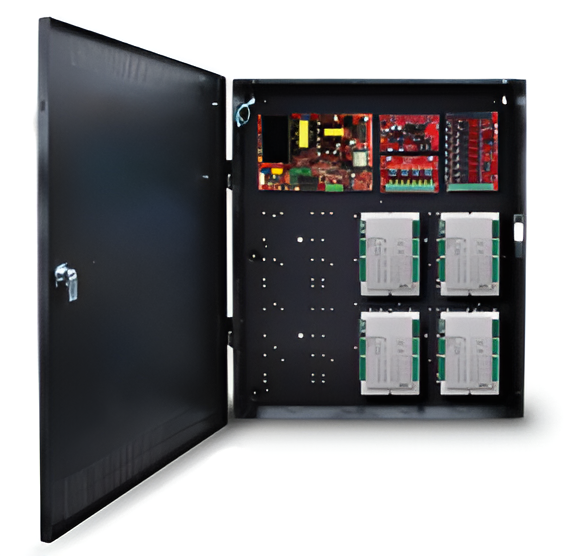

Lifesafety Power FPO150-B100C8D8E4-4SL1 Salto DV E4 Power Supply, 8 Door Keyless Remote Access, 150W 4A/12V 24V

Lifesafety Power Inc FPO150-B100C8D8E4-4SL1 Power Supply System delivers a robust solution for integrated keyless and remote access control across eight doors. This dual voltage power system offers 150W performance, providing 4A at both 12V and 24V, ensuring reliable operation for your access control needs. The compact design incorporates Salto CU modules for enhanced functionality while maintaining a secure, UL Listed setup. The system features eight lock control outputs and eight auxiliary outputs, each fused at 3A, and is programmable for failsafe or fail secure operation. With an onboard fire alarm interface, the FPO150 ensures swift response during emergencies. The labor-saving design includes pre-wired Flexpower sections and preinstalled brackets, simplifying installation while accommodating additional distribution outputs or network monitoring. Visual indicators for AC and DC outputs, along with system fault notifications, keep you informed of the system’s status. The enclosure's generous dimensions (24.00H x 20.00W x 6.50D in.) provide ample room for battery sets and proper wire management. With a built-in 2A charger and zero delay battery switchover, the FPO150 guarantees continuous operation, making it an essential component for any reliable access control system.

Power Supply System, 8 Door Integrated Keyless and Remote Access, Salto DV E4 150W 4A/12V and 4A/24V 8 Lock and 8 Aux Outputs Four Salto Plates

SALTO Unified power systems combine Flexpower power modules alongside Salto CU42E0, CU4200, or CU4EB8 Modules in one compact and secure UL Listed solution. This unit is a 150W 12V and 24V DC dual voltage access power system. The C8 lock control module provides eight access control inputs capable of voltage or dry contact activation, and eight fused outputs programmable for failsafe / fail secure operation at either 12 or 24 VDC and controlled by the integrated fire alarm interface circuit on the FPO. One D8 module provides eight fused outputs and each output is configurable for 12 or 24VDC operation. SALTO access enclosures are painted steel with four removable controller backplates and include lock, two (2) keys and tamper switch.

Features:

• FPO offline power supply:
• 120 or 230 VAC input
• 12 and 24 VDC outputs
• On board fire alarm interface
• Continuous and resettable DC
• Distributed outputs module:
• Eight auxiliary - fused at 3A each
• Eight lock control - fused at 3A each
• Expansion options:
• Increased power, multiple voltages
• Additional distribution outputs
• Network monitoring and reporting
• Labor saving design:
• Pre-wired Flexpower section
• Pre-formed knockouts
• Preinstalled brackets hold four SALTO modules
• Flexible backplate mounting locations
• Access panels mount on threaded studs - no drilling required
• Additional benefits:
• Wire management room
• 6.5" enclosure depth fits battery set
• Tamper switch, lock, dual key set standard
• Mounting hardware for access boards included

Specifications:

• Input Power:
• Input 120/230 VAC 50/60 Hz | 170 Watts (1.41 Amps)
• Overload and short circuit protection
• Over temperature protection
• Polarized AC power supply disconnect
• Output Power:
• 4A@12V and 4A@24V DC, 150W maximum combined output power
• Outputs: Continuous (DC1) Resettable (DC2)
• 8 auxiliary outputs, fused at 3A each
• 8 control outputs, fused at 3A each
• 120 mV output voltage ripple
• System Efficiency: 88% | System BTU Rating: 66 BTU/Hr
• Battery Charging:
• Independent built-in 2A charger for sealed lead acid or gel type batteries
• Microprocessor dual rate charging of 24 V battery sets
• Automatic switchover to standby battery when AC fails
• Zero delay when switching over to battery backup
• Supervision: AC Fail (form "C" contacts). System fail (form "C" contacts) may be triggered by low/no battery, short to earth ground and power supply failure
• Visual Indicators:
• AC input, DC1 and DC2 output
• System fault | AC fault | Short to earth ground | Reverse battery polarity
• Fire alarm input activated
• B100: DC input/output and fault
• C8: DC output and fault
• D8: DC output
• Enclosure Dimensions: Size: 24.00H x 20.00W x 6.50D in. (61.00 x 50.00 x 17.50 cm)
