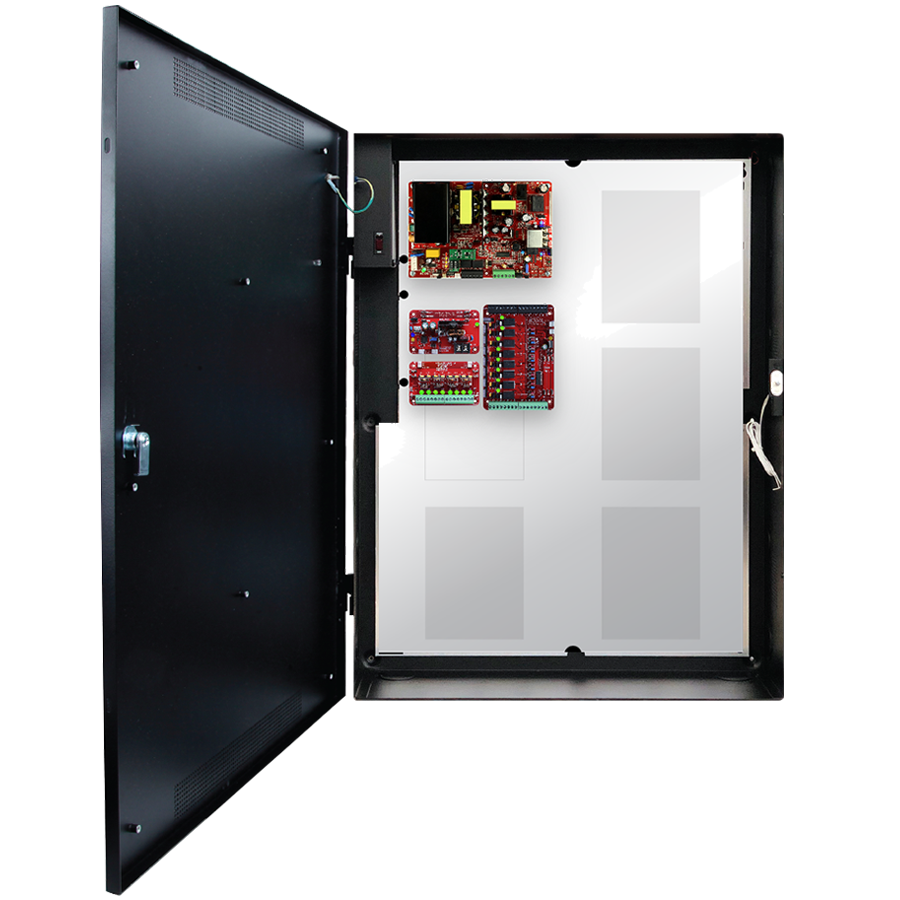

Lifesafety Power FPO150-B100C8D8PE6M E6 Enclosure, Mercury-Compatible Backplate, 150W Dual Voltage Power Supply

Lifesafety Power Inc FPO150-B100C8D8PE6M is a versatile and robust power supply solution designed for access control systems. This unit supports up to 8 doors and features an E6 enclosure, providing a secure and efficient environment for your security hardware needs. With a dual voltage capability of 12V and 24V DC, the FPO150 ensures compatibility with various systems while delivering a maximum output power of 150W. Equipped with a mercury-compatible backplate, this power supply includes an 8-output lock control module and an auxiliary distribution module, both fused for enhanced safety and reliability. The onboard fire alarm interface allows for seamless integration into existing systems, providing an added layer of security. The unit's labor-saving design features a pre-wired power section, removable backplate, and pre-punched knockouts, ensuring straightforward installation. Additional benefits such as a built-in 2A battery charger for sealed lead acid or gel type batteries support up to 80Ah battery sets, with zero voltage drop during switchover to battery backup. The enclosure dimensions of 30.00"H x 23.00"W x 6.50"D and a weight of 45 lbs make it a compact choice for power distribution in various settings. Choose the FPO150-B100C8D8PE6M for a reliable, efficient, and secure power supply solution.

4-8 Doors, E6 Enclosure, Mercury-Compatible Backplate, 150W Dual Voltage Power Supply, 8 Output Lock Module - Fused, 8 Output Auxiliary Distribution Module - Class 2 Power Limited

Mercury Unified power systems combine system power, lock power and distribution alongside Mercury Security LP series access hardware in one compact and secure UL Listed solution. Solutions are available from 2 to 24 doors, in single or dual voltage, standard or network managed. MCLASS unified power systems combine Flexpower power modules alongside Mercury Security access hardware in one compact and secure UL listed solution. This unit is a 12V and 24V DC dual voltage access power system. C8 lock control module provide eight access control inputs capable of voltage or dry contact activation and outputs programmable for failsafe / fail secure operation at either 12 or 24 VDC and controlled by the integrated fire alarm interface circuit on the FPO. D8 module provides eight auxiliary class II outputs and each output is configurable for 12 or 24VDC operation. MCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.

Features:

• FPO offline power supply:
• 120 or 230 VAC input
• 12 and 24 VDC outputs
• On board fire alarm interface
• Continuous and resettable DC
• Distributed outputs module:
• Eight auxiliary - class II at 2.5A each
• Eight lock control - fused at 3A each
• Expansion options:
• Increased power, multiple voltages
• Additional distribution outputs
• Network monitoring and reporting
• Labor saving design:
• Pre-wired power section
• Pre-punched knockouts
• Removeable backplate simplifies installs
• Pre-defined hole pattern for power section
• Access panels mount on threaded standoffs - no drilling required
• Additional benefits:
• Wire management room
• 6.5" enclosure depth fits battery set
• Tamper switch, lock, dual key set standard
• Mounting hardware for access boards included

Specifications:

• Input Power:
• Input 120/230 VAC 50/60 Hz | 170 Watts (1.41 Amps)
• Overload and short circuit protection
• Over temperature protection
• Polarized AC power supply disconnect
• Output Power:
• 4A@12V and 4A@24V DC, 150W maximum combined output power
• Outputs: Continuous (DC1) Resettable (DC2)
• 8 auxiliary outputs, fused at 3A each
• 8 control outputs, fused at 3A each
• 120 mV output voltage ripple
• System Efficiency: 88% | System BTU Rating: 66 BTU/Hr
• Battery Charging:
• Independent built-in 2A charger for sealed lead acid or gel type batteries
• Microprocessor dual rate charging of 12 or 24 V battery sets
• Charges up to 80Ah battery sets within UL limit
• Automatic switchover to standby battery when AC fails
• Zero voltage drop when switched over to battery backup
• Supervision: AC Fail (form "C" contacts). System fail (form "C" contacts) may be triggered by low/no battery, short to earth ground and power supply failure
• Visual Indicators:
• AC input, DC1 and DC2 output
• System fault | AC fault | Short to earth ground | Reverse battery polarity
• Fire alarm input activated
• B100: DC input/output and fault
• C8: DC output and fault
• D8P: DC outputs
• Enclosure Dimensions: Size: 30.00H x 23.00W x 6.50D in. (76.00 x 59.00 x 16.50 cm) | Weight: 45 lbs.
