Lifesafety Power FPO150-E1 E1 Enclosure with 150W Power Supply (FPO150), Single Voltage

Lifesafety Power Inc FPO150-E1 E1 Enclosure with 150W Power Supply delivers exceptional reliability for the lifesafety industry with its offline switch mode power supply and battery charger capabilities. This robust unit supports dual selectable outputs of 12 or 24 VDC, ensuring versatility for various applications. Housed in a durable painted steel enclosure, it features a locking mechanism and a tamper switch to enhance security. The FPO150-E1 is engineered for comprehensive system integration, offering one continuous output for system use and a second programmable output that can be configured for fail-safe or fail-secure operation, triggered by fire alarm disconnection. It also boasts a fire alarm interface for seamless egress lock control, ensuring safety during emergencies. Advanced fault detection and reporting capabilities ensure that you remain informed of any issues, with options for earth ground and battery presence checks. The microprocessor-controlled dual rate charging restores battery sets ranging from 4 to 80 amp hours efficiently, achieving 87% efficiency. With an input voltage of 120/230 VAC and a maximum input power of 170 Watts, the FPO150-E1 is designed for optimal performance. Its continuous power output of 12 Amps, along with programmable features, makes it an essential component for any security system.

E1 Enclosure with 150W Power Supply (FPO150), Single Voltage

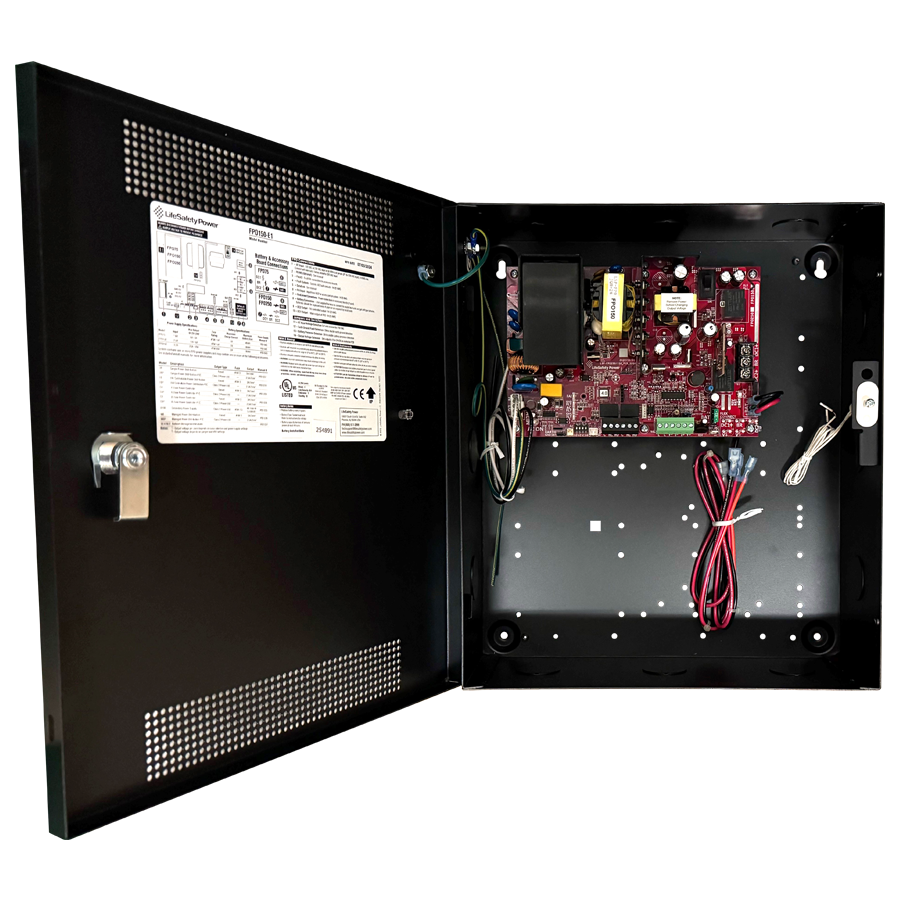

The Flexpower FPO150-E1 is an offline switch mode power supply battery charger specifically designed for the lifesafety industry. Capable of providing two power outputs, user selectable for 12 or 24 VDC, the unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space. One output provides continuous output power for system use, the second is programmable for either fail-safe or fail-secure operation, activated when the fire alarm disconnect is initiated. Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and current power supply status.

Features:

• Fully modular power management system
• Multiple outputs for system power, direct lock control and accessory power distribution modules
• Fire alarm interface for egress lock control (FAI)
• Configurable fail-safe / fail-secure modes of operation
• Comprehensive fault detection and reporting including optional earth ground and battery presence
• AC and System fault output relays can be delayed via PowerCom
• Microprocessor dual rate charging restores battery sets from 4 to 80 amp hours

Specifications:

• Input Voltage: 120/230 VAC
• Input Power (max): 170 Watts
• Output Voltage: 12 or 24 VDC
• Output Current: 12 or 6 Amps
• Battery Charge Capacity: 80Ah
• Efficiency: 87%
• Output Ripple: 120 mVp-p
• Line Regulation: 0.1 ±%
• Load Regulation: 2 ±%
• BTU Rating: 66 BTU/Hr
• Continuous Power Outputs: 1
• Switched Power Outputs: 1
• Fire Alarm Interface: Yes
