Lifesafety Power FPO150-E2 E2 Enclosure with 150W Power Supply (FPO150), Single Voltage

Lifesafety Power Inc FPO150-E2 E2 Enclosure with 150W Power Supply (FPO150) is a robust solution tailored for the lifesafety industry, offering reliability in critical power management. This offline switch mode power supply battery charger is equipped with a locking painted steel enclosure, enhancing security while housing integral battery space. With dual selectable outputs of 12 or 24 VDC, it caters to various system needs. Highlighting its versatility, one output delivers continuous power for system operations, while the other is programmable for fail-safe or fail-secure functions, triggered by fire alarm disconnects. Comprehensive fault detection and reporting mechanisms ensure peace of mind, providing data logging of fault occurrences and battery usage, alongside current power supply status. Key features include a fully modular power management system, multiple outputs for direct lock control and accessory power, and a fire alarm interface for egress lock control (FAI). Additionally, the microprocessor-controlled dual rate charging restores battery sets from 4 to 80 amp hours efficiently. With an input voltage of 120/230 VAC and a maximum power input of 170 Watts, the FPO150-E2 achieves an impressive 87% efficiency. This unit is designed for seamless integration into access control systems, ensuring security when it matters most.

E2 Enclosure with 150W Power Supply (FPO150), Single Voltage

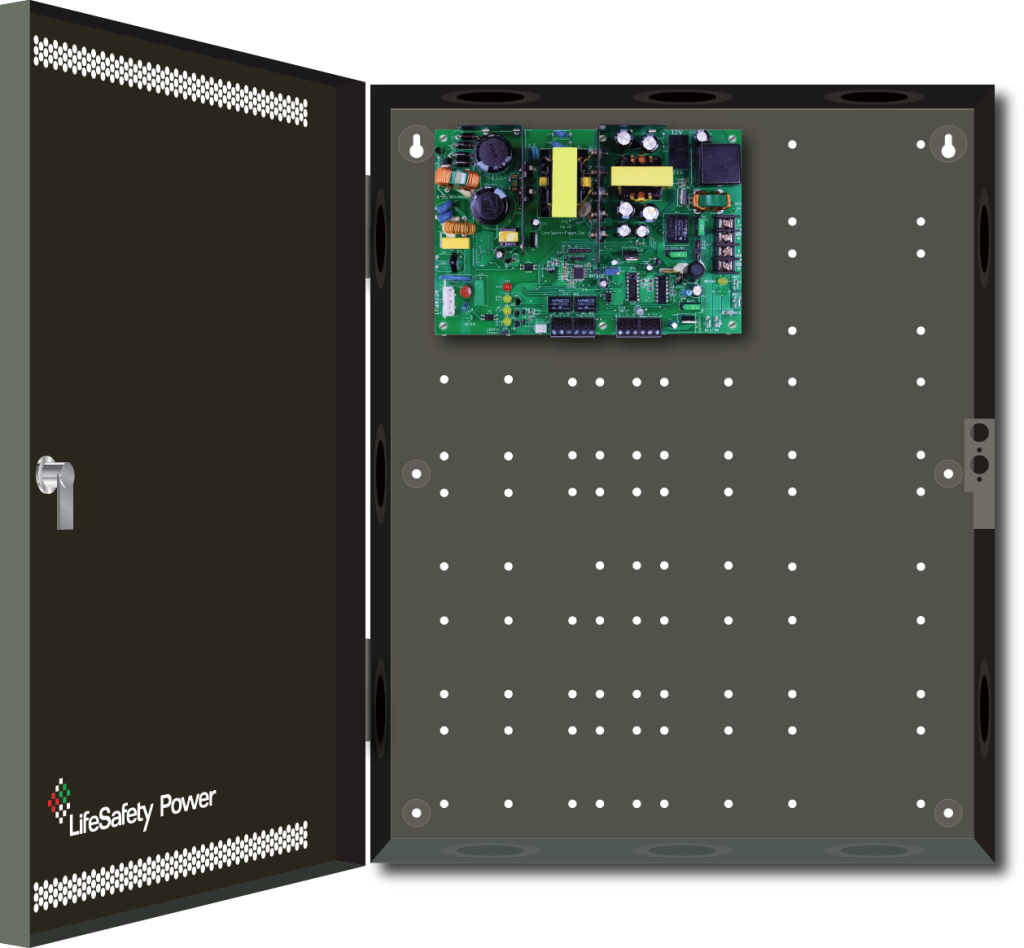

The Flexpower FPO150-E2 is an offline switch mode power supply battery charger specifically designed for the lifesafety industry. Capable of providing two power outputs, user selectable for 12 or 24 VDC, the unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space. One output provides continuous output power for system use, the second is programmable for either fail-safe or fail-secure operation, activated when the fire alarm disconnect is initiated. Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and current power supply status.

Features:

• Fully modular power management system
• Multiple outputs for system power, direct lock control and accessory power distribution modules
• Fire alarm interface for egress lock control (FAI)
• Configurable fail-safe / fail-secure modes of operation
• Comprehensive fault detection and reporting including optional earth ground and battery presence
• AC and System fault output relays can be delayed via PowerCom
• Microprocessor dual rate charging restores battery sets from 4 to 80 amp hours

Specifications:

• Input Voltage: 120/230 VAC
• Input Power (max): 170 Watts
• Output Voltage: 12 or 24 VDC
• Output Current: 12 or 6 Amps
• Battery Charge Capacity: 80Ah
• Efficiency: 87%
• Output Ripple: 120 mVp-p
• Line Regulation: 0.1 ±%
• Load Regulation: 2 ±%
• BTU Rating: 66 BTU/Hr
• Continuous Power Outputs: 1
• Switched Power Outputs: 1
• Fire Alarm Interface: Yes

Resources

• Cut Sheet
