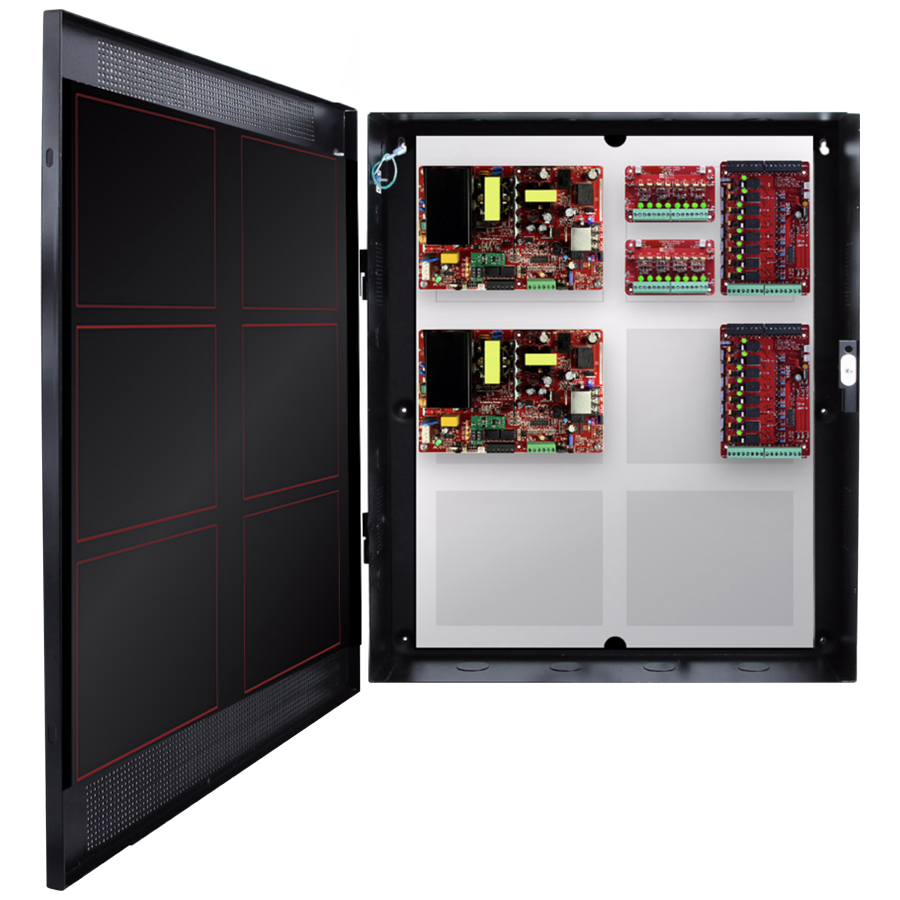

Lifesafety Power FPO150/250-2C82D8PE4M1 16-Door E4 Enclosure, Dual Voltage Power Supply, 2x Lock Aux Modules

Lifesafety Power Inc FPO150/250-2C82D8PE4M1 is a robust and versatile power supply solution designed to support up to 16 doors. This dual voltage power supply operates at both 150W and 250W, providing flexibility and reliability for your access control needs. The unit features an E4 enclosure, complete with two mercury-compatible backplates, ensuring compatibility with a range of Mercury Security LP Series access hardware. Designed for efficiency, the FPO system offers 12V and 24V DC outputs and includes a built-in fire alarm interface. With two C8 lock control modules, it provides sixteen inputs for voltage or dry contact activation, alongside sixteen programmable outputs that support both failsafe and fail secure operations. The inclusion of two D8P auxiliary distribution modules further enhances its functionality, offering additional class 2 outputs. Installation is a breeze thanks to its labor-saving design, which features a pre-wired power section, removable backplate, and predefined hole patterns. The enclosure is crafted from painted steel, with a depth of 4.5 inches to accommodate battery sets. Security features like a tamper switch, lock, and dual key set come standard, ensuring both safety and convenience for building professionals and knowledgeable homeowners alike.

Up to 16 Doors, E4 Enclosure, 2x Mercury-Compatible Backplates, 150W and 250W Dual Voltage Power Supply, 2x 8 Output Lock Module - Fused, 2x 8 Output Auxiliary Distribution Module - Class 2 Power Limited

Mercury Unified power systems combine system power, lock power and distribution alongside Mercury Security LP Series access hardware in one compact and secure UL Listed solution. Solutions are available from 2 to 24 doors, in single or dual voltage, standard or network managed. MCLASS Unified power systems combine Flexpower power modules alongside Mercury Security access hardware in one compact and secure UL Listed solution. This unit is a 12V and 24V DC dual voltage access power system. Two C8 lock control modules provide sixteen access control inputs capable of voltage or dry contact activation, and sixteen outputs programmable for failsafe / fail secure operation at either 12 or 24 VDC and controlled by the integrated fire alarm interface circuit on the FPO. Two D8P modules provide sixteen auxiliary class 2 outputs and each output is configurable for 12 or 24VDC operation. MCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.

Features:

• FPO offline power supply:
• 120 or 230 VAC input
• 12 and 24 VDC outputs
• On board fire alarm interface
• Continuous and resettable DC
• Distributed outputs module:
• Sixteen auxiliary, class II power limited at 2.5A each
• Sixteen controlled, fused at 3A each
• Expansion options:
• Increased power, multiple voltages
• Additional distribution outputs
• Network monitoring and reporting
• Labor saving design:
• Pre-wired power section
• Pre-punched knockouts
• Removeable backplate simplifies installs
• Pre-defined hole pattern for power section
• Access panels mount on threaded standoffs - no drilling required
• Additional benefits:
• Wire management room
• 4.5" enclosure depth fits battery set
• Tamper switch, lock, dual key set standard
• Mounting hardware for access boards included

Specifications:

• Input Power:
• Input 120/230 VAC 50/60 Hz | 452 Watts
• Overload and short circuit protection
• Over temperature protection
• Polarized AC power supply disconnect
• Output Power:
• FPO150: 12V/12A or 24V/6A | 150 Watts
• FPO250: 12V/20A or 24V/10A | 250 Watts
• Outputs: Continuous (DC1) Resettable (DC2)
• 16 control outputs, fused at 3A each
• 16 auxiliary outputs, class II power limited at 3A each
• 120 mV output voltage ripple
• System Efficiency: 87% | System BTU Rating: 175 BTU/Hr
• Battery Charging:
• Independent built-in 2A charger for sealed lead acid or gel type batteries
• Microprocessor dual rate charging of 12 or 24 V battery sets
• Charges up to 80Ah battery sets within UL limit
• Automatic switchover to standby battery when AC fails
• Zero voltage drop when switched over to battery backup
• Supervision: AC Fail (form "C" contacts). System fail (form "C" contacts) may be triggered by low/no battery, short to earth ground and power supply failure
• Visual Indicators:
• AC input, DC1 and DC2 output
• System fault | AC fault | Short to earth ground | Reverse battery polarity
• Fire alarm input activated
• C8: DC input/output and fault
• D8P: DC outputs
• Enclosure Dimensions: Size: 24.00H x 20.00W x 6.50D in. (61.00 x 50.00 x 11.50 cm) | Weight: 25 lbs.
