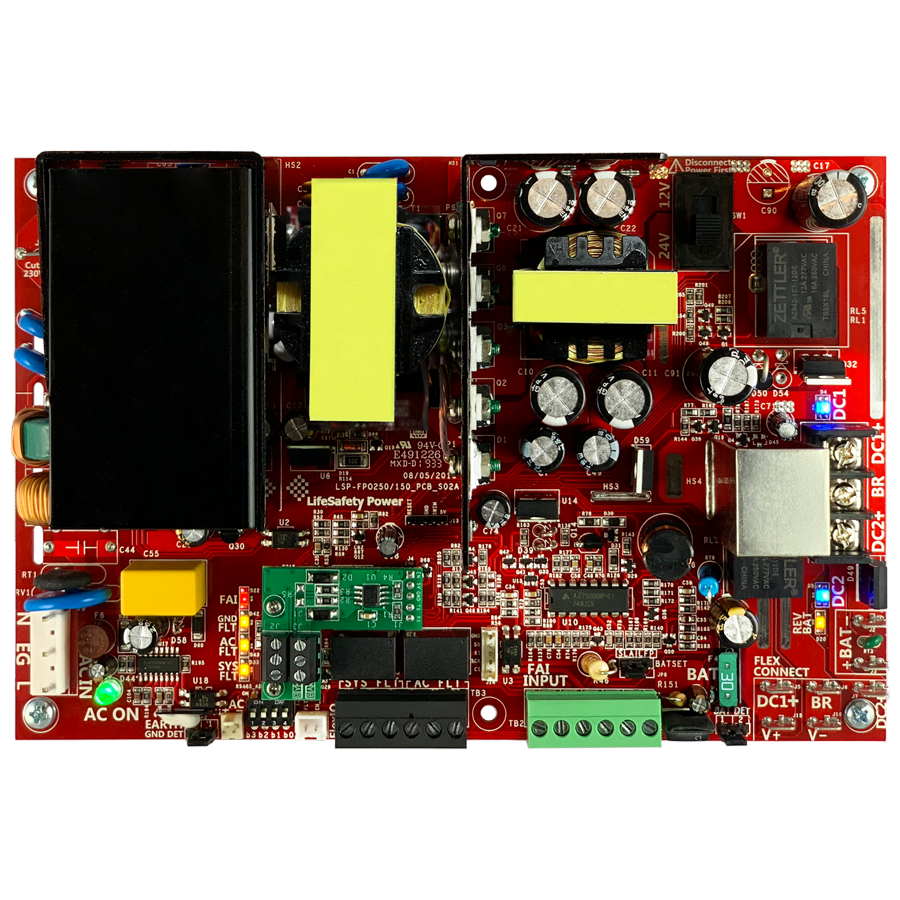

Lifesafety Power FPO250-BOXED 150W Power Supply Board, 12A/12V or 6A/24V

Lifesafety Power Inc FPO250-BOXED 150W Power Supply Board, 12A/12V or 6A/24V is an essential component for providing reliable power to your security systems. This power supply module, part of the flagship FPO series, is designed to meet both US and international regulatory standards, making it versatile for various applications. One standout feature is the VSelect switch, which allows for easy configuration of output voltage between 12VDC and 24VDC, simplifying service inventory by eliminating the need to stock multiple units. The TruWatt technology ensures a constant output power capability, allowing you to use the same number of locking devices at either voltage setting. With the SureCharge microprocessor-controlled charger, you can expect optimal battery charging without risk of damage. Installation is made straightforward through the FlexConnect system, which utilizes a common mounting footprint and predrilled holes. The Datalink feature enables monitoring of key power functions via a PC or browser interface with the included PowerCom management software. Additionally, the FPO250-BOXED is RoHS compliant and energy efficient, aligning with modern environmental standards. In terms of specifications, it features built-in overload protection, battery backup capabilities, and LED indicators for visual monitoring of system performance, making it a reliable choice for enhancing your security infrastructure.

150W Power Supply Board, 12A/12V or 6A/24V

Power supply modules are used to supply the system’s power to the other modules and connected devices. The FPO series is LifeSafety Power's flagship line of power supplies. Full-featured with US & International regulatory listings, the FPO series is applicable in most applications.

Features:

• VSelect - One single switch for configuring the output between 12 and 24VDC eliminates field errors and allows for the reduction and simplification of service inventory by eliminating the necessity of stocking units in each voltage.
• TruWatt - Output power capability of the power supply remains constant regardless of the output voltage setting. For example, a Flexpower 250 watt supply will provide 10 amps at 24VDC and 20 amps at 12VDC, allowing the same number of locking devices to be used at either the 12 or 24V setting.
• SureCharge - The microprocessor controlled constant current charging process used by the FPO power supply guarantees proper charging current for the battery and the fastest charge time without stress or damage to the battery.
• FlexConnect - Power supply and accessory board interconnection system uses common mounting footprints, predrilled mounting holes, snap-in standoffs, pluggable wires, and a dual buss distribution architecture to simplify installation and service.
• Datalink - Key power functions are monitored and reported through PC or browser interface with the PowerCom management software.
• GreenSmart - Flexpower systems are RoHs compliant, lead-free, and meet the latest state, federal and European requirements for energy efficiency.

Specifications:

• Input: FPO75, FPO150, FPO250 : 110VAC ±10%, 50/60Hz
• Outputs:
• DC1 output continuous
• DC2 output switched on FAI Input
• Overload & short circuit protection with auto-restart
• Battery Backup:
• Built-in microprocessor controlled smart charger
• Charges Sealed Lead Acid (SLA) or Lithium Iron Phosphate
• Auto switchover to battery with zero transfer time
• Integrated low battery cutoff
• Supervision:
• AC fail, Battery fail, System fault (form "C")
• Low power shutdown when battery voltage too low
• Fire Alarm Disconnect Activation:
• DC voltage: 9 to 33VDC, 3 to 15mA
• Dry contact NO/NC
• Optional Fire Alarm latching
• LED Visual Indicators: AC input, DC output, system faults, fire alarm activation
