Lifesafety Power FPO250-E1 E1 Enclosure with 20 Amp High Inrush, 250W Power Supply, Single Voltage

Lifesafety Power Inc FPO250-E1 E1 Enclosure with 20 Amp High Inrush, 250W Power Supply offers robust performance tailored for the lifesafety industry. This offline switch mode power supply battery charger is engineered to provide user-selectable outputs of either 12 or 24 VDC. Encased in a durable painted steel enclosure, it features a locking mechanism and a tamper switch for added security, alongside designated space for battery installation. One of the standout features of the FPO250-E1 is its dual-output capability. It delivers continuous power for operational systems and offers a second output that can be programmed for fail-safe or fail-secure modes, triggered by fire alarm disconnections. This ensures that safety protocols are maintained in emergencies. The system includes comprehensive fault detection and reporting capabilities, with programmable fault delays, and even logs data for battery usage and supply status. With an input voltage of 120/230 VAC and a maximum input power of 282 Watts, it efficiently supports a battery charge capacity of up to 80Ah. The power supply operates at an impressive efficiency of 88% and features a fire alarm interface for seamless egress lock control. Ideal for access control and alarm systems, the FPO250-E1 stands as a reliable choice for securing your premises.

E1 Enclosure with 20 Amp High Inrush, 250W Power Supply, Single Voltage

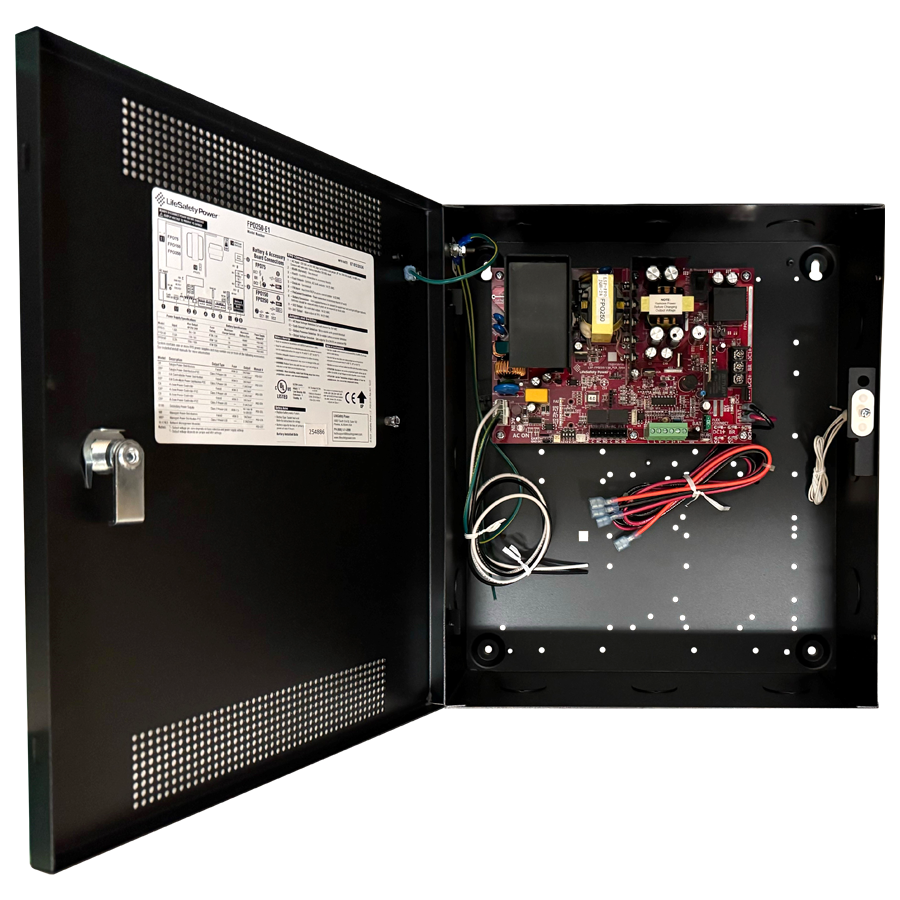

The Flexpower FPO250-E1 is an offline switch mode power supply battery charger specifically designed for the lifesafety industry. Capable of providing two power outputs, user selectable for 12 or 24 VDC, the unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space. One output provides continuous output power for system use, the second is programmable for either fail-safe or fail-secure operation, activated when the fire alarm disconnect is initiated. Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and current power supply status.

Features:

• Fully modular power management system
• Multiple outputs for system power, direct lock control and accessory power distribution modules
• Fire alarm interface for egress lock control (FAI)
• Configurable fail-safe / fail-secure modes of operation
• Comprehensive fault detection and reporting including optional earth ground and battery presence
• AC and system fault output relays can be delayed via PowerCom
• Microprocessor dual rate charging restores battery sets from 4 to 80 amp hours

Specifications:

• Input Voltage: 120/230 VAC
• Input Power (max): 282 Watts
• Output Voltage: 12 or 24 VDC
• Output Current: 20 or 10 Amps
• Battery Charge Capacity: 80Ah
• Efficiency: 88%
• Output Ripple: 120 mVp-p
• Line Regulation: 0.1 ±%
• Load Regulation: 2 ±%
• BTU Rating: 109 BTU/Hr
• Continuous Power Outputs: 1
• Switched Power Outputs: 1
• Fire Alarm Interface: Yes
