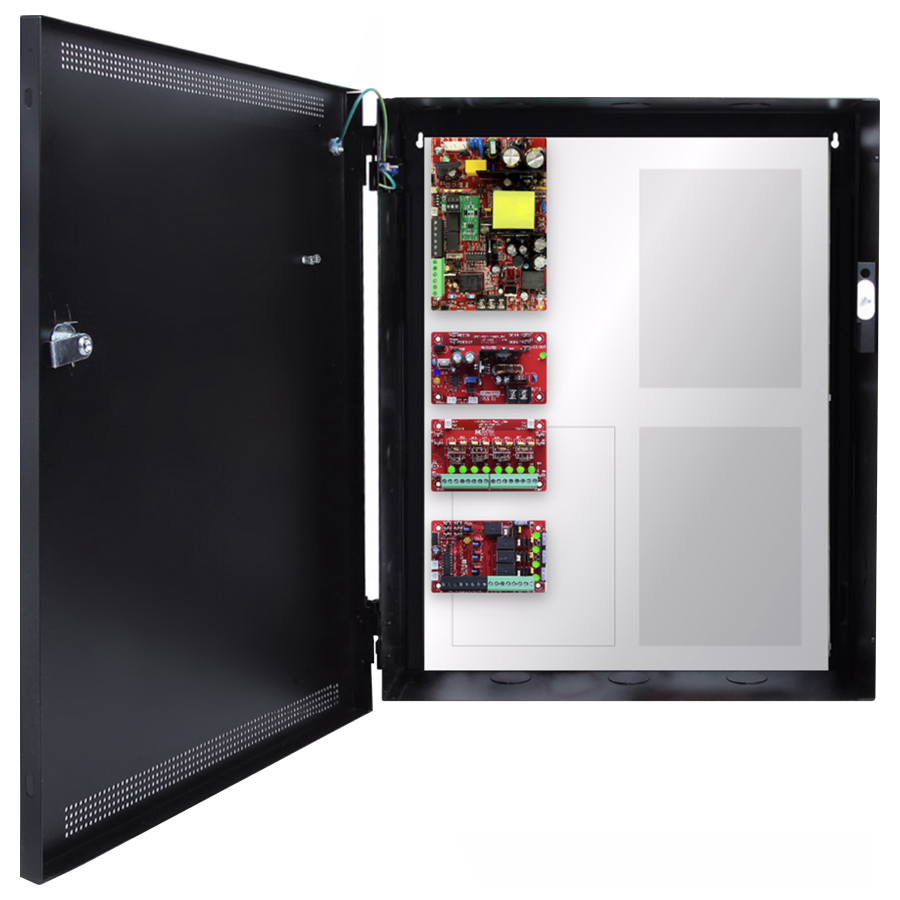

Lifesafety Power FPO75-B100C4D8PE2M E2 Enclosure, Mercury-Compatible Backplate, 75W Dual Voltage Power Supply Modules

Lifesafety Power Inc FPO75-B100C4D8PE2M is a robust and versatile access power supply designed to support 2 to 4 doors while ensuring compliance with code requirements in Oregon and Washington. This unit features a dual voltage capability, providing both 12V and 24V DC outputs, making it adaptable for diverse applications. Equipped with a 75W maximum output, the system includes a fused 4-output lock module and an 8-output auxiliary distribution module, allowing for efficient and reliable power distribution. The integrated fire alarm interface ensures seamless operation during emergencies, enhancing overall safety. The FPO model boasts a labor-saving design with pre-wired sections, pre-punched knockouts, and a removable backplate, simplifying installation processes and reducing time on site. Additionally, the painted steel enclosure is not only sturdy but also features a tamper switch and comes with dual keys for added security. With an independent 1A charger for battery support and automatic switchover during power failures, this system guarantees continuous operation. Visual indicators for AC and DC outputs, along with supervision features, provide real-time monitoring and fault detection. The compact dimensions (20.00H x 16.00W x 4.50D in) and lightweight design (18 lbs) make the FPO75-B100C4D8PE2M an excellent choice for building professionals seeking reliable access control solutions.

2-4 Doors, E2 Enclosure, Mercury-Compatible Backplate, 75W Dual Voltage Power Supply, 4 Output Lock Module - Fused, 8 Output Auxiliary Distribution Module - Class 2 Power Limited, P Required by Code for Oregon Washington

Mercury Unified power systems combine system power, lock power and distribution alongside Mercury Security LP Series access hardware in one compact and secure UL Listed solution. Solutions are available from 2 to 24 doors, in single or dual voltage, standard or network managed. MCLASS Unified Power Systems combine Flexpower power modules alongside Mercury Security access hardware in one compact and secure UL Listed solution. This unit is a 12V and 24V DC dual voltage access power system. The C4 lock control module provides four access control inputs capable of voltage or dry contact activation and outputs programmable for failsafe / fail secure operation at either 12 or 24 VDC and controlled by the integrated fire alarm interface circuit on the FPO. One D8P module provides eight auxiliary class II outputs and each output is configurable for 12 or 24VDC operation. MCLASS enclosures are painted steel with removable backplate and include lock, two (2) keys and tamper switch.

Features:

• FPO offline power supply:
• 120 or 230 VAC input
• 12 and 24 VDC outputs
• On board fire alarm interface
• Continuous and resettable DC
• Distributed outputs module:
• Eight auxiliary - class II at 2.5A each
• Four lock control - fused at 3A each
• Expansion options:
• Increased power, multiple voltages
• Additional distribution outputs
• Network monitoring and reporting
• Labor saving design:
• Pre-wired power section
• Pre-punched knockouts
• Removeable backplate simplifies installs
• Pre-defined hole pattern for power section
• Access panels mount on threaded standoffs - no drilling required
• Additional benefits:
• Wire management room
• 4.5" enclosure depth fits battery set
• Tamper switch, lock, dual key set standard
• Mounting hardware for access boards included

Specifications:

• Input Power:
• Input 120/230 VAC 50/60 Hz | 83 Watts (0.70A)
• Overload and short circuit protection
• Over temperature protection
• Polarized AC power supply disconnect
• Output Power:
• 2A@12V and 2A@24V DC, 75W maximum combined output power
• Outputs: Continuous (DC1) Resettable (DC2)
• 4 control outputs, fused at 3A each
• 8 auxiliary outputs, class II power limited at 2.5A each
• 120 mV output voltage ripple
• System Efficiency: 83% | System BTU Rating: 33 BTU/Hr
• Battery Charging:
• Independent built-in 1A charger for sealed lead acid or gel type batteries
• Microprocessor dual rate charging of 12 or 24 V battery sets
• Automatic switchover to standby battery when AC fails
• Zero voltage drop when switched over to battery backup
• Supervision: AC Fail (form "C" contacts). System fail (form "C" contacts) may be triggered by low/no battery, short to earth ground and power supply failure
• Visual Indicators:
• AC input, DC1 and DC2 output
• System fault | AC fault | Short to earth ground | Reverse battery polarity
• Fire alarm input activated
• B100: DC input/output and fault
• C4: DC output and fault
• D8P: DC output
• Enclosure Dimensions: Size: 20.00H x 16.00W x 4.50D in. (50.00 x 40.00 x 11.50 cm) | Weight: 18 lbs
