Lifesafety Power FPO75-B100C4E1-2SL1 Salto DV E1 75W Power Supply, 4 Door Keyless Mobile Access, 12V/24V

Lifesafety Power Inc FPO75-B100C4E1-2SL1 Power Supply System is an advanced solution designed to support 4-door keyless and mobile access systems, specifically tailored for Salto controllers like CU42E0, CU4200, or CU4EB8. This dual voltage power supply operates at 12V and 24V, delivering a robust maximum output of 75W, ensuring reliable performance for your access control needs. This unit features a C4 lock control module with four outputs, each capable of voltage or dry contact activation, making it adaptable for various installation requirements. The built-in fire alarm interface allows for seamless integration with your existing security systems, enhancing overall safety. Additionally, the pre-wired power section and pre-punched knockouts streamline installation, saving time and labor costs. With a compact design measuring 14.00H x 12.00W x 4.50D inches and a weight of just 14 lbs, the FPO75-B100C4E1-2SL1 fits easily into tight spaces while accommodating battery sets. Key features also include a tamper switch, dual key set, and multiple voltage options for future expansion. This power supply system is ideal for professionals seeking flexibility and efficiency in securing their properties.

Power Supply System, 4 Door Keyless and Mobile Access, Salto DV E1 75W 2A/12V and 2A/24V 4 Lock Outputs, Two Salto Plates

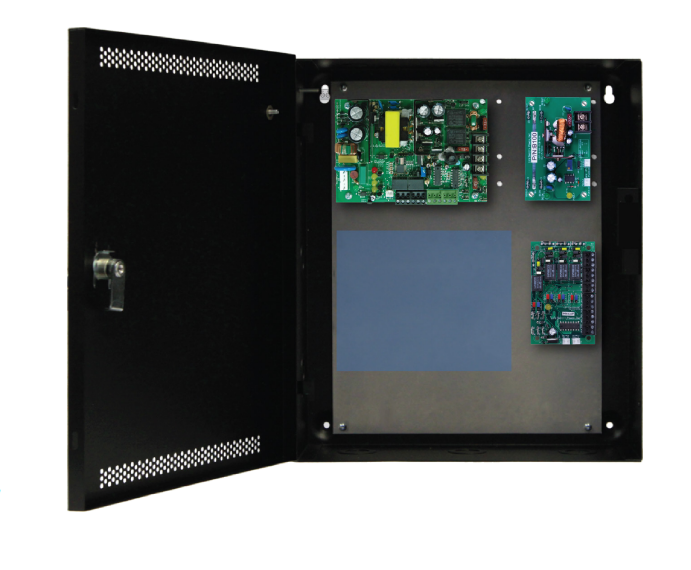

All-in-one power solutions for 4-10 door Salto systems using CU42E0, CU4200, or CU4EB8 controllers. Single, dual voltage/Networked. Salto unified power systems offers maximum flexibility, functionality and savings to access system designers. Salto Unified enclosures are engineered to house Flexpower boards in one compact, secure system. This unit is a 75W 12V and 24V DC dual voltage access power system. The C4 lock control module provides four access control inputs capable of voltage or dry contact activation, and four fused outputs programmable for failsafe / fail secure operation at either 12 or 24 VDC and controlled by the integrated fire alarm interface circuit on the FPO. Salto access enclosures are painted steel with two removable controller backplates and include lock, two (2) keys and tamper switch.

Features:

• FPO offline power supply:
• 120 or 230 VAC input
• 12 and 24 VDC outputs
• On board fire alarm interface
• Continuous and resettable DC
• Distributed output module: Four lock control - fused at 3A each
• Expansion options:
• Increased power, multiple voltages
• Additional distribution outputs
• Network monitoring and reporting
• Labor saving design:
• Pre-wired power section
• Pre-punched knockouts
• Preinstalled brackets hold two Salto controllers
• Flexible backplate mounting locations
• Access panels mount on threaded studs - no drilling required
• Additional benefits:
• Wire management room
• 4.5" enclosure depth fits battery set
• Tamper switch, lock, dual key set standard
• Mounting hardware for access boards included

Specifications:

• Input Power:
• Input 120/230 VAC 50/60 Hz | 83 Watts (0.69A)
• Overload and short circuit protection
• Over temperature protection
• Polarized AC power supply disconnect
• Output Power:
• 2A@12V and 2A@24V DC, 75W maximum combined output power
• Outputs: Continuous (DC1) Resettable (DC2)
• 4 controlled outputs, fused at 3A each
• 120 mV output voltage ripple
• System Efficiency: 83% | System BTU Rating: 33 BTU/Hr
• Battery Charging:
• Independent built-in 1A charger for sealed lead acid or gel type batteries
• Microprocessor dual rate charging of 24 V battery sets
• Automatic switchover to standby battery when AC fails
• Zero delay when switching over to battery backup
• Supervision: AC Fail (form "C" contacts) System fail (form "C" contacts) may be triggered by low/no battery, short to earth ground and power supply failure
• Visual Indicators:
• AC input, DC1 and DC2 output
• System fault | AC fault | Short to earth ground | Reverse battery polarity
• Fire Alarm Input activated
• B100: DC input, output and Fault
• C4: DC input, output and Fault
• Enclosure Dimensions: Size: 14.00H x 12.00W x 4.50D in. (35.00 x 31.00 x 11.50 cm) | Weight: 14 lbs
