Lifesafety Power Inc FPO75-E1 E1 Enclosure with 75W Power Supply is an advanced offline switch mode power supply and battery charger tailored for the lifesafety industry. This robust unit delivers two user-selectable power outputs of either 12 or 24 VDC, housed in a durable painted steel enclosure equipped with a tamper switch and integral battery space. The FPO75-E1 features one continuous output for system use, while the second output is programmable for fail-safe or fail-secure operation, engaging upon fire alarm disconnect. This capability ensures heightened security and adaptability in various applications. Additionally, the system boasts comprehensive fault detection and reporting, including programmable fault delays, as well as datalogging for tracking fault occurrences, battery usage, and power supply status. With an input voltage of 120/230 VAC and a maximum input power of 85 Watts, the FPO75-E1 efficiently provides outputs of 6 or 3 Amps, ensuring reliable performance. Its microprocessor-controlled dual rate charging restores battery sets from 4 to 40 amp hours, maximizing uptime. This modular power management system supports multiple outputs for system power, lock control, and accessory power distribution, making it an ideal choice for access control, alarm power supplies, and more.

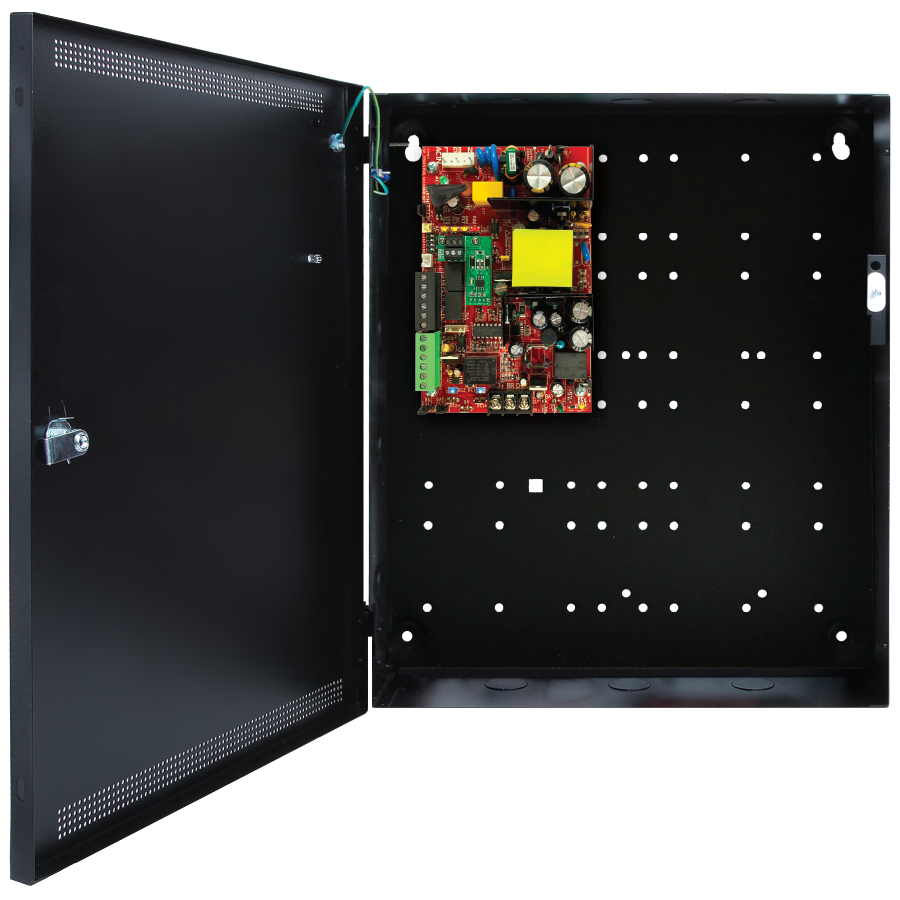

E1 Enclosure with 75W Power Supply, Single Voltage

The Flexpower FPO75-E1 is an offline switch mode power supply-battery charger specifically designed for the lifesafety industry. Capable of providing two power outputs, user selectable for 12 or 24 VDC, the unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space. One output provides continuous output power for system use, the second is programmable for either fail-safe or fail-secure operation, activated when the fire alarm disconnect is initiated. Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and current power supply status. Single, dual, and multi-voltage power systems in enclosures for simple requirements or for expansion with LSP accessory boards. Multiple enclosure sizes available. Each FPO power supply provides one pair of outputs, user selectable for 12 or 24 VDC, the unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space. One output of a pair provides continuous output power for system use, the second is programmable for either fail-safe or fail-secure operation, activated when the fire alarm disconnect is initiated. Models with a B100 provide dual voltage output with a single AC connection. Flexpower accessory boards can be added to a Flexpower system in ANY combination based on job requirements and system retains its complete agency listing.

Features:

• Fully modular power management system
• Multiple outputs for system power, direct lock control and accessory power distribution modules
• Fire alarm interface for egress lock control (FAI)
• Configurable fail-safe / fail-secure modes of operation
• Comprehensive fault detection and reporting including optional earth ground and battery presence
• AC and System fault output relays can be delayed via PowerCom
• Microprocessor dual rate charging restores battery sets from 4 to 40 amp hours

Specifications:

• Input Voltage: 120/230 VAC
• Input Power (max): 85 Watts
• Output Voltage: 12 or 24 VDC
• Output Current: 6 or 3 Amps
• Battery Charge Capacity: 40Ah
• Efficiency: 83%
• Output Ripple: 120 mVp-p
• Line Regulation: 0.1 ±%
• Load Regulation: 2 ±%
• BTU Rating: 33 BTU/Hr
• Continuous Power Outputs: 1
• Switched Power Outputs: 1
• Fire Alarm Interface: Yes
