Lifesafety Power RB8-BOXED 8 Output Auxiliary Distribution Module, Fused

Lifesafety Power Inc RB8-BOXED 8 Output Auxiliary Distribution Module, Fused offers a versatile solution for your access control needs. This dual 8A relay module features form C dry relay contacts, making it suitable for a variety of general-purpose applications. Designed with adaptability in mind, the RB8-BOXED self-configures for either 12 or 24VDC input, allowing for seamless integration into existing systems. With an impressive 8 Amp contact rating, this module can handle both AC and DC voltage, including 28VDC and 120VAC. The jumper selectable option allows you to choose between standard operation and sensitive trip settings, enhancing its functionality for specific requirements. This flexibility is complemented by its compatibility with SnapTrack for listed applications, or it can be easily mounted using double stick tape for non-listed uses. The RB8-BOXED is not only efficient but also reliable, making it an ideal choice for building professionals and knowledgeable homeowners seeking dependable security solutions. Whether you are enhancing an alarm system or integrating into a CCTV setup, this auxiliary distribution module is designed to meet your needs with ease.

8 Output Auxiliary Distribution Module, Fused

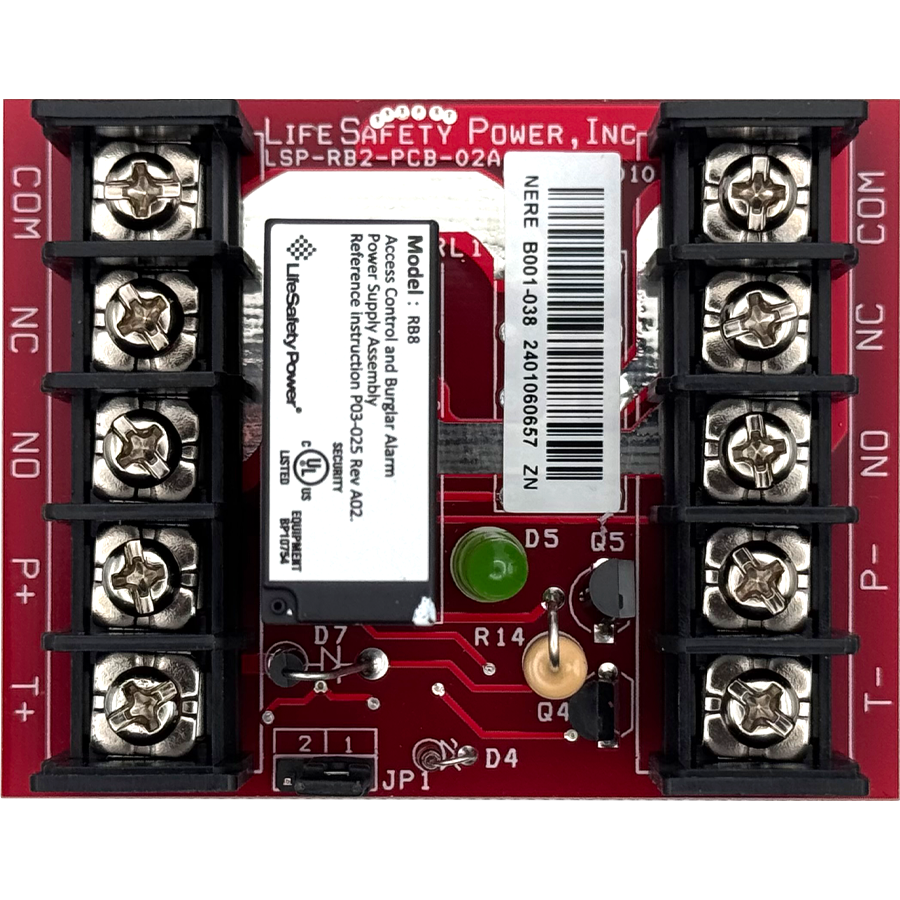

The LifeSafety Power RB8 relay provides dual 8A form C dry relay contacts for general purpose usage and is listed for use in access systems. They self-configure for either a 12 or 24VDC input and can be used either as a standard relay module, or as a sensitive trip relay (optional via jumper setting). Mounting is via Snaptrack for listed applications or via double stick tape for non-listed applications.

Features:

• Double pole, double throw (DPDT, 2 form C) contact set
• Operating voltage is 12/24VDC auto sensing
• 8 Amp contact rating
• Contacts switch AC or DC voltage: 28VDC, 120VAC
• Jumper selectable for standard operation or sensitive trip (positive or negative)
• SnapTrack compatible
