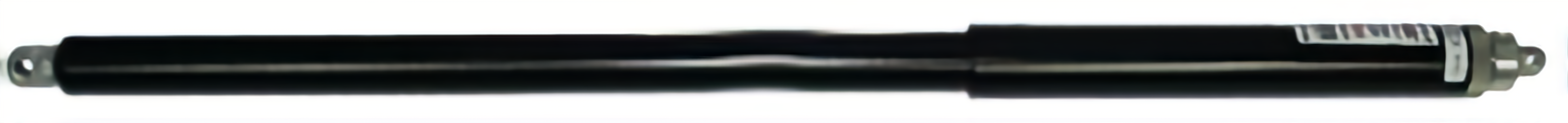

Lockey USA TB650 BLACK Adjustable Gate Closer Black

Lockey USA TB650 BLACK Adjustable Gate Closer Black delivers a reliable solution for ensuring your gates close securely and efficiently. This adjustable hydraulic closer is designed to accommodate gates weighing between 150 and 250 lbs, making it suitable for both small and large installations. With a closing speed that can be tailored to your preference, the TB650 provides a customizable experience, ensuring smooth operation every time. Installation is versatile with the option to mount the closer on the top, middle, or bottom of the gate, and it is compatible with both left and right-hand gates. Designed for gates with a width of 44 to 72 inches and a maximum opening angle of 100 degrees, this closer is ideal for various materials including vinyl, steel, wood, and chain link. For chain link gates, the TB-LINX mounting kit is available separately. Constructed from durable steel with a PVC-coated finish, the TB650 can withstand temperatures ranging from 15 to 122 degrees Fahrenheit. This ensures reliable performance in a variety of climates. Included mounting brackets and a fitting bar make installation straightforward, and it is important to use a gate stop to retain the product warranty and restrict the gate opening angle. Secure your property with the dependable Lockey USA TB650 BLACK Adjustable Gate Closer.

Adjustable Gate Closer Black

Features:

• Adjustable hydraulic (nitrogen gas) controlled closing speed
• Closes small and large gates from 150-250 lbs.
• Installs on top/middle/bottom
• Works with left and right hand gates
• Mounts on opening side of gate
• Pushes the gate closed
• Mounting brackets and fitting bar included
• Not compatible with gates less than 30 inches wide
• To retain product warranty & restrict gate opening angle, a gate stop must be installed

Specifications:

• Gate Weight: 150-250 lbs.
• Gate Width: 44-72"
• Max. Opening Angle: 100 degrees
• Min. Operating Temperature: 15 degrees Fahrenheit. Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.
• Max. Operating Temperature: 122 degrees Fahrenheit. Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.
• Type of Gate Material: Vinyl, steel, wood, chain link. TB650 can be mounted on chain link gates with the TB-LINX. TB-LINX sold separately.
• Closing/Latch Method: Hydraulic/nitrogen gas
• Material: Steel
• Finish: PVC coated
• Hinge Arrangements: In-line or offset
• Opening Pressure: Approx. 8-18 lbs.
• Finishes: Black, white, grey

Resources

• Cut Sheet
