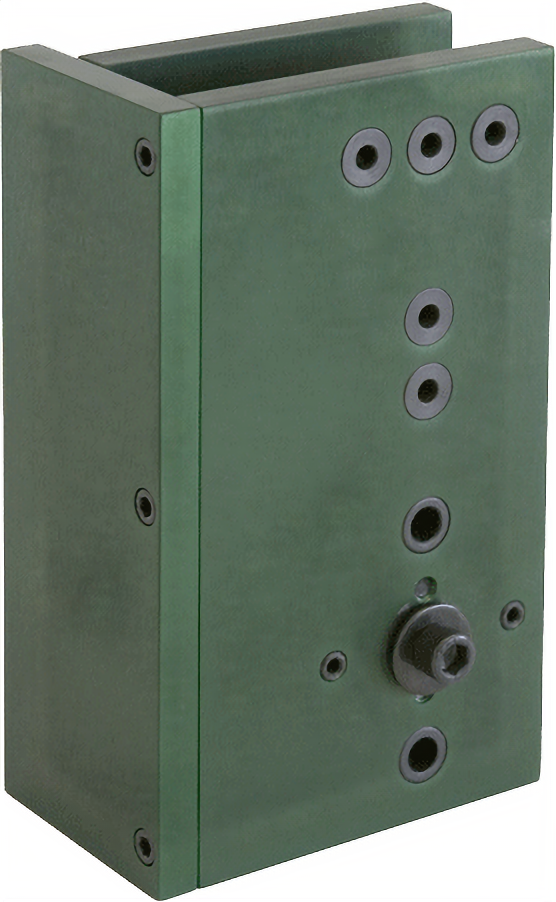

Major HIT-102 Drill Guide for Simplex-Trilogy T2 T3

Major Mfg Co Inc HIT-102 Drill Guide for Simplex-Trilogy T2 T3 is an essential tool for locksmiths and building professionals who require precision and efficiency in their installations. This combination unit is expertly designed to accommodate Kaba Ilco (Simplex) and Alarm lock pushbutton locks, ensuring versatility for various applications. The HIT-102 allows for quick location and drilling of all necessary thru bolt holes, including lever holes, anchor tabs, and wire runs. It is specifically engineered for doors with a 2-3/4" backset and thickness ranging from 1-3/8" to 2", making it a reliable choice for a wide range of door types. With bushings on both the front and back plates, this drill guide enables seamless drilling from either side of the door, significantly enhancing efficiency. Replacing the HIT-10 drill guide, the HIT-102 is an upgrade that simplifies the installation process. For locks with a 3-3/4" or 5" backset, the optional HIT-BAK adapter is available for optimal compatibility. This sturdy and practical tool is indispensable for any locksmith looking to streamline their workflow while maintaining high standards of accuracy and quality. Whether you're working on residential or commercial projects, the HIT-102 is designed to meet your drilling needs with ease.

Drill Guide for Simplex-Trilogy T2 T3

• A combination unit designed for Kaba Ilco (Simplex) and Alarm lock pushbutton locks.
• Quickly locates and permits drilling of all thru bolt holes including lever holes, anchor tabs, and wire run for Trilogy and combination change hole for Kaba Ilco.
• The HIT-102 is for use with 2-3/4" backset and 1-3/8" to 2" thick doors.
• Unit has bushings on both front and back plate to allow drilling from both sides of door.
• Replaces HIT-10 drill guide.
• Locks with a 3-3/4" or 5" backset requires the optional HIT-BAK adapter.

Features

• The HIT-102 is for use with 2-3/4" backset and 1-3/8" to 2" thick doors.
• Replaces HIT-10 drill guide.
• Quickly locates and permits drilling of all thru bolt holes including lever holes, anchor tabs, and wire run for Trilogy and combination change hole for Kaba Ilco.
• Unit has bushings on both front and back plate to allow drilling from both sides of door.
• A combination unit designed for Kaba Ilco (Simplex) and Alarm lock pushbutton locks.
• Locks with a 3-3/4" or 5" backset requires the optional HIT-BAK adapter.
