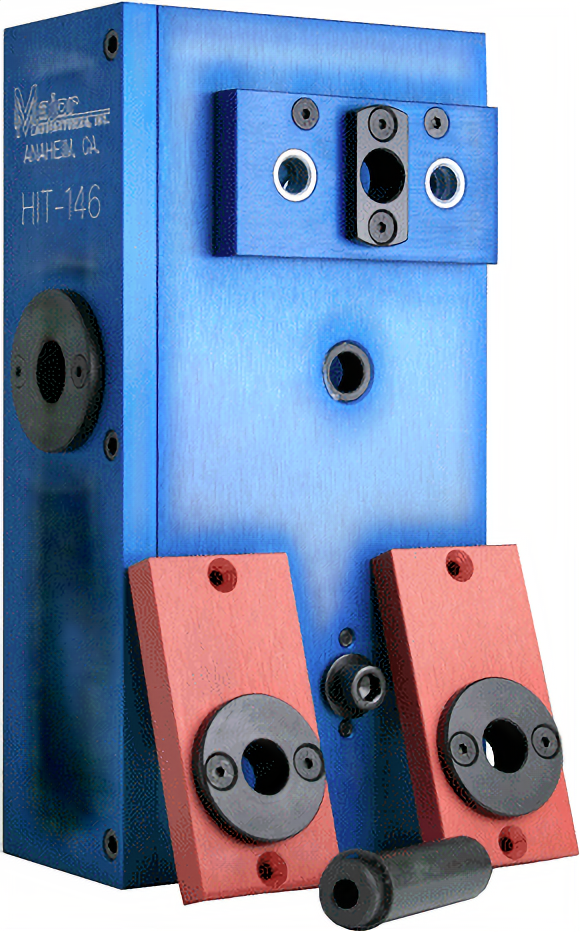

Major HIT-146 Jig for Schlage CO Cylindrical

Major Mfg Co Inc HIT-146 Jig for Schlage CO Cylindrical is an essential tool for professionals and skilled homeowners aiming to install Schlage CO cylindrical series locks with precision. This innovative drill guide features a robust design that attaches securely to the door using the existing 2-1/8" crossbore, ensuring perfect alignment for every installation. Equipped with hardened drill bushings, the HIT-146 allows for accurate placement of all necessary mounting and function holes, including the DPS switch in the door edge. Its dual-sided template design means you can drill from either side of the door, making it versatile for various project needs. This drill guide is compatible with both wood and steel doors, accommodating standard doors up to 2" thick and a 2-3/4" backset. The DPS drill guide is specifically centered for standard 1-3/4" doors, enhancing its usability. With the HIT-146, you can streamline the installation process, reduce errors, and deliver professional results every time. Perfect for locksmiths and builders, this tool is a must-have addition to your installation toolkit, ensuring that your projects run smoothly and efficiently.

Jig for Schlage CO Cylindrical

• Accurately install Schlage CO cylindrical series locks using the HIT-146 drill guide.
• This unit, thru-bolts to door, using the existing 2-1/8" crossbore for alignment.
• All required mounting and function holes including the DPS switch in the door edge are located with hardened drill bushings.
• There are drill bushings on both sides of template, to allow drilling from either side of door.
• This drill guide will template both wood or steel doors.
• Standard drill guide will accommodate doors up to 2" thick with a 2-3/4" backset.
• DPS drill guide will center on a standard 1-3/4" door.

Features

• This unit, thru-bolts to door, using the existing 2-1/8" crossbore for alignment.
• All required mounting and function holes including the DPS switch in the door edge are located with hardened drill bushings.
• Standard drill guide will accommodate doors up to 2" thick with a 2-3/4" backset.
• There are drill bushings on both sides of template, to allow drilling from either side of door.
• Accurately install Schlage CO cylindrical series locks using the HIT-146 drill guide.
• DPS drill guide will center on a standard 1-3/4" door.
• This drill guide will template both wood or steel doors.
