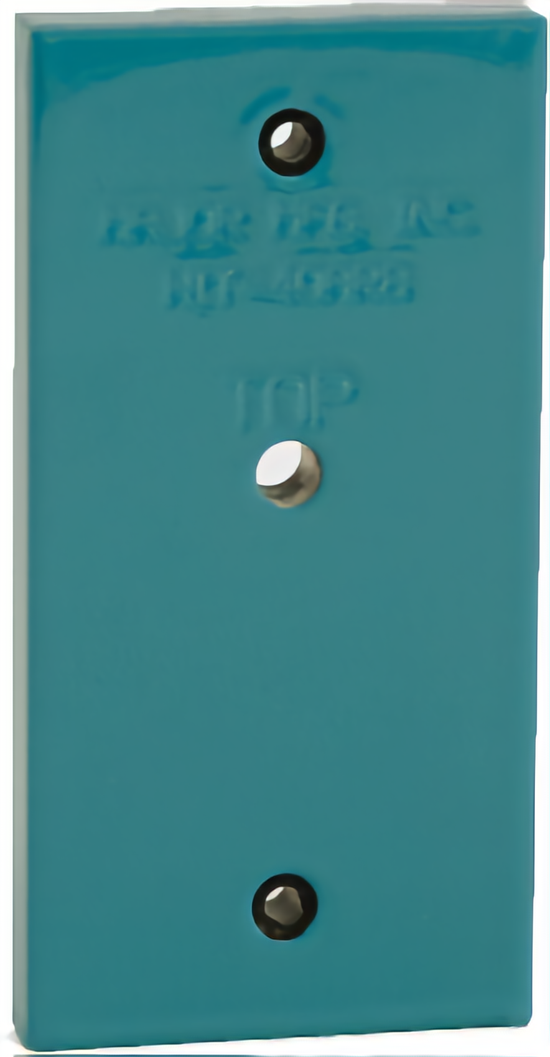

Major Mfg Co Inc HIT-40AR8 Template for Adams Rite Levers Handles simplifies the installation process for paddle or lever handles, making it an essential tool for locksmiths and building professionals. This installation template is designed to ensure fast and accurate placement, eliminating the need for cumbersome measuring. To incorporate a paddle or handle onto an existing lock, you simply remove the inside cylinder or T-turn and replace it with the supplied HIT-22 guide. The HIT-40AR8 is then positioned onto the locating pin, allowing you to drill precise mounting holes through two hardened drill bushings integrated into the template. Once the holes are drilled, you can remove the template, tap the holes, and install the handle seamlessly. For paddle installations, the process involves removing the lock, redrilling holes to 17/64", inserting threaded posts, and ultimately installing both the lock and paddle. The HIT-40AR8 template streamlines installation, ensuring that every project is completed with efficiency and accuracy. Whether you’re a professional locksmith or a knowledgeable homeowner, the HIT-40AR8 is a valuable addition to your toolkit, facilitating a straightforward and reliable installation experience for Adams Rite levers and paddles.

Template for Adams Rite Levers Handles

• Installation of an Adams Rite paddle or lever handle is fast and accurate with the HIT-40AR8 installation template.
• To add a paddle or handle to an existing lock, simply remove the inside cylinder or T-turn and replace with a HIT-22 guide (supplied) and install the HIT-40AR8 onto the locating pin.
• Mounting holes are located through two hardened drill bushings in the template.
• After the holes are drilled, remove template, tap holes and install handle.
• When installing a paddle, remove lock, redrill holes to 17/64", insert threaded posts and install lock and paddle.
• Installation is fast and accurate with no measuring required.

Features

• To add a paddle or handle to an existing lock, simply remove the inside cylinder or T-turn and replace with a HIT-22 guide (supplied) and install the HIT-40AR8 onto the locating pin.
• Installation is fast and accurate with no measuring required.
• After the holes are drilled, remove template, tap holes and install handle.
• Installation of an Adams Rite paddle or lever handle is fast and accurate with the HIT-40AR8 installation template.
• Mounting holes are located through two hardened drill bushings in the template.
• When installing a paddle, remove lock, redrill holes to 17/64", insert threaded posts and install lock and paddle.
