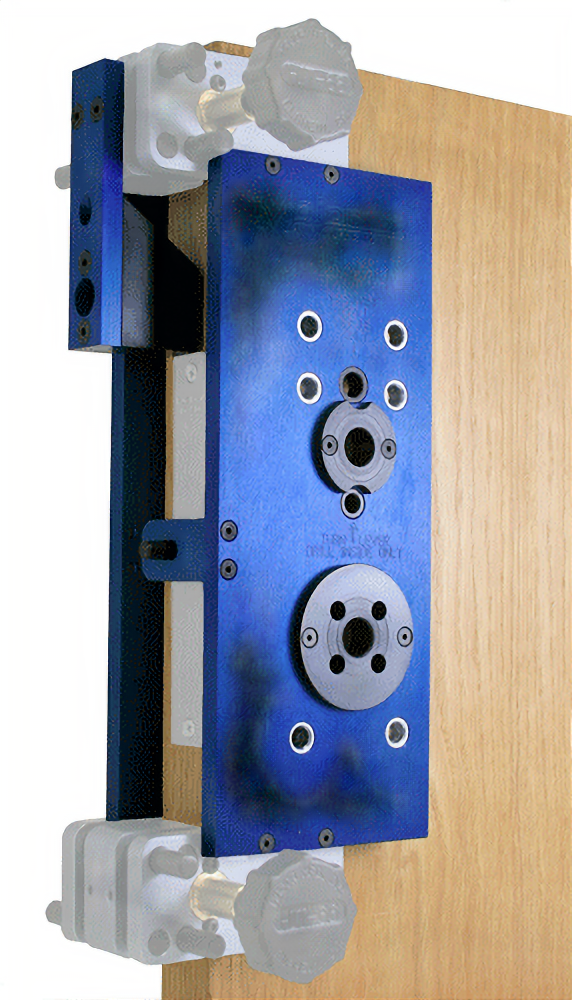

Major HIT-66-280 Drill Guide Schlage AD Mortise Lock

Major Mfg Co Inc HIT-66-280 Drill Guide Schlage AD Mortise Lock is expertly crafted to facilitate quick and precise installation or retrofitting of Schlage AD series mortise locks. This innovative template features hardened drill bushings lining all necessary holes, ensuring durability and accuracy during operation. The larger holes designed for wire runs are compatible with hole saws, streamlining the installation process. An angled hole for the DPS is also incorporated, allowing for effortless drilling. Constructed from machined aluminum with a hard anodized finish, the HIT-66-280 template is built to withstand the rigors of any job site. To utilize this template, the HIT-66 clamp system is required, which includes the HIT-4509 mortise alignment plate (sold separately). Included in the template set are both inside and outside guides, along with a DPS wire run guide, ensuring a comprehensive solution for locksmiths and building professionals. Each drill guide hole is clearly identified, promoting trouble-free drilling to maximize efficiency. The door range compatible with the HIT-66 clamp system is from 1-1/4" to 2-7/8", making it versatile for various applications. Enhance your installation process with the HIT-66-280, the professional's choice for precision and reliability.

Drill Guide Schlage AD Mortise Lock

• Our new HIT-66-280 template is designed to quickly and accurately install or retrofit the Schlage AD series mortise locks.
• All required holes are lined with hardened drill bushings, the larger holes for wire runs will also accept hole saws.
• The angled hole for the DPS is also templated and is easy to drill.
• Plates are machined from aluminum and hard anodized.
• This template requires the HIT-66 clamp system that includes the HIT-4509 mortise alignment plate (HIT-66 clamp system sold separately).
• The template set includes both inside and outside template guides and DPS wire run guide.
• All drill guide holes are identified for trouble free drilling.
• Door range for the HIT-66 clamp system is 1-1/4" to 2-7/8".

Features

• The angled hole for the DPS is also templated and is easy to drill.
• All required holes are lined with hardened drill bushings, the larger holes for wire runs will also accept hole saws.
• This template requires the HIT-66 clamp system that includes the HIT-4509 mortise alignment plate (HIT-66 clamp system sold separately).
• Door range for the HIT-66 clamp system is 1-1/4" to 2-7/8".
• Our new HIT-66-280 template is designed to quickly and accurately install or retrofit the Schlage AD series mortise locks.
• The template set includes both inside and outside template guides and DPS wire run guide.
• All drill guide holes are identified for trouble free drilling.
• Plates are machined from aluminum and hard anodized.
