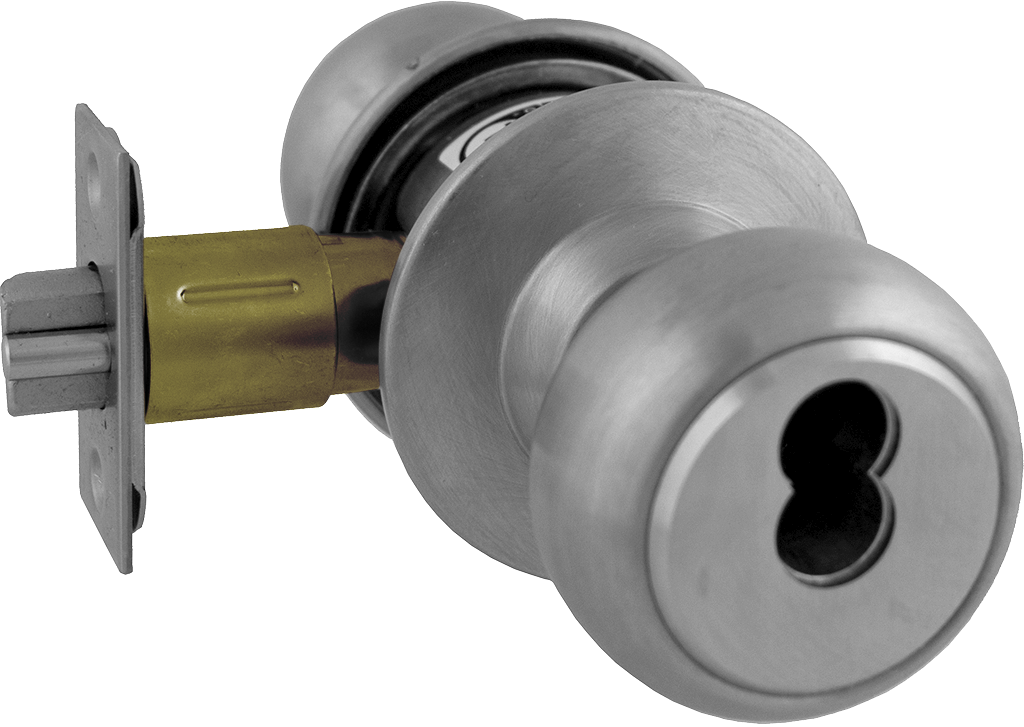

Marks Hardware 110RDW/32D-4 SFIC Institution Knob, Small Format IC, 2-3/4in Backset, Grade 2, Stainless Steel

Marks Hardware 110RDW/32D-4 SFIC is a robust institution knob designed for high-traffic areas where durability is paramount. This small format interchangeable core lock features a 2-3/4-inch backset and comes equipped with a T-strike, meeting the rigorous demands of commercial applications. Constructed from 630/US32D stainless steel, it not only offers a sleek, satin finish but also provides exceptional resistance to wear and corrosion. Engineered to exceed BHMA Grade 1 specifications by 300%, the 110RDW/32D-4 has undergone over 3.6 million cycles of testing, ensuring a long lifespan and reduced maintenance needs. The innovative stainless steel "clutch" mechanism and bronze bearings significantly minimize wear, preventing common issues such as lever droop. This design results in a smoother operation and a more reliable locking experience. The lockset is fire-rated for up to 180 minutes, making it a safe choice for institutional environments. It accommodates doors with a thickness of 1-5/8 inches to 1-7/8 inches, and the adjustable roses provide flexibility during installation. With Marks Hardware's lifetime mechanical warranty, the 110RDW/32D-4 SFIC is an excellent investment for securing your premises with confidence.

SFIC - Institution Knob, Small Format IC, Less Cores, 2-3/4in Backset, T-Strike, Grade 2, 630/US32D Stainless Steel

Cylindrical Locksets are designed for use in situations where durability is the deciding factor. Our cylindrical lock chassis are all constructed with cast retractors on bronze roller bearings. This strong, durable component gives our cylindrical sets the ability to last millions of cycles and is available in knob and lever sets. The Survivor leverset has a unique "clutch" mechanism that radically reduces the wear and abuse that typical cylindrical lever sets endure. When locked, the levers of the Survivor disengage from the retractor and other interior mechanisms of the lock. The levers of the Survivor swing freely , without resistance. This reduces the amount of wear on lock components and eliminates "lever droop". The use of a clutch results in longer lasting, lower maintenance, eloquent solution.

Features:

• High quality, longer lasting, lower maintenance design
• Competitively-priced for exceptional value
• Exceeds BHMA grade 1 Spec by 300%, over 3.6 million cycles
• Unique stainless steel "clutch" and bronze bearings dramatically reduce wear and abuse & eliminates lever droop
• Marks lifetime mechanical warranty
• 3-Hour fire rated; 2-3/8" and 2-3/4 backsets

Specifications:

• Backset: 2-3/8"
• Latch #1138, Front: 1" x 2-1/4"; throw: 1/2"; stainless steel nose
• Knobs: 2-1/4" dia. (110) round; 2-3/16" dia. (210) ball
• Roses: Adjustable both sides; steel reinforced 2-3/4" dia.
• Strike: #1136, 2-3/4" "T" strike
• Door Thickness: 1-5/8" to 1-7/8"
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys

Functions:

• N: Passage
• L: Privacy
• P: Patio
• DC: Communicating
• AB: Entry
• AQ: Exit
• S: Classroom
• F: Storeroom
• DW: Institution
• DA: Vestibule
• FQ: Exit
• DO: Dummy trim outside
• DT: Full dummy trim
• NB: Communicating passage
• FB: Communicating storeroom
• SB: Communicating classroom

Finishes:

• 3 - Bright brass
• 32D - Stainless steel
• 10B - Dark bronze
