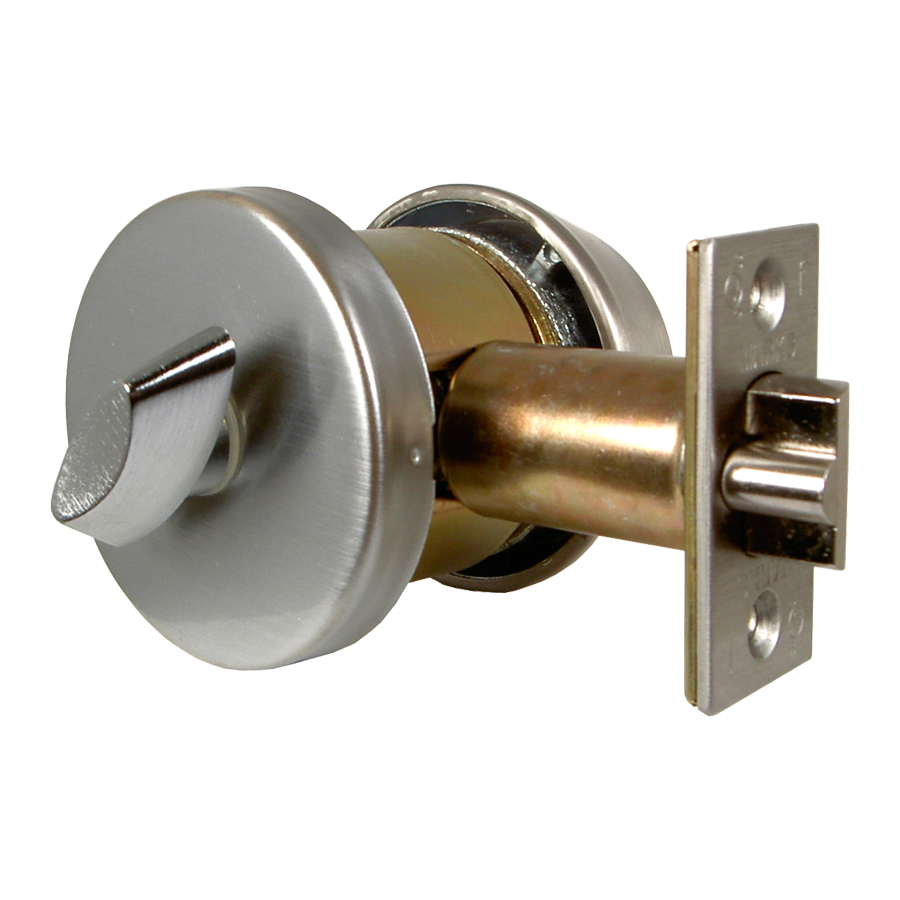

Marks Hardware 145K/32D-E11 Marks C Keyway Single Cylinder Gate Lock, 6 Pin, 2-3/8" Backset, Stainless Steel

Marks Hardware 145K/32D-E11 Gate Lock Single Cylinder offers robust security for any gate or door. Featuring a Marks C keyway with 6 pins, this lock is designed to provide exceptional resistance against unauthorized access. The unit boasts a 2-3/8 inch backset, ensuring compatibility with a variety of installations, and is constructed from durable 630/US32D stainless steel, making it resistant to corrosion and wear. Rated as an ANSI 156.5 grade 1 deadlatch, this lock meets stringent security standards, including a UL fire rating of 3 hours. Its steel shutter system effectively conceals mounting screws when locked, enhancing security against tampering. The tapered cylinder collars further protect against break-in attempts, while the unitized assembly allows for easy installation in a 2-1/8 inch bore. The 145K/32D-E11 accommodates a range of conventional and high-security cylinders, including Medeco and Kaba, making it versatile for various security needs. The latch features a 9/16 inch throw for added strength, and it comes with two keys for convenience. Available in a satin stainless steel finish, this gate lock combines functionality with a sleek aesthetic, making it an ideal choice for both residential and commercial applications.

Gate Lock Single Cylinder, Marks C Keyway, 6 Pin, 2-3/8in Backset, 630/US32D Stainless Steel

Marks USA manufactures a versatile series of grade 1 deadlatches and deadbolts which install easily and accept most other manufactures conventional, high security and IC core cylinders.

Features:

• Deadbolt: ANSI 156.5 grade 1 (UL fire ratings not applicable)
• Deadlatch: ANSI 156.5 grade 1, UL fire rated 3 hours
• Accepts Medeco, Kaba, Multilock, ASSA and other high security cylinders
• IC core models for "Best" size cores
• Accepts most manufactures conventional cylinders
• Unitized assemblies for 2-1/8" bore
• Tapered cylinder collars prevent (break in attempts by) wrenching
• Steel shutter system eliminates access to mounting screws when door is locked.
• Series 1 cylindrical cartridge
• Unitized assemblies for 2-1/8" bore

Specifications:

• Latch: Grade 1, 9/16" throw, 2-3/4" backset
• Strike: #1136, 2-3/4" strike
• Door Thickness: 1-3/4"; For 1-3/8" doors use spacer rings K1442/32D
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys
• Latch front: 1-1/8" x 2-1/4"

Functions:

• K: Cylinder x turnpiece
• L: Communicating single cylinder
• M: Double cylinder
• KL: Cylinder x lever
• X: Turnpiece x blank plate
• KK: Cylinder x knob

Finishes:

• 3 - Bright brass
• 32D - Stainless steel
• 10B - Dark bronze
• 26D - Satin chrome

Resources

• Cut Sheet
