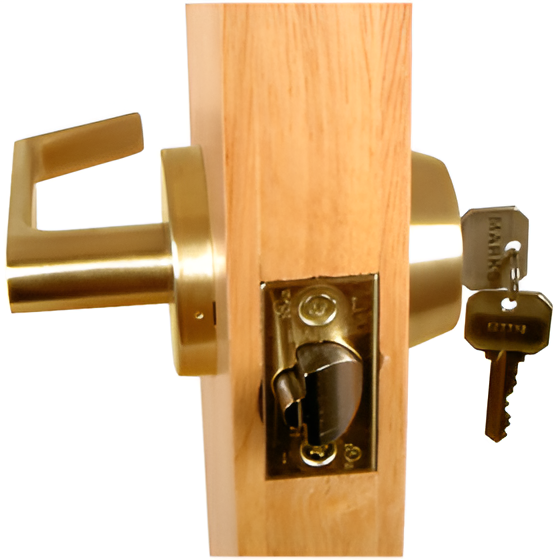

Marks Hardware 145KL/3 Marks C Keyway Single Cylinder Gate Lock, 6 Pin, 2-3/4in Backset, Bright Brass

Marks Hardware 145KL/3 KIT - Gate Lock Single Cylinder X Lever offers robust security and versatile functionality, making it an ideal choice for both residential and commercial applications. This grade 1 deadlatch features a 6-pin Marks C keyway, ensuring enhanced protection against unauthorized access. With a 2-3/4 inch backset and a latch throw of 9/16 inch, this lock is designed for doors with a thickness of 1-3/4 inches, providing a snug fit and reliable performance. The Marks Hardware 145KL/3 is engineered to accept a variety of high-security cylinders, including Medeco and Kaba, while also being compatible with conventional cylinders from other manufacturers. Its tapered cylinder collars are crafted to deter break-in attempts, and the steel shutter system prevents access to mounting screws when the door is locked, adding an extra layer of security. Finished in bright brass (605/US3), this lock not only offers durability but also complements various architectural styles. The unitized assembly is suitable for a 2-1/8 inch bore, making installation straightforward. Trust Marks Hardware for a blend of quality craftsmanship and reliable security solutions-perfect for protecting your property.

KIT - Gate Lock Single Cylinder X Lever, Marks C Keyway, 6 Pin, 2-3/4in Backset, 605/US3 Bright Brass

Marks USA manufactures a versatile series of grade 1 deadlatches and deadbolts which install easily and accept most other manufactures conventional, high security and IC core cylinders.

Features:

• Deadbolt: ANSI 156.5 grade 1 (UL fire ratings not applicable)
• Deadlatch: ANSI 156.5 grade 1, UL fire rated 3 hours
• Accepts Medeco, Kaba, Multilock, ASSA and other high security cylinders
• IC core models for "Best" size cores
• Accepts most manufactures conventional cylinders
• Unitized assemblies for 2-1/8" bore
• Tapered cylinder collars prevent (break in attempts by) wrenching
• Steel shutter system eliminates access to mounting screws when door is locked.
• Series 1 cylindrical cartridge
• Unitized assemblies for 2-1/8" bore

Specifications:

• Latch: Grade 1, 9/16" throw, 2-3/4" backset
• Strike: #1136, 2-3/4" strike
• Door Thickness: 1-3/4"; For 1-3/8" doors use spacer rings K1442/32D
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys
• Latch front: 1-1/8" x 2-1/4"

Functions:

• K: Cylinder x turnpiece
• L: Communicating single cylinder
• M: Double cylinder
• KL: Cylinder x lever
• X: Turnpiece x blank plate
• KK: Cylinder x knob

Finishes:

• 3 - Bright brass
• 32D - Stainless steel
• 10B - Dark bronze
• 26D - Satin chrome
