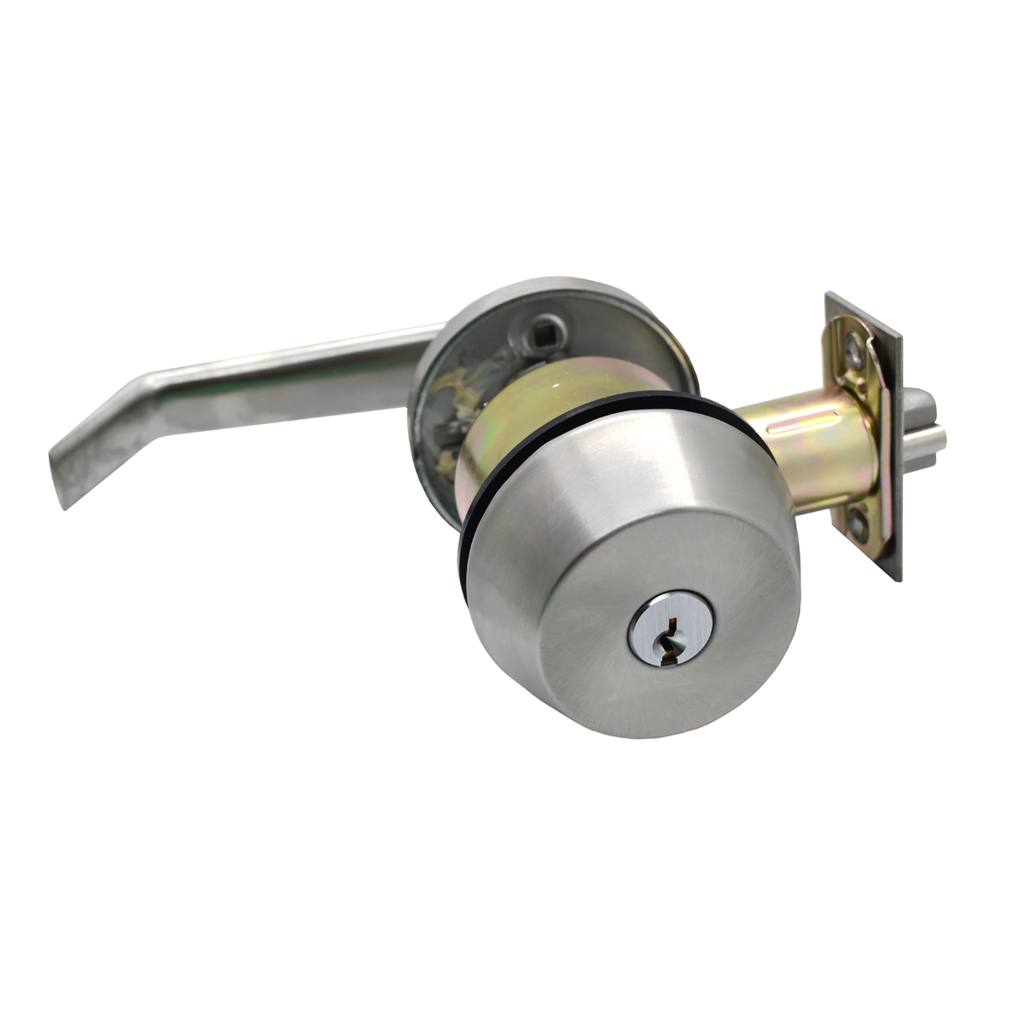

Marks Hardware 145KL/32D-E11 Single Cylinder Gate Lock, Marks C Keyway, 6 Pin, 2-3/8in Backset, Stainless Steel

Marks Hardware 145KL/32D-E11 Gate Lock Single Cylinder X Lever combines robust security with user-friendly design, making it an excellent choice for residential and commercial applications. This grade 1 deadlatch features a durable construction of stainless steel, offering a sleek satin finish that enhances any gate or door aesthetic. The lock is designed to accommodate a 2-3/8 inch backset and includes a Marks "C" keyway with a 6-pin cylinder, ensuring high compatibility with existing hardware. With a 9/16 inch throw and a UL-listed fire rating of three hours, the 145KL/32D-E11 provides not only reliable security but also peace of mind. Its unitized assembly allows for easy installation in a standard 2-1/8 inch bore, while tapered cylinder collars effectively prevent break-in attempts. The steel shutter system cleverly conceals mounting screws when the door is locked, further enhancing its security profile. This lock is perfect for those seeking a dependable and stylish solution for their access control needs. Whether securing a gate or enhancing the safety of a residential entryway, the Marks Hardware 145KL/32D-E11 is designed to deliver both performance and elegance in one dependable package.

Gate Lock Single Cylinder X Lever, Marks C Keyway, 6 Pin, 2-3/8in Backset, 630/US32D Stainless Steel

Marks USA manufactures a versatile series of grade 1 deadlatches and deadbolts which install easily and accept most other manufactures conventional, high security and IC core cylinders.

Features:

• Deadbolt: ANSI 156.5 grade 1 (UL fire ratings not applicable)
• Deadlatch: ANSI 156.5 grade 1, UL fire rated 3 hours
• Accepts Medeco, Kaba, Multilock, ASSA and other high security cylinders
• IC core models for "Best" size cores
• Accepts most manufactures conventional cylinders
• Unitized assemblies for 2-1/8" bore
• Tapered cylinder collars prevent (break in attempts by) wrenching
• Steel shutter system eliminates access to mounting screws when door is locked.
• Series 1 cylindrical cartridge
• Unitized assemblies for 2-1/8" bore

Specifications:

• Latch: Grade 1, 9/16" throw, 2-3/4" backset
• Strike: #1136, 2-3/4" strike
• Door Thickness: 1-3/4"; For 1-3/8" doors use spacer rings K1442/32D
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys
• Latch front: 1-1/8" x 2-1/4"

Functions:

• K: Cylinder x turnpiece
• L: Communicating single cylinder
• M: Double cylinder
• KL: Cylinder x lever
• X: Turnpiece x blank plate
• KK: Cylinder x knob

Finishes:

• 3 - Bright brass
• 32D - Stainless steel
• 10B - Dark bronze
• 26D - Satin chrome

Resources

• Cut Sheet
