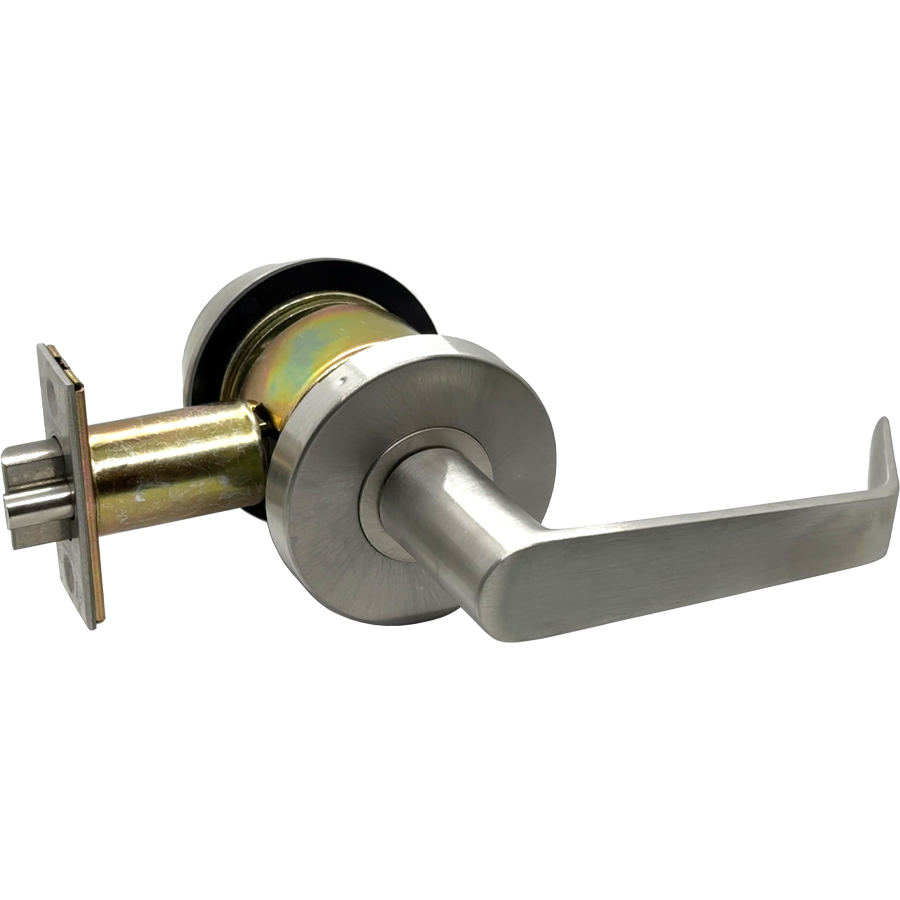

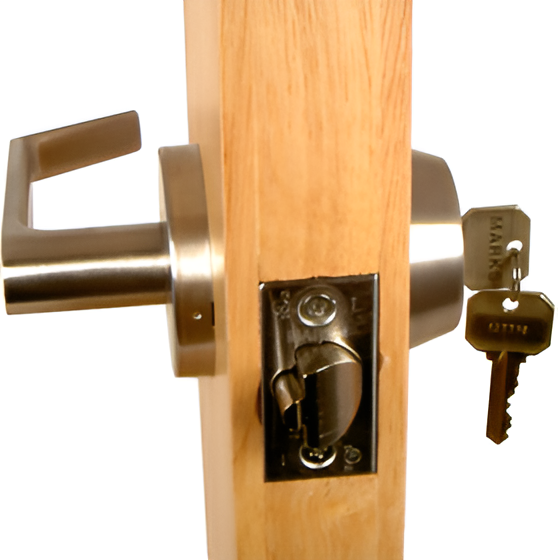

Marks Hardware 145KL/32D Single Cylinder Gate Lock, Marks C Keyway, 6 Pin, 2-3/4in Backset, Stainless Steel

Marks Hardware 145KL/32D Gate Lock Single Cylinder X Lever combines robust security with user-friendly functionality. Crafted from durable 630 stainless steel, this grade 1 deadlatch is designed for seamless installation and exceptional performance. The unit features a 2-3/4" backset, making it compatible with a wide range of doors, while its 9/16" throw latch ensures reliable locking. Equipped with a Marks "C" keyway and a 6-pin cylinder, the lock comes with two keys for added convenience. The tapered cylinder collars enhance security by preventing break-in attempts through wrenching, while the steel shutter system effectively conceals mounting screws when the door is locked, adding an extra layer of protection. Designed for versatility, this gate lock accepts high-security cylinders from brands such as Medeco and Kaba, as well as conventional cylinders from most manufacturers. It is UL listed with a 3-hour fire rating for the deadlatch, ensuring compliance with safety standards. With a sleek satin stainless steel finish, the Marks Hardware 145KL/32D not only offers security but also complements any architectural style. Ideal for both residential and commercial applications, this lock is the perfect choice for those prioritizing safety and aesthetics.

Gate Lock Single Cylinder X Lever, Marks C Keyway, 6 Pin, 2-3/4in Backset, 630/US32D Stainless Steel

Marks USA manufactures a versatile series of grade 1 deadlatches and deadbolts which install easily and accept most other manufactures conventional, high security and IC core cylinders.

Features:

• Deadbolt: ANSI 156.5 grade 1 (UL fire ratings not applicable)
• Deadlatch: ANSI 156.5 grade 1, UL fire rated 3 hours
• Accepts Medeco, Kaba, Multilock, ASSA and other high security cylinders
• IC core models for "Best" size cores
• Accepts most manufactures conventional cylinders
• Unitized assemblies for 2-1/8" bore
• Tapered cylinder collars prevent (break in attempts by) wrenching
• Steel shutter system eliminates access to mounting screws when door is locked.
• Series 1 cylindrical cartridge
• Unitized assemblies for 2-1/8" bore

Specifications:

• Latch: Grade 1, 9/16" throw, 2-3/4" backset
• Strike: #1136, 2-3/4" strike
• Door Thickness: 1-3/4"; For 1-3/8" doors use spacer rings K1442/32D
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys
• Latch front: 1-1/8" x 2-1/4"

Functions:

• K: Cylinder x turnpiece
• L: Communicating single cylinder
• M: Double cylinder
• KL: Cylinder x lever
• X: Turnpiece x blank plate
• KK: Cylinder x knob

Finishes:

• 3 - Bright brass
• 32D - Stainless steel
• 10B - Dark bronze
• 26D - Satin chrome
