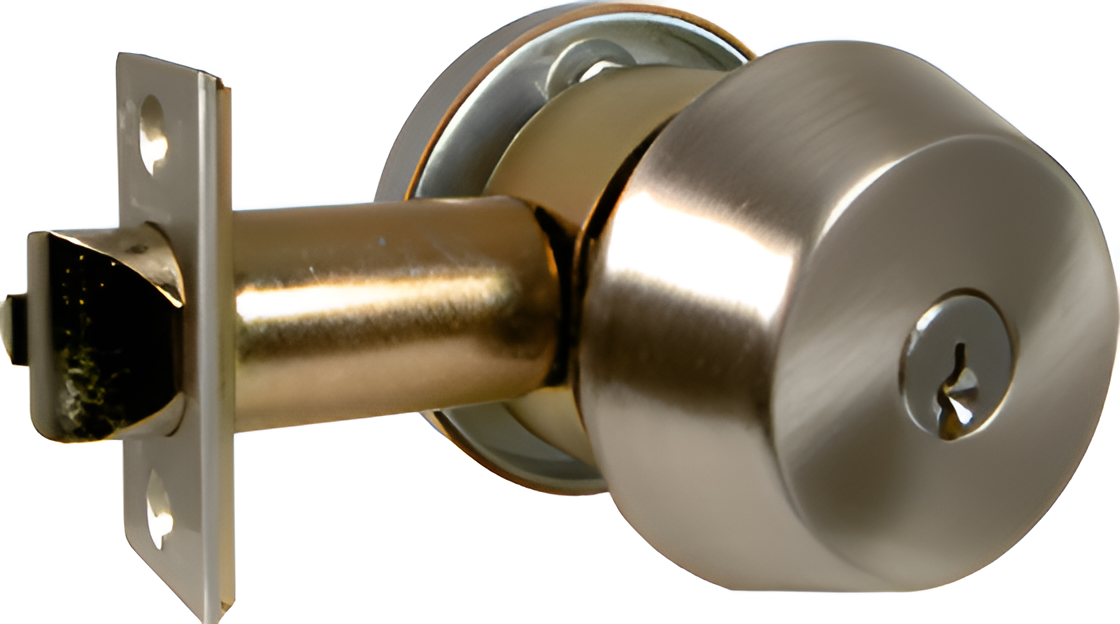

Marks Hardware 145M/32D KIT - Double Cylinder Gate Lock, Marks C Keyway, 6 Pin, 2-3/4in Backset

Marks Hardware 145M/32D KIT - Gate Lock Double Cylinder offers robust security solutions tailored for both residential and commercial applications. This grade 1 deadbolt is designed to provide superior protection, featuring a 6-pin Marks C keyway and a 2-3/4-inch backset, ensuring compatibility with a range of conventional and high-security cylinders. Engineered for durability, the 145M/32D KIT features a stainless steel finish (630/US32D), which not only enhances its aesthetic appeal but also resists corrosion and wear. The deadlatch boasts a 9/16-inch throw and is UL fire rated for up to 3 hours, providing peace of mind in emergency situations. The tapered cylinder collars are designed to thwart break-in attempts, while the steel shutter system protects mounting screws when the door is locked. Installation is straightforward, accommodating door thicknesses of 1-3/4 inches, with options available for 1-3/8-inch doors using spacer rings. The unitized assembly is compatible with a 2-1/8-inch bore, making it versatile for various door types. With a focus on both security and convenience, the Marks Hardware 145M/32D KIT is an excellent choice for those looking to enhance their property’s safety.

KIT - Gate Lock Double Cylinder, Marks C Keyway, 6 Pin, 2-3/4in Backset, 630/US32D Stainless Steel

Marks USA manufactures a versatile series of grade 1 deadlatches and deadbolts which install easily and accept most other manufactures conventional, high security and IC core cylinders.

Features:

• Deadbolt: ANSI 156.5 grade 1 (UL fire ratings not applicable)
• Deadlatch: ANSI 156.5 grade 1, UL fire rated 3 hours
• Accepts Medeco, Kaba, Multilock, ASSA and other high security cylinders
• IC core models for "Best" size cores
• Accepts most manufactures conventional cylinders
• Unitized assemblies for 2-1/8" bore
• Tapered cylinder collars prevent (break in attempts by) wrenching
• Steel shutter system eliminates access to mounting screws when door is locked.
• Series 1 cylindrical cartridge
• Unitized assemblies for 2-1/8" bore

Specifications:

• Latch: Grade 1, 9/16" throw, 2-3/4" backset
• Strike: #1136, 2-3/4" strike
• Door Thickness: 1-3/4"; For 1-3/8" doors use spacer rings K1442/32D
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys
• Latch front: 1-1/8" x 2-1/4"

Functions:

• K: Cylinder x turnpiece
• L: Communicating single cylinder
• M: Double cylinder
• KL: Cylinder x lever
• X: Turnpiece x blank plate
• KK: Cylinder x knob

Finishes:

• 3 - Bright brass
• 32D - Stainless steel
• 10B - Dark bronze
• 26D - Satin chrome
