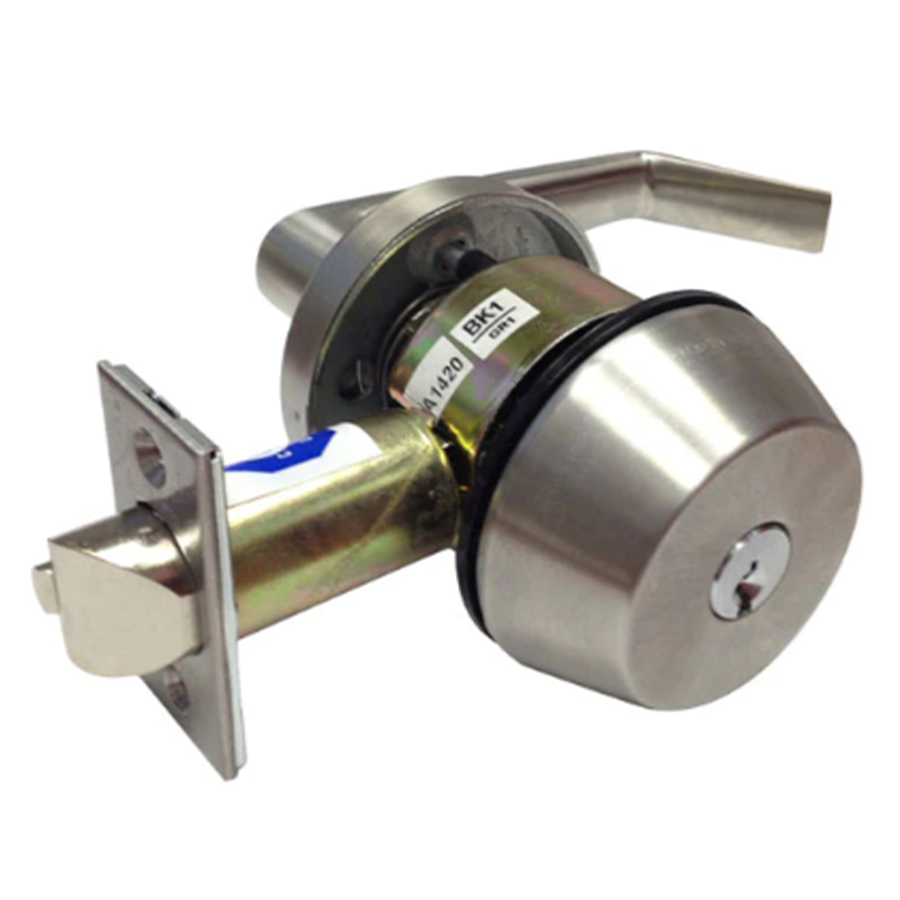

Marks Hardware 145RKL/32D SFIC Single Cylinder Gate Lock, Small Format IC, 2 3/4" Backset, Stainless Steel

Marks Hardware 145RKL/32D SFIC Gate Lock Single Cylinder x Lever is designed for security-conscious professionals and homeowners seeking reliability. This small format IC gate lock features a robust stainless steel construction with a sleek satin finish, ensuring durability and aesthetic appeal. Crafted to meet ANSI Grade 1 standards, the deadlatch provides top-tier security with a 9/16" throw and a 2-3/4" backset, making it compatible with various door styles. Its unitized assembly simplifies installation, fitting a standard 2-1/8" bore. The tapered cylinder collar enhances resistance against wrenching, while the steel shutter system protects mounting screws when the door is locked, reinforcing its security features. The Marks "C" keyway accommodates a 6-pin cylinder and comes with two keys for added convenience. Suitable for doors with a thickness of 1-3/4", this lock can be adapted for 1-3/8" doors using spacer rings. With UL fire ratings for up to three hours, this lock not only secures but also provides peace of mind during emergencies. Whether you're looking to enhance the security of a residential or commercial gate, the Marks Hardware 145RKL/32D is a steadfast choice that combines functionality and style, making it a trusted addition to your security arsenal.

SFIC Gate Lock Single Cylinder x Lever, Small Format IC, Less Core, 2 3/4 Backset, 630/US32D Stainless Steel

Marks USA manufactures a versatile series of grade 1 deadlatches and deadbolts which install easily and accept most other manufactures conventional, high security and IC core cylinders.

Features:

• Deadbolt: ANSI 156.5 grade 1 (UL fire ratings not applicable)
• Deadlatch: ANSI 156.5 grade 1, UL fire rated 3 hours
• Accepts Medeco, Kaba, Multilock, ASSA and other high security cylinders
• IC core models for "Best" size cores
• Accepts most manufactures conventional cylinders
• Unitized assemblies for 2-1/8" bore
• Tapered cylinder collars prevent (break in attempts by) wrenching
• Steel shutter system eliminates access to mounting screws when door is locked.
• Series 1 cylindrical cartridge
• Unitized assemblies for 2-1/8" bore

Specifications:

• Latch: Grade 1, 9/16" throw, 2-3/4" backset
• Strike: #1136, 2-3/4" strike
• Door Thickness: 1-3/4"; For 1-3/8" doors use spacer rings K1442/32D
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys
• Latch front: 1-1/8" x 2-1/4"

Functions:

• K: Cylinder x turnpiece
• L: Communicating single cylinder
• M: Double cylinder
• KL: Cylinder x lever
• X: Turnpiece x blank plate
• KK: Cylinder x knob

Finishes:

• 3 - Bright brass
• 32D - Stainless steel
• 10B - Dark bronze
• 26D - Satin chrome
