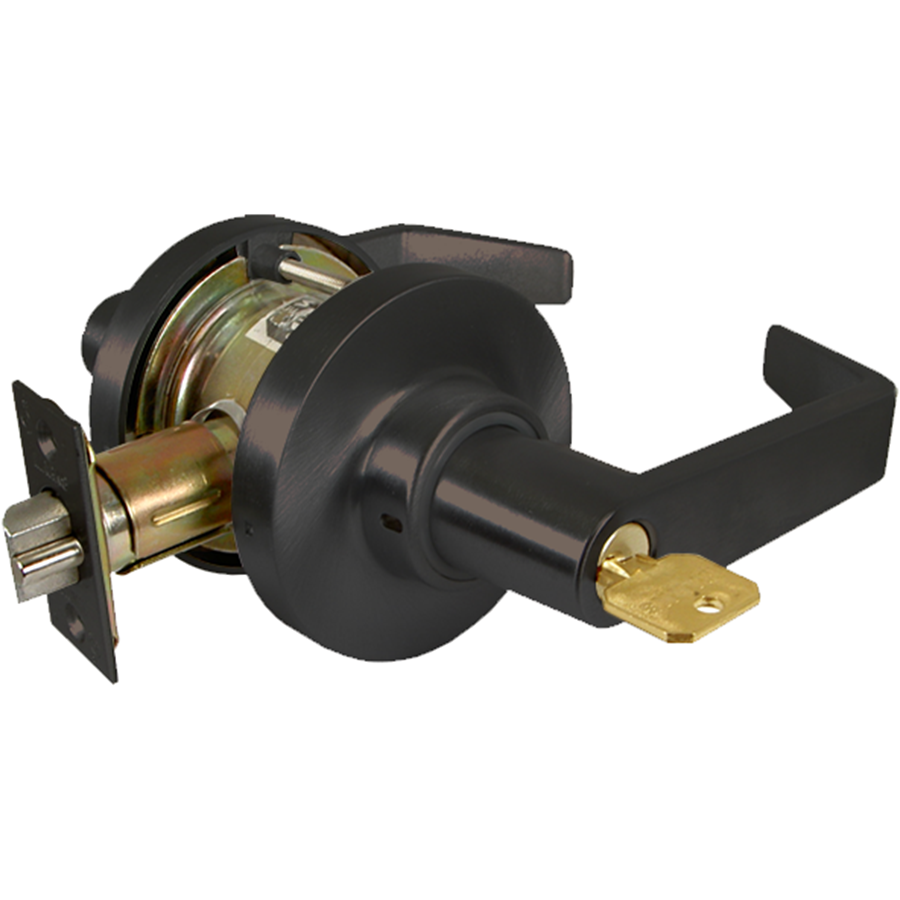

Marks Hardware 175AB10B-3/4 Marks C Keyway Entry Lever Lockset, 6 Pin, 2-3/4" Backset, Grade 2, Dark Bronze

Marks Hardware 175AB10B-3/4 Entry Clutched Lever Lockset is an exceptional choice for those seeking durability and reliability in a cylindrical lock. Crafted with a Marks C keyway and a robust 6-pin cylinder, this Grade 2 lockset is designed to withstand the test of time, featuring a backset of 2-3/4 inches and an ANSI strike for seamless integration into your residential or commercial space. What sets this lockset apart is its innovative "clutch" mechanism, which significantly reduces wear and tear on the internal components. When locked, the levers disengage, allowing them to move freely without resistance, thereby preventing lever droop and extending the lock's lifespan. The solid cast Zamac levers and stainless steel nose ensure robust performance, while the 3-hour fire rating adds an essential layer of safety. Additional features include a high-quality design that exceeds BHMA grade 1 specifications by 300%, offering over 3.6 million cycles of use. The lockset is also compatible with doors ranging from 1-5/8 inches to 1-7/8 inches in thickness. With a sleek dark bronze finish (613/US10B) and a lifetime mechanical warranty, the Marks Hardware 175AB10B-3/4 Entry Clutched Lever Lockset is the ideal solution for those who demand both style and security.

Entry Clutched Lever Lockset, Marks C Keyway, 6 Pin, 2-3/4in Backset, ANSI Strike, Grade 2, 613/US10B Dark Bronze

Cylindrical locksets are designed for use in situations where durability is the deciding factor. Our cylindrical lock chassis are all constructed with cast retractors on bronze roller bearings. This strong, durable component gives our cylindrical sets the ability to last millions of cycles and is available in knob and lever sets. The Survivor leverset has a unique "clutch" mechanism that radically reduces the wear and abuse that typical cylindrical lever sets endure. When locked, the levers of the Survivor disengage from the retractor and other interior mechanisms of the lock. The levers of the Survivor swing freely, without resistance. This reduces the amount of wear on lock components and eliminates "lever droop". The use of a clutch results in longer lasting, lower maintenance, eloquent solution.

Features:

• High quality, longer lasting, lower maintenance design
• Competitively-priced for exceptional value
• Exceeds BHMA grade 1 spec by 300%, over 3.6 million cycles
• Unique stainless steel "clutch" and bronze bearings dramatically reduce wear and abuse & eliminates lever droop
• Marks lifetime mechanical warranty
• 3-Hour fire rated; 2-3/8" and 2-3/4 Backsets

Specifications:

• Backset: 2-3/4"
• Latch #1134, Front: 1-1/8" x 2-1/4"; Throw: 1/2"; Stainless steel nose
• Levers: Solid cast Zamac; w/ 1/2" return (except 475)
• Roses: Thru-bolted, 3-1/4" dia, spring loaded 2-#10 thru-bolts
• Strike: #1145, ASA strike
• Door Thickness: 1-5/8" to 1-7/8"; For 1-3/8" door use K1904 spacer
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys

Functions:

• N: Passage
• L: Privacy
• P: Patio
• DC: Communicating
• AB: Entry
• AQ: Exit
• S: Classroom
• F: Storeroom
• DW: Institution
• DA: Vestibule
• FQ: Exit
• DO: Dummy trim outside
• DT: Full dummy trim
• NB: Communicating passage
• FB: Communicating storeroom
• SB: Communicating classroom

Finishes:

• 3 - Bright brass
• 32D - Stainless steel
• 10B - Dark bronze
• 26D - Satin chrome
