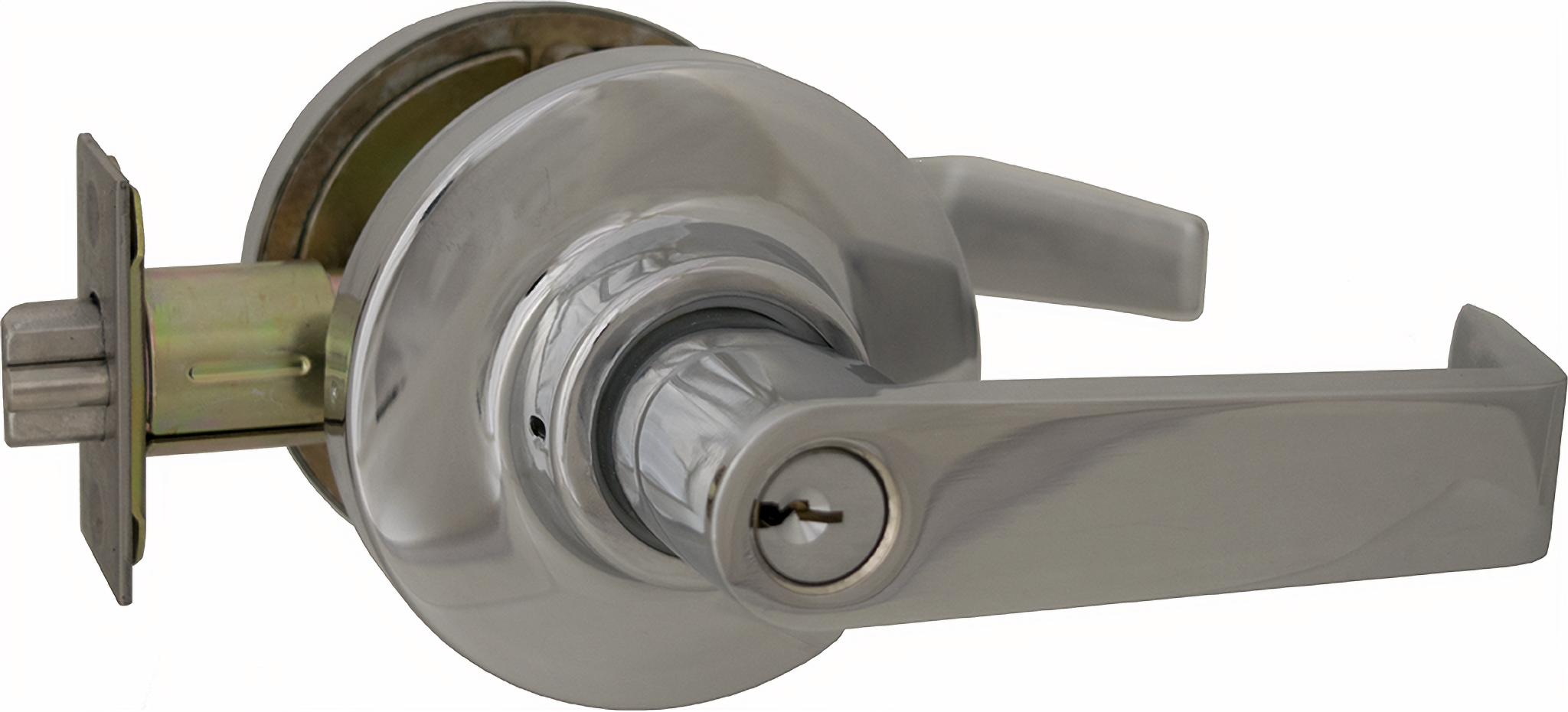

Marks Hardware 175AB26-3/8 Marks C Keyway Entry Lever Lockset, 6 Pin, Grade 2, Bright Chrome, 2-3/8in

Marks Hardware 175AB26-3/8 Entry Clutched Lever Lockset offers a robust solution for those seeking durability and reliability in a lockset. Designed with a Marks C keyway and a 6-pin cylinder, this lockset is built to withstand the rigors of daily use, achieving over 3.6 million cycles-300% above the BHMA Grade 1 specification. The unique stainless steel "clutch" mechanism minimizes wear by allowing the levers to swing freely when locked, effectively eliminating lever droop and reducing maintenance needs. This entry lockset features a 2-3/8 inch backset and is fire rated for up to 3 hours, meeting stringent safety standards. The solid cast Zamac levers provide both strength and style, while the bright chrome finish (625/US26) adds a sleek look to any entryway. The lockset is compatible with door thicknesses ranging from 1-5/8 inches to 1-7/8 inches, and it comes with a lifetime mechanical warranty for peace of mind. Additional features include a deadlatch type latchbolt and an ANSI strike, along with a convenient installation process due to its thru-bolted roses with spring-loaded mechanisms. For a blend of durability, elegance, and functionality, the Marks Hardware 175AB26-3/8 Lockset is an exceptional choice for any commercial or residential application.

Entry Clutched Lever Lockset, Marks C Keyway, 6 Pin, 2-3/8in Backset, ANSI Strike, Grade 2, 625/US26 Bright Chrome

Cylindrical locksets are designed for use in situations where durability is the deciding factor. Our cylindrical lock chassis are all constructed with cast retractors on bronze roller bearings. This strong, durable component gives our cylindrical sets the ability to last millions of cycles and is available in knob and lever sets. The Survivor leverset has a unique "clutch" mechanism that radically reduces the wear and abuse that typical cylindrical lever sets endure. When locked, the levers of the Survivor disengage from the retractor and other interior mechanisms of the lock. The levers of the Survivor swing freely, without resistance. This reduces the amount of wear on lock components and eliminates "lever droop". The use of a clutch results in longer lasting, lower maintenance, eloquent solution.

Features:

• High quality, longer lasting, lower maintenance design
• Competitively-priced for exceptional value
• Exceeds BHMA grade 1 spec by 300%, over 3.6 million cycles
• Unique stainless steel "clutch" and bronze bearings dramatically reduce wear and abuse & eliminates lever droop
• Marks lifetime mechanical warranty
• 3-Hour fire rated; 2-3/8" and 2-3/4 Backsets

Specifications:

• Backset: 2-3/4"
• Latch #1134, Front: 1-1/8" x 2-1/4"; Throw: 1/2"; Stainless steel nose
• Levers: Solid cast Zamac; w/ 1/2" return (except 475)
• Roses: Thru-bolted, 3-1/4" dia, spring loaded 2-#10 thru-bolts
• Strike: #1145, ASA strike
• Door Thickness: 1-5/8" to 1-7/8"; For 1-3/8" door use K1904 spacer
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys

Functions:

• N: Passage
• L: Privacy
• P: Patio
• DC: Communicating
• AB: Entry
• AQ: Exit
• S: Classroom
• F: Storeroom
• DW: Institution
• DA: Vestibule
• FQ: Exit
• DO: Dummy trim outside
• DT: Full dummy trim
• NB: Communicating passage
• FB: Communicating storeroom
• SB: Communicating classroom

Finishes:

• 3 - Bright brass
• 32D - Stainless steel
• 10B - Dark bronze
• 26D - Satin chrome
