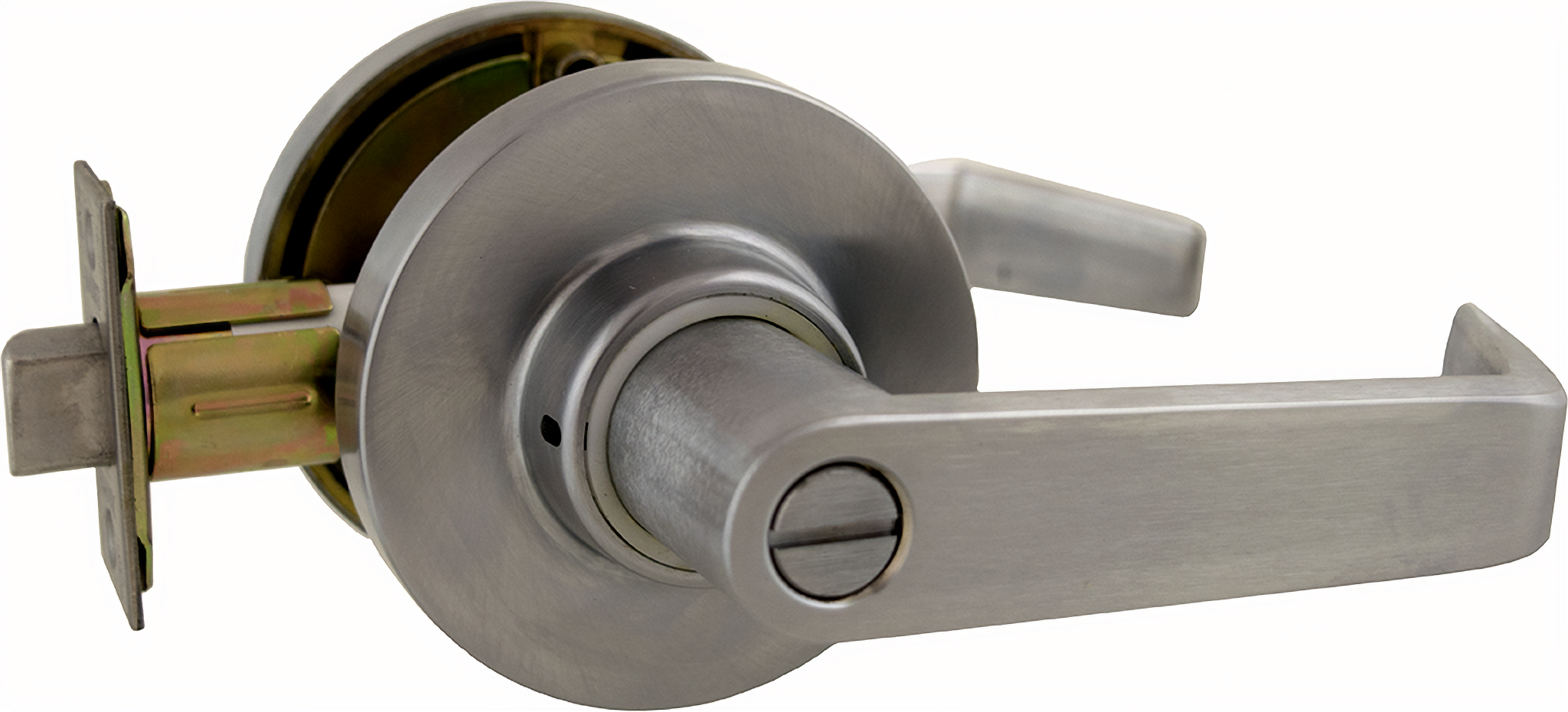

Marks Hardware 175L26D-3/4 Privacy Clutched Lever Lockset, 2-3/4" Backset, Grade 2, Satin Chrome

Marks Hardware 175L26D-3/4 Privacy Clutched Lever Lockset is engineered for those who value security and style in commercial and residential settings. This Grade 2 lockset features a 2-3/4" backset, making it suitable for various door thicknesses ranging from 1-5/8" to 1-7/8". The lockset’s solid cast Zamac levers offer both durability and a sleek American design aesthetic, while the satin chrome finish (626) provides a modern touch that complements any decor. Equipped with a 1/2" throw deadlatch and a robust ASA strike, the 175L26D-3/4 ensures reliable locking performance. The thinned design roses are through-bolted for added stability and security, featuring a 3-1/4" diameter and spring-loaded construction with two #10 thru-bolts. Designed for privacy functions, this lockset is perfect for areas that require restricted access while still allowing ease of use. The Marks "C" keyway cylinder, capable of accepting interchangeable cores, enhances security by enabling users to switch out cores as needed. This lockset is UL listed for a 120-minute fire rating, assuring safety during critical situations. Ideal for various applications-such as classrooms, storerooms, or hotels-the Marks Hardware 175L26D-3/4 is a versatile choice for any professional looking to enhance security without compromising on style.

Privacy Clutched Lever Lockset, 2-3/4in Backset, ANSI Strike, Grade 2, 626/US26D Satin Chrome

Standard & Hi-Security™ IC Core Models: Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®

• IC Core models: Tailpieces included, core not included.
• Split designs available

Features:

• Backset: 2-3/4"
• Latch #1134, Front: 1-1/8" x 2-1/4"; Throw: 1/2"; Stainless steel nose
• Levers: Solid cast Zamac; w/ 1/2" return (except 370 & 470)
• Roses: Thru-bolted, 3-1/4" dia., spring loaded 2-#10 thru-bolts
• Strike: #1145, ASA strike
• Door thickness: 1-5/8" to 1-7/8"; for 1-3/8" door use K1704 spacer
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys

Functions:

• Passage
• Privacy
• Patio
• Communicating
• Entry
• Exit
• Classroom
• Storeroom
• Institution
• Vestibule
• Exit
• Corridor
• Service Station Lock
• Hotel
• Dummy Trim Outside
• Full Dummy Trim
