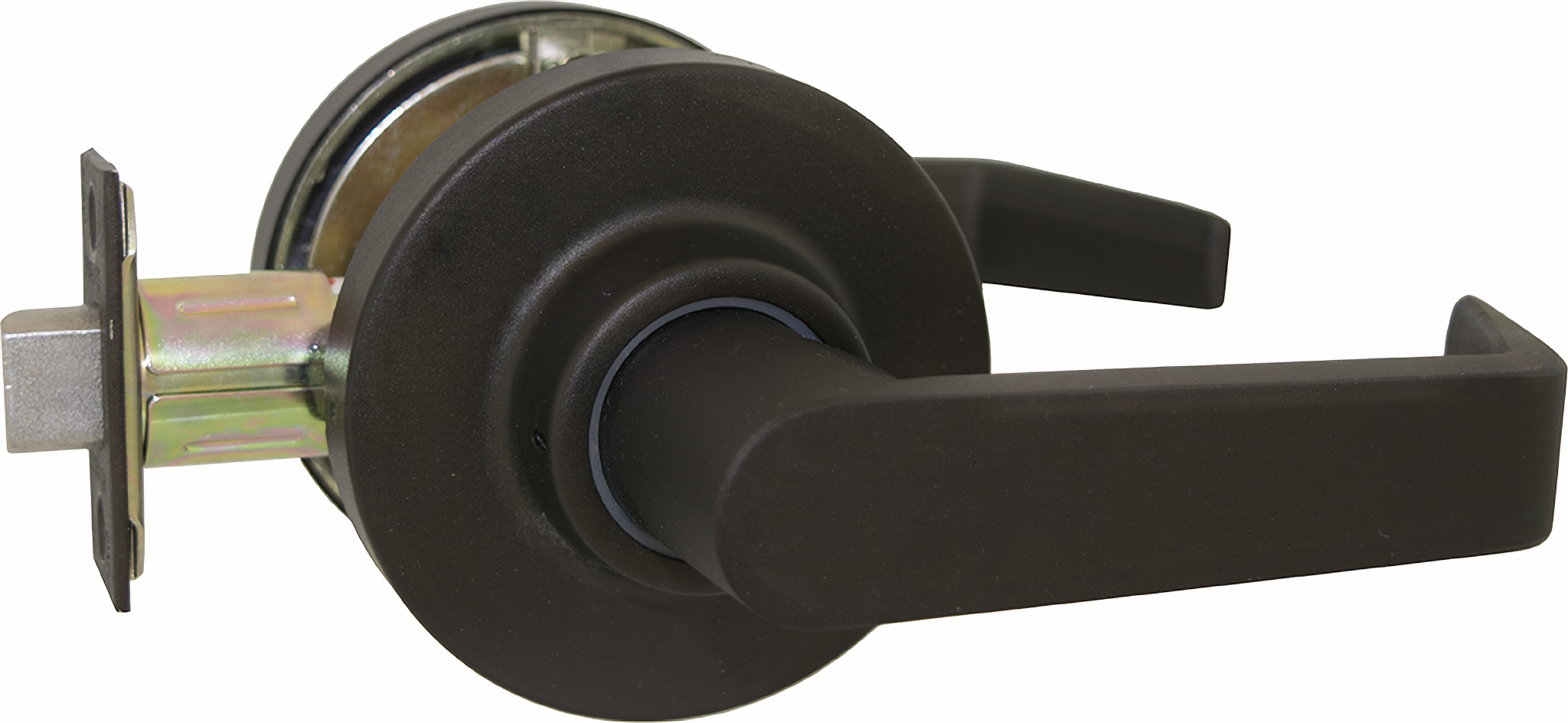

Marks Hardware 175N10B-3/4 Passage Clutched Lever Lockset, 2-3/4" Backset, Grade 2, Dark Bronze

Marks Hardware 175N10B-3/4 Passage Clutched Lever Lockset is designed for robust security and ease of use in various commercial applications. Featuring a 2-3/4 inch backset and constructed from solid cast Zamac, this lockset ensures durability while maintaining an elegant aesthetic with its dark bronze finish (613/US10B). This Grade 2 lockset is equipped with a deadlatch mechanism and includes a latch with a throw of 1/2 inch, making it highly reliable for everyday use. The thru-bolted roses have a substantial 3-1/4 inch diameter, and the spring-loaded design utilizes two #10 thru-bolts for added stability. The lockset accommodates door thicknesses ranging from 1-5/8 inches to 1-7/8 inches; a spacer is available for 1-3/8 inch doors. With ANSI strike certification and a fire rating of 120 minutes, this lockset meets rigorous safety standards, providing peace of mind for any commercial setting. The Marks "C" keyway allows for easy integration with interchangeable core models, compatible with various brands including Medeco® and Schlage®. Ideal for passage, privacy, and entry functions, the Marks Hardware 175N10B-3/4 Passage Clutched Lever Lockset offers a versatile and secure locking solution for your needs.

Passage Clutched Lever Lockset, 2-3/4in Backset, ANSI Strike, Grade 2, 613/US10B Dark Bronze

Standard & Hi-Security™ IC Core Models: Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®

• IC Core models: Tailpieces included, core not included.
• Split designs available

Features:

• Backset: 2-3/4"
• Latch #1134, Front: 1-1/8" x 2-1/4"; Throw: 1/2"; Stainless steel nose
• Levers: Solid cast Zamac; w/ 1/2" return (except 370 & 470)
• Roses: Thru-bolted, 3-1/4" dia., spring loaded 2-#10 thru-bolts
• Strike: #1145, ASA strike
• Door thickness: 1-5/8" to 1-7/8"; for 1-3/8" door use K1704 spacer
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys

Functions:

• Passage
• Privacy
• Patio
• Communicating
• Entry
• Exit
• Classroom
• Storeroom
• Institution
• Vestibule
• Exit
• Corridor
• Service Station Lock
• Hotel
• Dummy Trim Outside
• Full Dummy Trim
