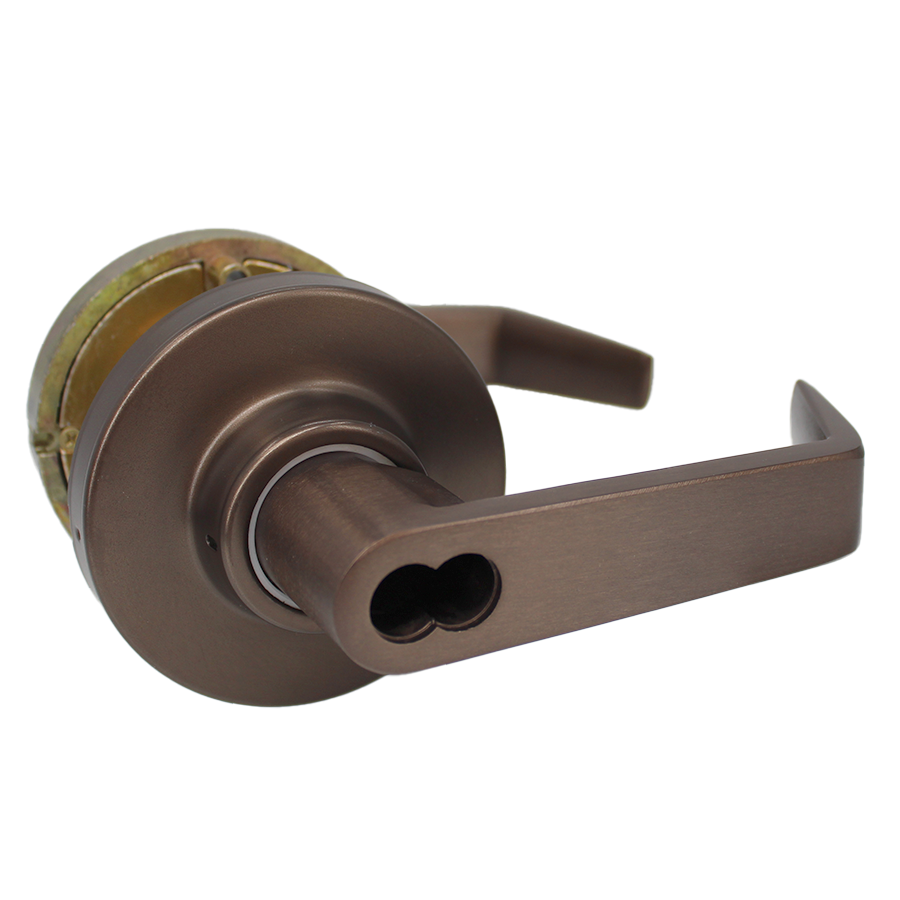

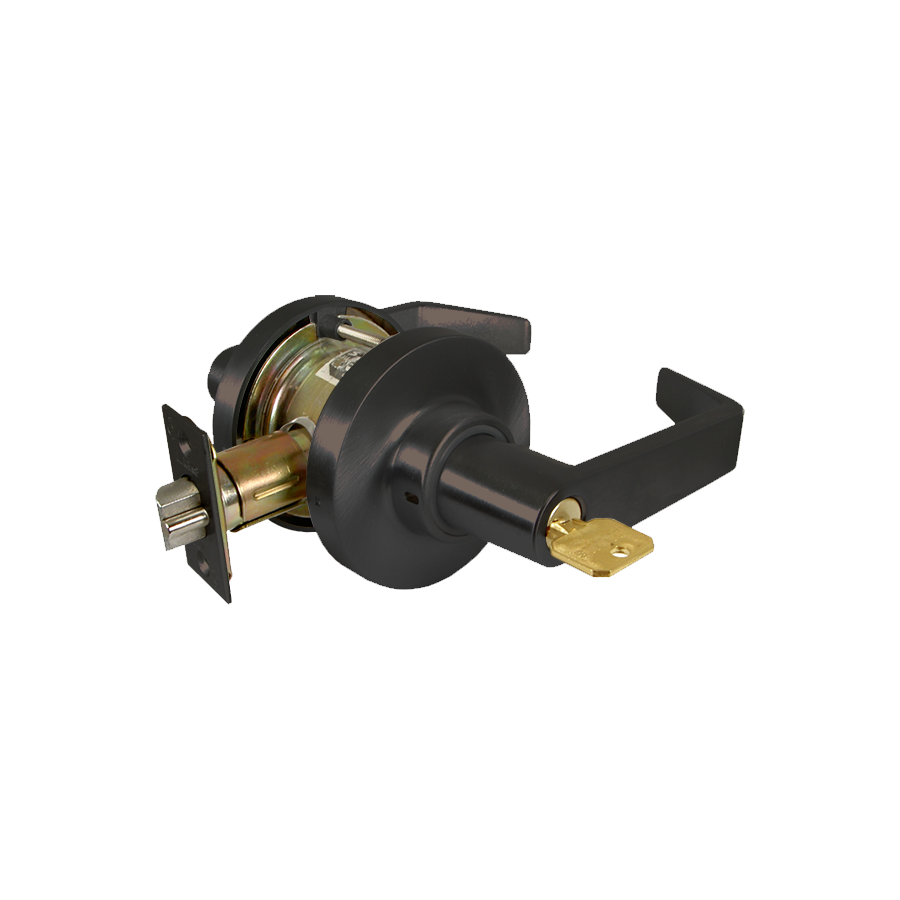

Marks Hardware 175RDW10B-3/4 SFIC Institution Clutched Lever Lockset, Small Format IC, Grade 2, Dark Bronze

Marks Hardware 175RDW10B-3/4 SFIC is a robust institution clutched lever lockset designed for high-security applications. This small format interchangeable core (IC) lockset features a 2-3/4-inch backset, ideal for various commercial environments. Constructed with solid cast Zamac levers and a durable stainless steel nose latch, this lockset combines both strength and reliability. The latch, identified as #1134, has a throw of 1/2 inch, providing secure locking functionality. The Marks Hardware 175RDW10B-3/4 SFIC is engineered to accommodate door thicknesses ranging from 1-5/8 inches to 1-7/8 inches, ensuring a versatile fit for a variety of installations. It includes a 3-1/4 inch diameter rose that is spring-loaded for easy operation and is secured with two #10 thru-bolts. The lockset supports multiple functions, including passage, privacy, and institutional uses, making it suitable for diverse applications. Certified to A156.2 and ANSI standards, this Grade 2 lockset is also UL listed for a 120-minute fire rating, providing peace of mind in safety-critical environments. Finished in a dark oxidized satin bronze (613/US10B), it not only offers superior performance but also complements various architectural styles. Choose Marks Hardware for reliability and security in your locking solutions.

SFIC - Institution Clutched Lever Lockset, Small Format IC, Less Core, 2-3/4in Backset, ANSI Strike, Grade 2, 613/US10B Dark Bronze

Standard & Hi-Security™ IC Core Models: Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®

• IC Core models: Tailpieces included, core not included.
• Split designs available

Features:

• Backset: 2-3/4"
• Latch #1134, Front: 1-1/8" x 2-1/4"; Throw: 1/2"; Stainless steel nose
• Levers: Solid cast Zamac; w/ 1/2" return (except 370 & 470)
• Roses: Thru-bolted, 3-1/4" dia., spring loaded 2-#10 thru-bolts
• Strike: #1145, ASA strike
• Door thickness: 1-5/8" to 1-7/8"; for 1-3/8" door use K1704 spacer
• Cylinder: Marks "C" keyway, 6 pin w/ 2 keys

Functions:

• Passage
• Privacy
• Patio
• Communicating
• Entry
• Exit
• Classroom
• Storeroom
• Institution
• Vestibule
• Exit
• Corridor
• Service Station Lock
• Hotel
• Dummy Trim Outside
• Full Dummy Trim
